Configuring Device Settings

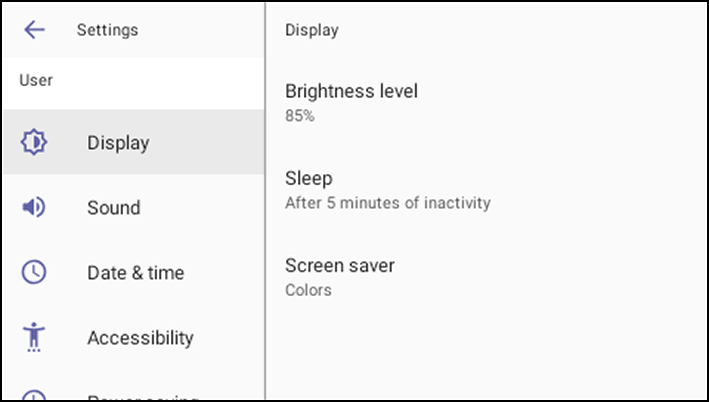

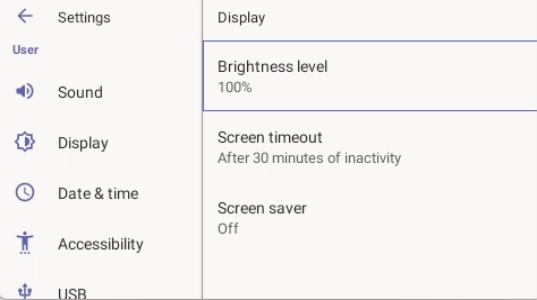

Opens the ‘Display’ screen [Brightness level].

The phone's screen supports different brightness levels. Choose the level that suits your requirements.

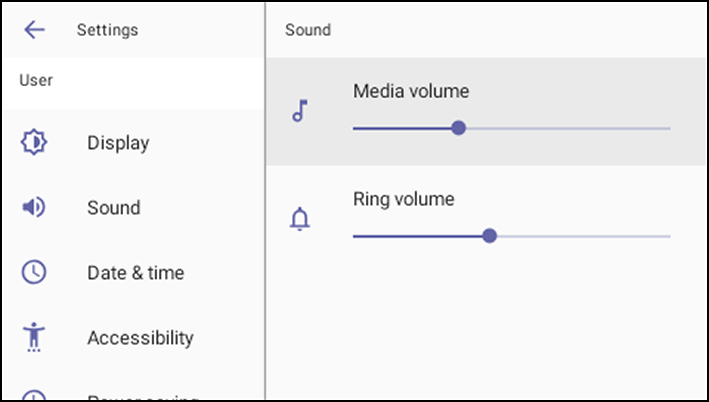

Allows you to customize phone volume for a friendlier user experience.
Ring volume at n%

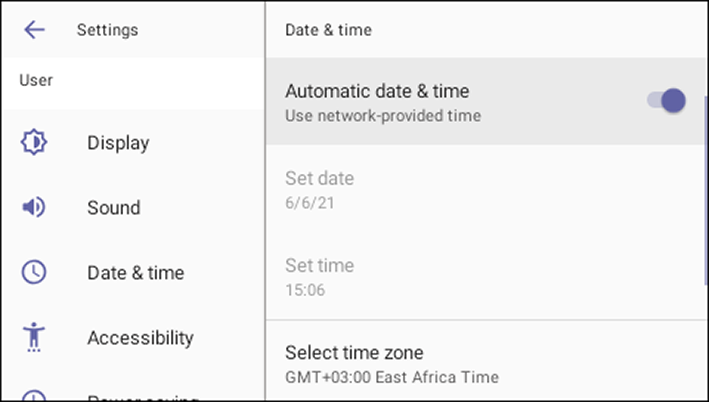

Date and time are automatically retrieved from the deployed Network Time Protocol (NTP) server.

Use 24-hour format [Allows you to select the Time format]

Also supported is a simplified version of NTP called Simple Network Time Protocol (SNTP). Both can be used to synchronize device clocks. SNTP is typically used if full implementation of NTP is not required.

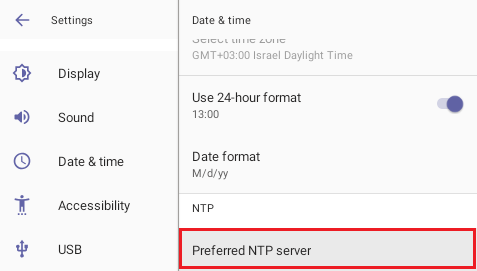

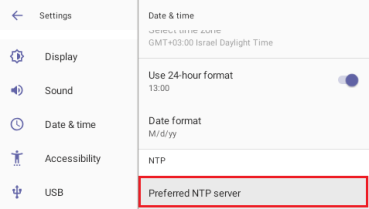

Admins can use this parameter to manually define the NTP server, to comply with enterprise security requirements if those requirements preclude using DHCP Option 42. Manual configuration takes precedence over DHCP Option 42 and the time servers. Two ways to manually define the NTP server are available:

See also under Signing In .

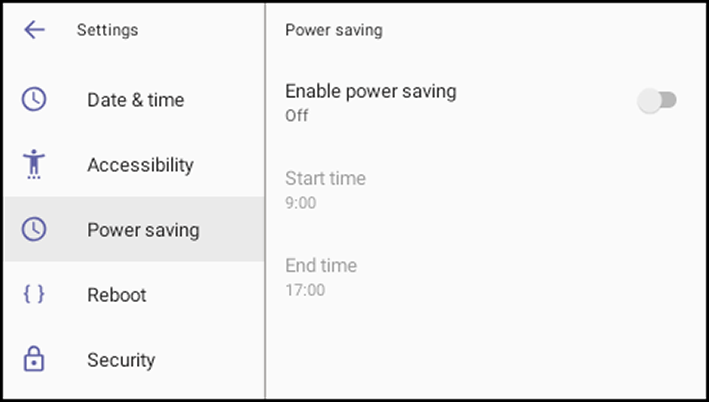

Allows users to contribute to power saving in the enterprise.

Enable power saving

Start time [The device consumes minimal energy before the user arrives at the office]

End time [The device consumes minimal energy after the user leaves the office]

Enables users to reboot the device.

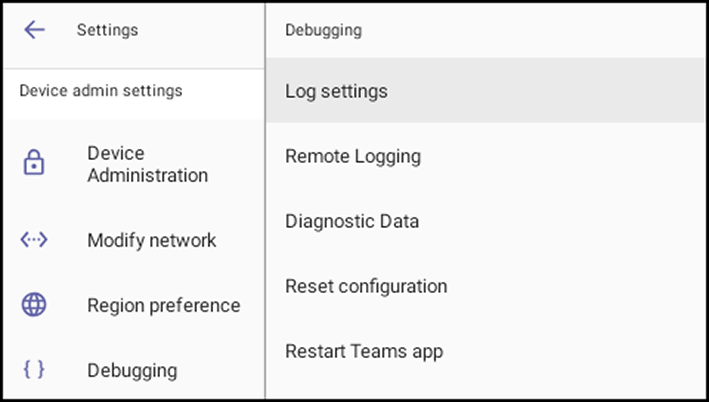

Log in as Administrator for more debugging settings to be available.

Helps secure the enterprise telephony network against breaches.

Screen lock [The phone automatically locks after a configured period to secure it against unwanted use. If left unattended for 10 minutes (default), it automatically locks and is inaccessible to anyone who doesn't know its lock code.]

Make passwords available

See 'Lock Screen & PIN' under Configuring Teams Application Settings

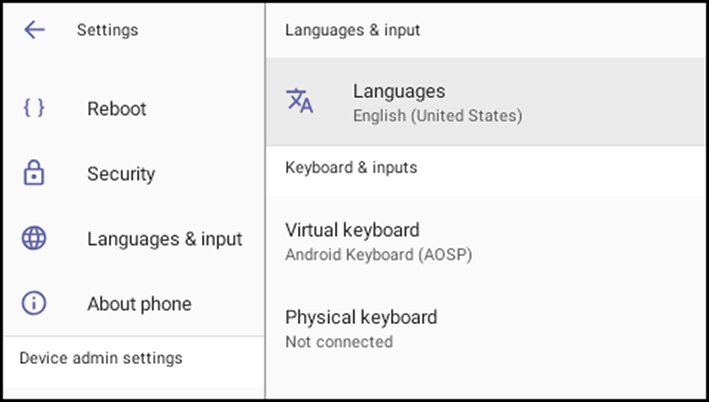

Allows users to customize inputting to suit personal requirements.

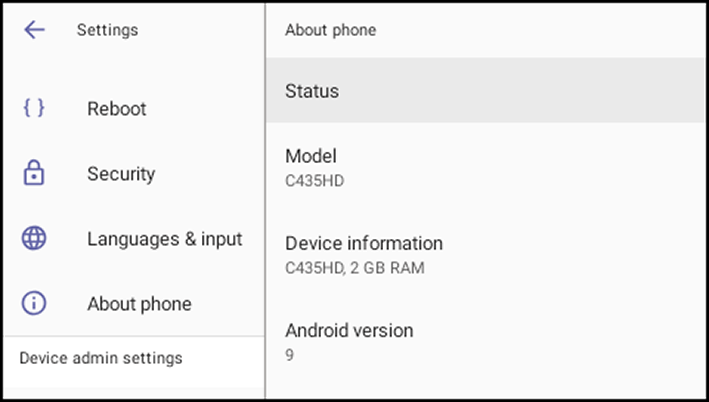

Provides users with device information.

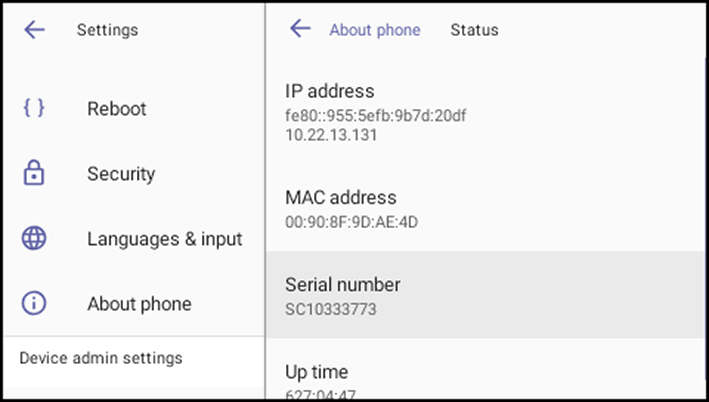

To determine the device’s IP address, select the ‘Status’ option.

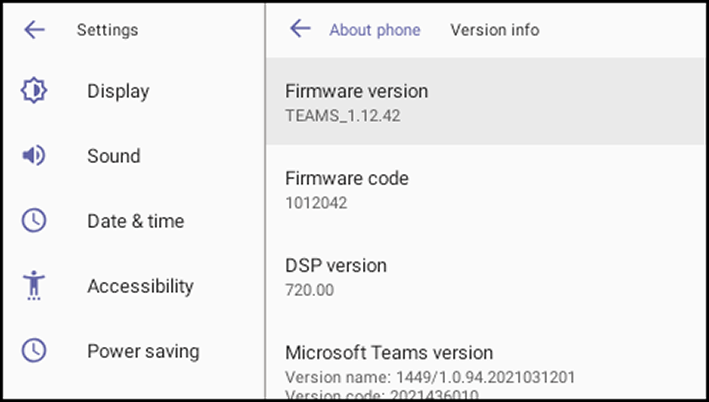

To get information about the version, select ‘Version info’.

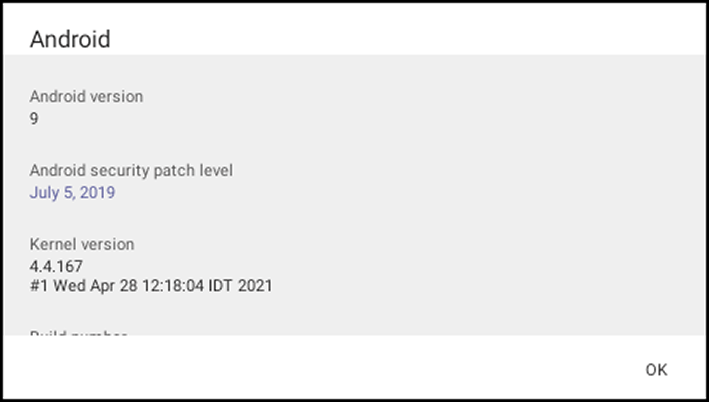

To get information about the Android version, select ‘Android version’.

Allows the user to log in as Administrator, necessary for some of the debugging options. It is password protected. Default password: 1234 (or 1111 in early versions). After logging in as an Administrator, the user can log out | change password.

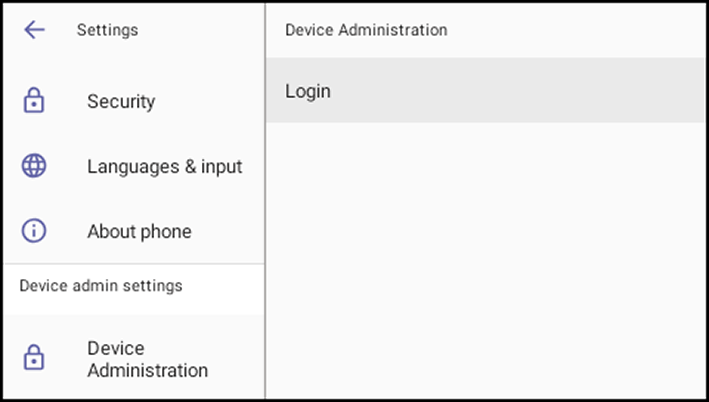

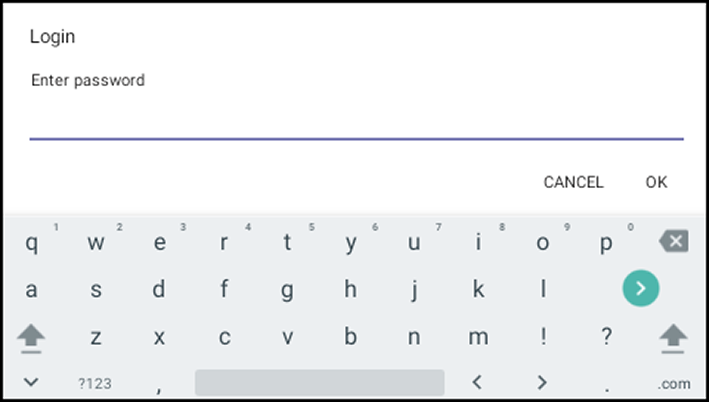

Select Login and then in the Login screen that opens, select the 'Enter password' field and use the virtual keyboard to enter the password (1234 or 1111). Note that the virtual keyboard pops up for all ‘Settings’ fields to allow inputting characters and / or numbers. Two virtual keyboard types can be displayed: Numeric or QWERTY.

The virtual keyboard is also displayed when the network administrator needs to enter an IP address to debug, or when they need to enter their PIN lock for the security tab.

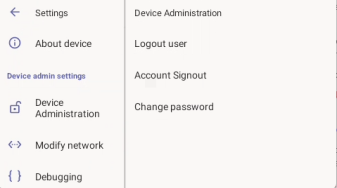

After logging in, scroll down in the Settings screen to the section 'Device Administration'.

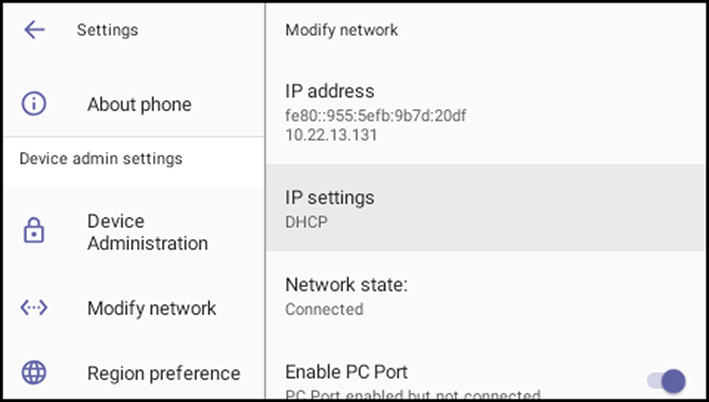

Enables the Admin user to determine network information and to modify network settings.

IP Address [Read Only]

IP Settings [DHCP or Static IP]

Network state [Read Only]

Enable PC port

Enable PC port mirror

Proxy

802.1x Settings

VLAN Settings. Allows you to configure the VLAN mode Manual, CDP only or LLDP only.

Note that LLDP switch information is retrieved (for location purposes) when parameter network/lan/lldp/enabled=1 (even when VLAN is retrieved from CDP or VLAN is disabled or VLAN is Manual). In versions prior to 1.19, if network VLAN mode ‘network/lan/vlan/mode’ was set to LLDP, the phone retrieved the VLAN and LLDP switch information (for location purposes) from LLDP.

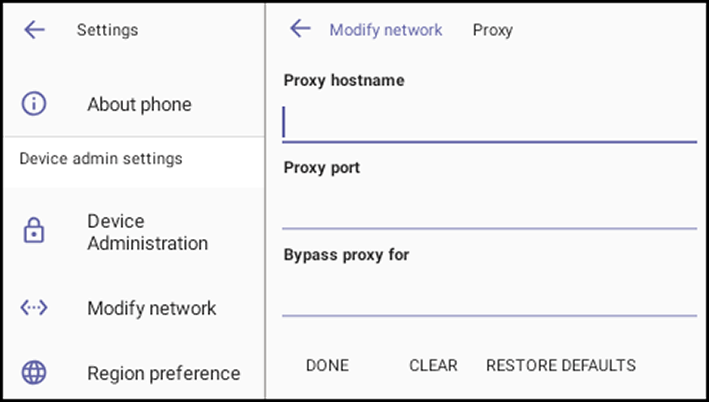

The phone can be configured with an HTTP Proxy server by an Admin user in two ways:

The proxy setting is provided in a Proxy Auto-Configuration (PAC) file that contains a set of rules coded in JavaScript which allows a web browser to determine whether to send web traffic directly to the Internet or to be sent via a proxy server. PAC files control how the phone handles HTTP, HTTPS and FTP traffic.

Example of a basic PAC file:

function FindProxyForURL(url, host)

{

return "PROXY 10.13.2.40:3128";

}

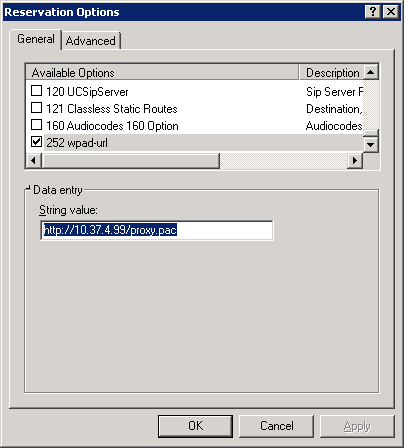

If the enterprise features a proxy server that requires user authentication, the network administrator can use the PAC file and DHCP Option 252 to configure it. Alternatively, the administrator can configure it using the following parameters:

http_client/fwd_proxy/ip=0.0.0.0

http_client/fwd_proxy/password=

http_client/fwd_proxy/port=8080

http_client/fwd_proxy/username=

802.1x Authentication is the IEEE Standard for Port-based Network Access Control (PNAC). See https://1.ieee802.org/security/802-1x/ for more information.

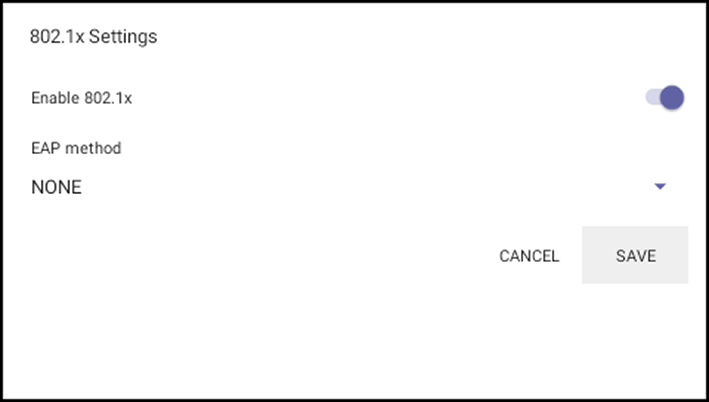

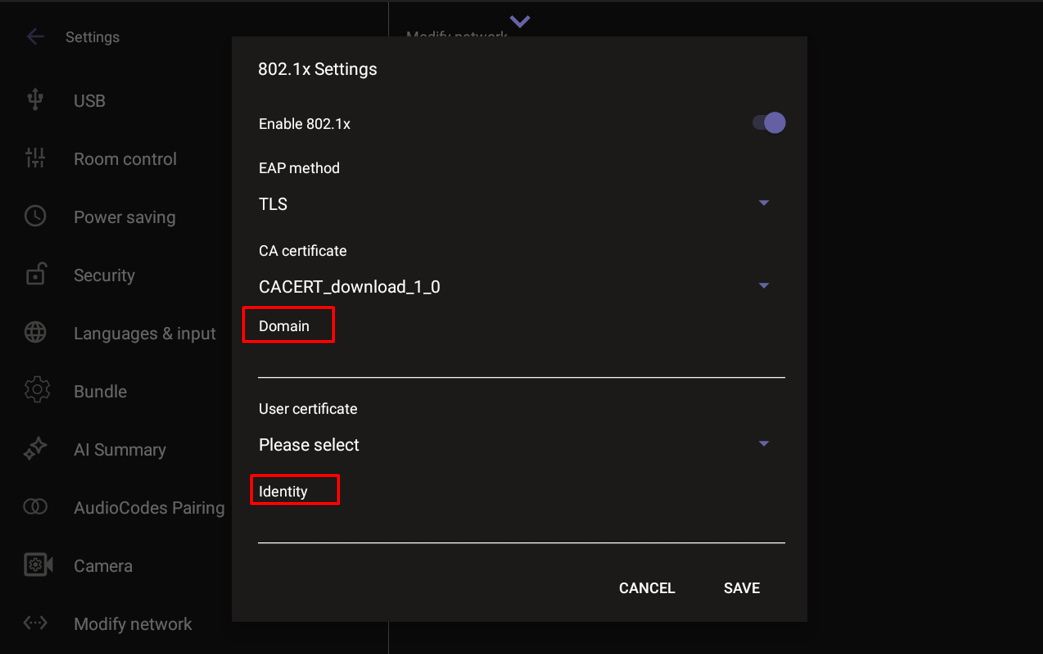

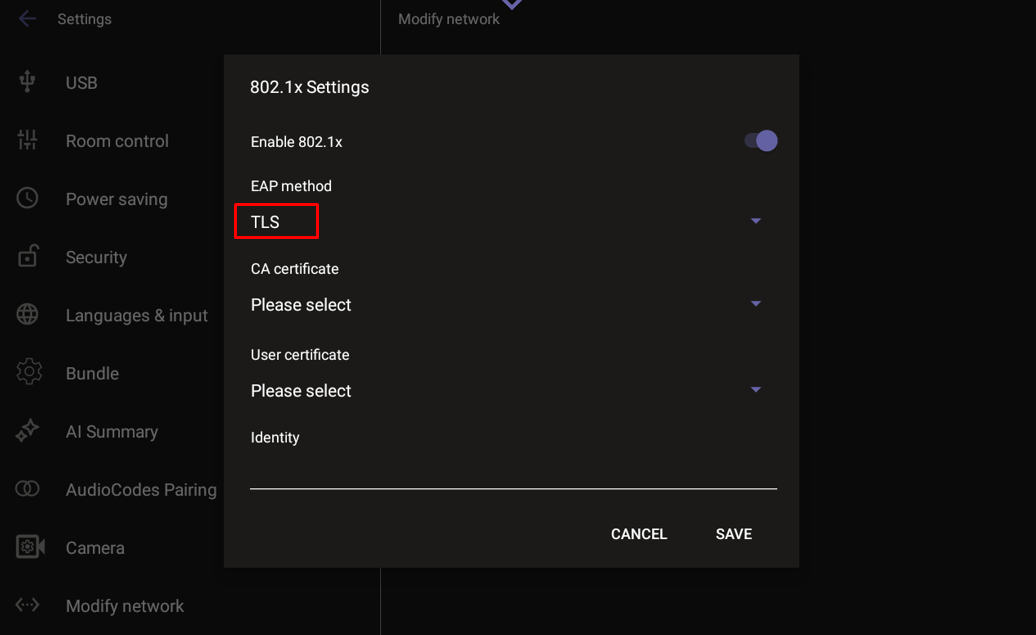

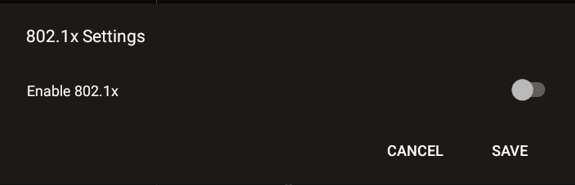

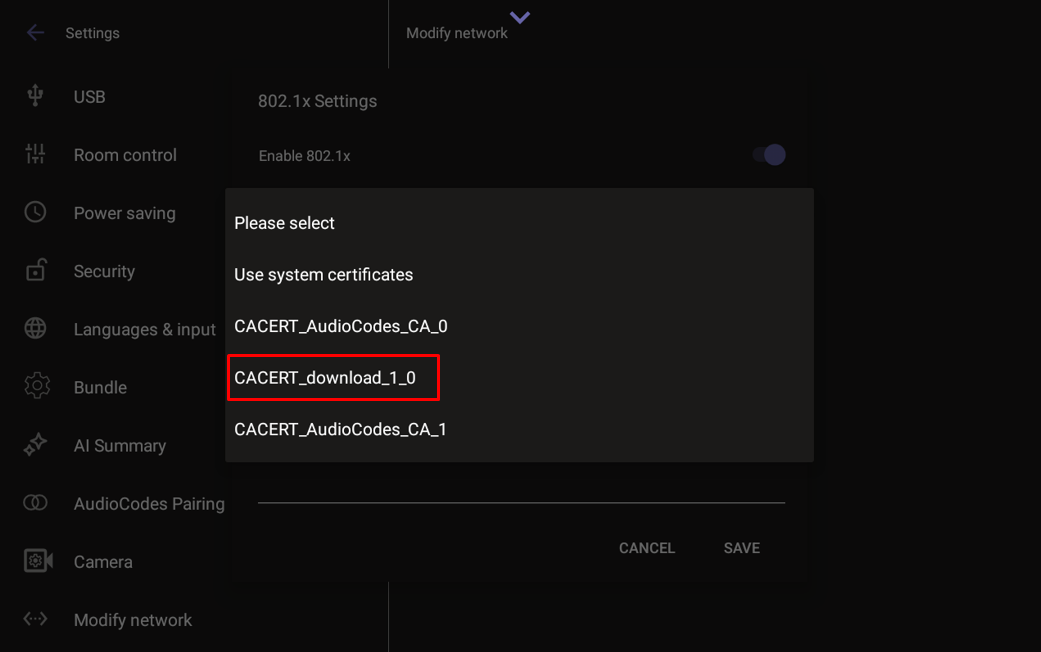

To configure an 802.1X Authentication method:

The 802.1x settings are not only available via the phone screen, they're also supported in the device Configuration File, enabling network administrator's to perform pre-staging configuration for 802.1x. The 802.1x settings available in the Configuration File are:

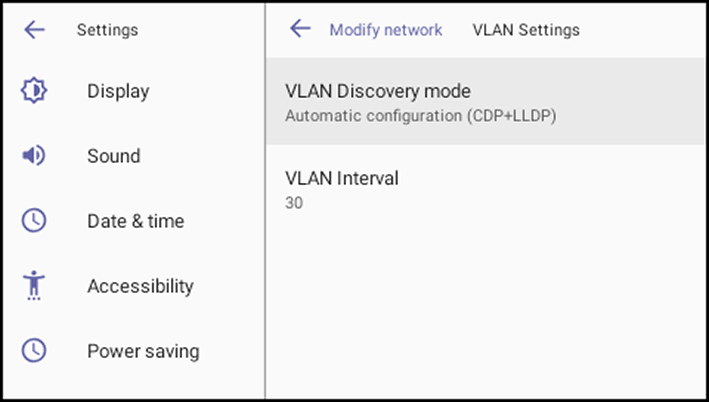

Select the menu option VLAN Settings.

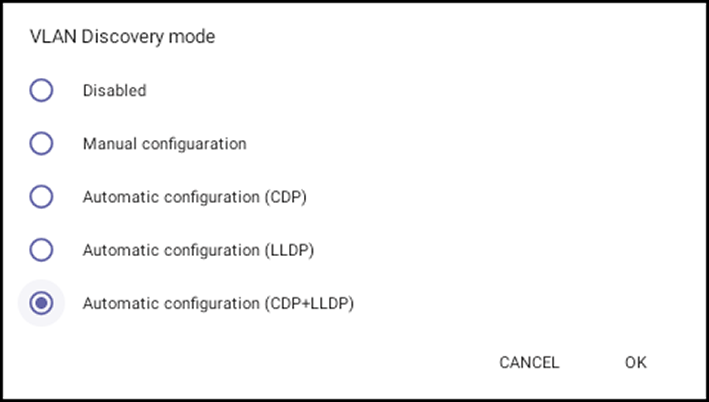

Select VLAN Discovery mode.

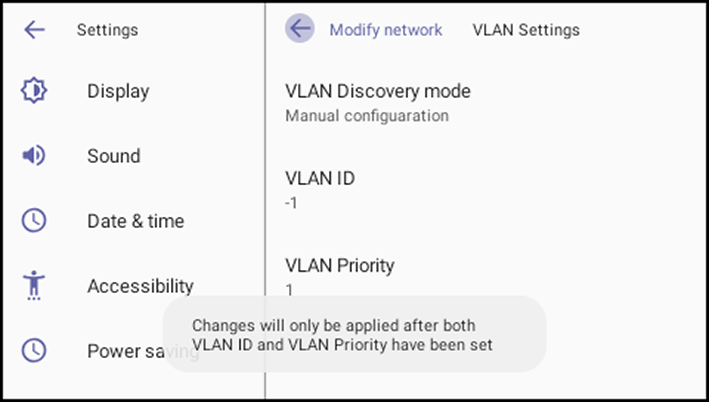

Select the mode you require and then select OK. If you select Manual configuration, this screen opens:

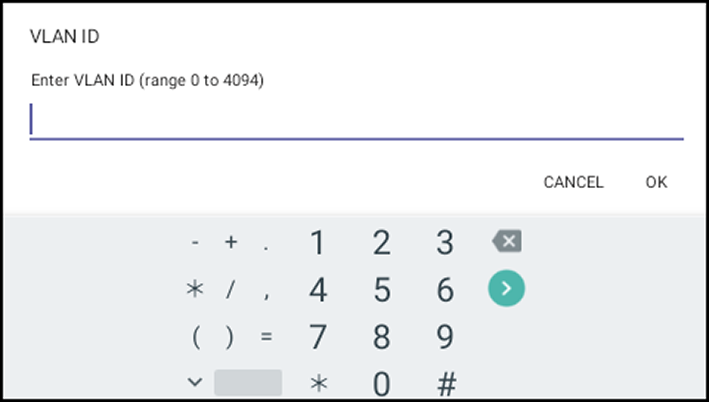

Select VLAN ID.

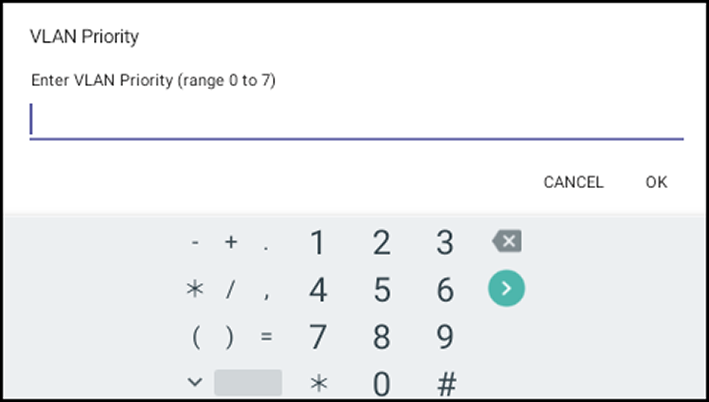

Select VLAN Priority.
