Load DIDs to Managed Service

The Manage SBC Prefixes page lets you load DIDs to your managed service. DIDs can be configured manually or can be imported from a *.csv or text file. You can create the file using any text-based editor such as Notepad or Microsoft Excel. A tag can be applied to each entry to associate the prefixes to a specific SBC site location (SIP Connection). The dial plan rule does not have a unique name and instead inherits the name of the configured dial plan e.g. 'CustDialPlan'. In the CLI script, the shortname of the service is used to match the prefix to the customer tenant. In the dial plan configured on the SBC device, the dial plan rule name inherits this shortname. Once imported to Live Platform , the uploaded numbers are synchronized to the SBC device connected to the Service Provider's UMP-365 device.

See also Troubleshooting Loading Dial Plans and Customer Operator Prefix Management.

➢

To load numbers:

1.

In the Live Platform portal Services page, select the relevant service, from the Direct Routing drop-down, select Edit Service, and then in the Service portal Navigation pane, select Configuration > SIP Connections.

2.

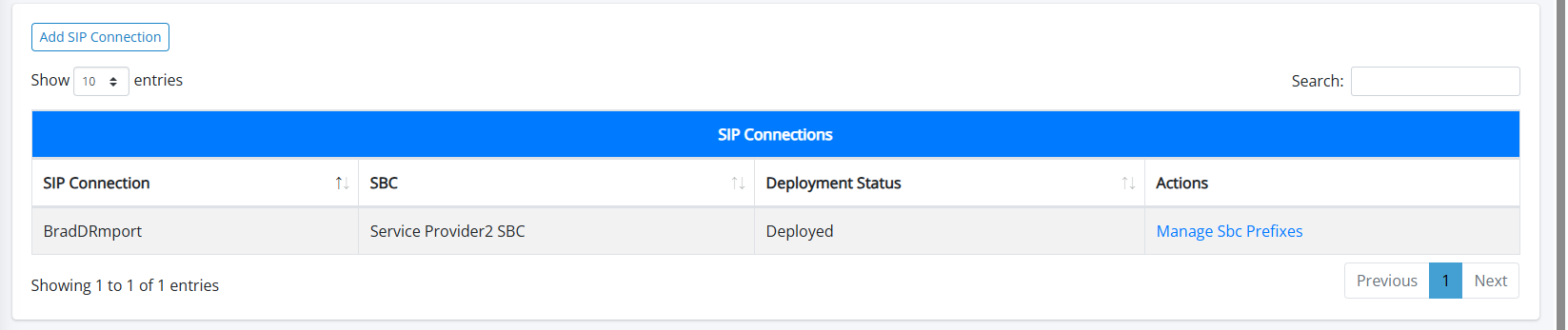

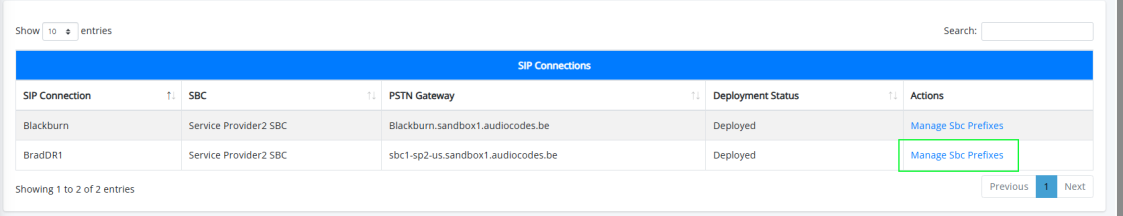

Select the SIP Connection for which you wish to configure SBC prefixes, and then click Manage SBC Prefixes.

3.

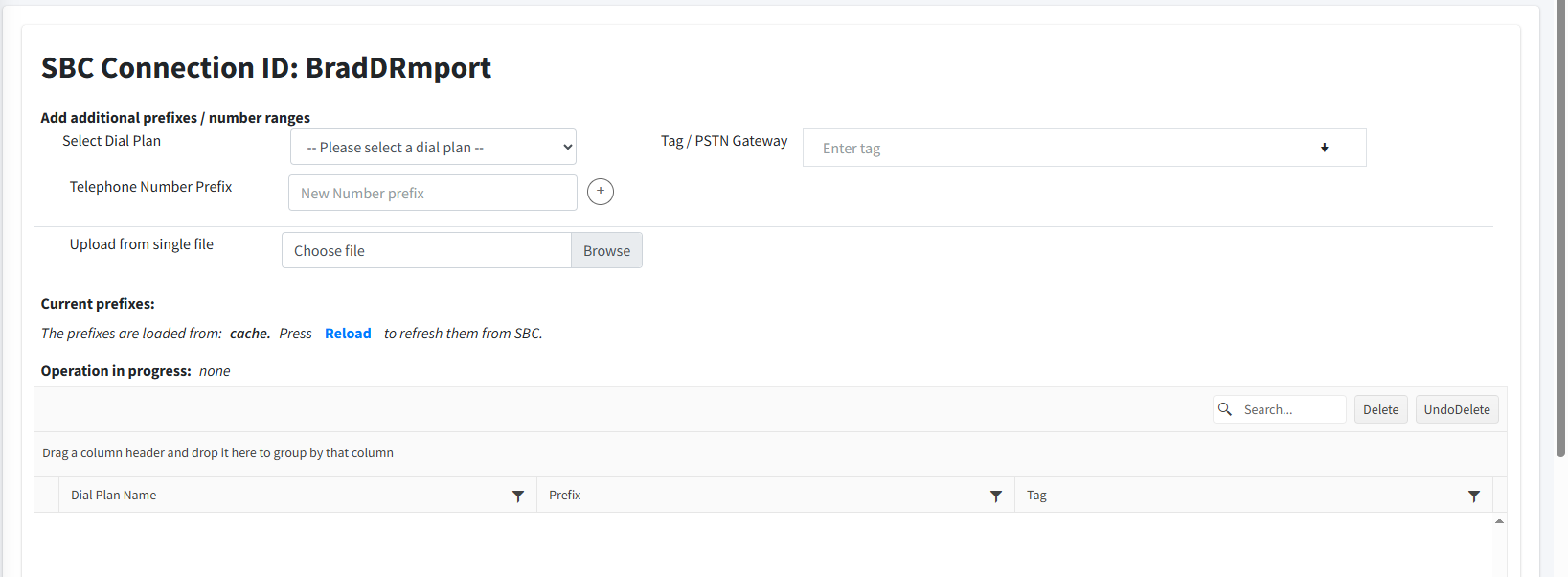

From the Select Dial Plan drop-down, select the required dial plan. The default dial plans for the Direct Routing service are as follows:

●

CustDialPlan: Default Dialplan for the Direct Routing customers

●

RegisteredUsers: Dialplan used for managing IP-PBX users when an IP-PBX is configured in the Onboarding Wizard.

●

PBXDomains: Dialplan used for managing PBX domain customers

4.

In the Tag/PSTN Gateway field, from the drop-down, choose the dial plan tag representing the sub domain of the customer. The list includes the Online PSTN Gateway of the Service Provider (Derived Trunk FQDN) and the PSTN Gateway values for all SIP Connections created under the customer tenant using the Automatic DNS and Sub domain script option in the Onboarding wizard. The tag value is composed as <SIP_Connection_Name>.<Service Provider_Domain_Name>. For example if the SIP Connection name is 'site1' and the domain name (FQDN) of the Service Provider SBC is 'spsbcus.audiocodes.be' then the dial plan tag is 'site1.spsbcus.audiocodes.be'. If this script option was not used, then the tag value is composed as <Customer_Shortname>.<Service Provider_Domain_Name>. For example, if the customer short name is 'enterprisetrunk' and the domain name of the Service Provider SBC is 'spsbcus.audiocodes.be', then the dial plan tag is 'enterprisetrunk.spsbcus.audiocodes.be'.

This tag may be one of the following values:

●

The derived Trunk FQDN of the SBC device (the Online PSTN Gateway of the Service Provider), the custom PSTN Gateway tag defined for the SIP Connection or the matching characteristics for routing and outbound manipulation.

●

The Tenant's Azure subscription ID.

If your provider or reseller has already loaded numbers to your tenant, they are displayed in the Dial plan table. You cannot remove these numbers.

5.

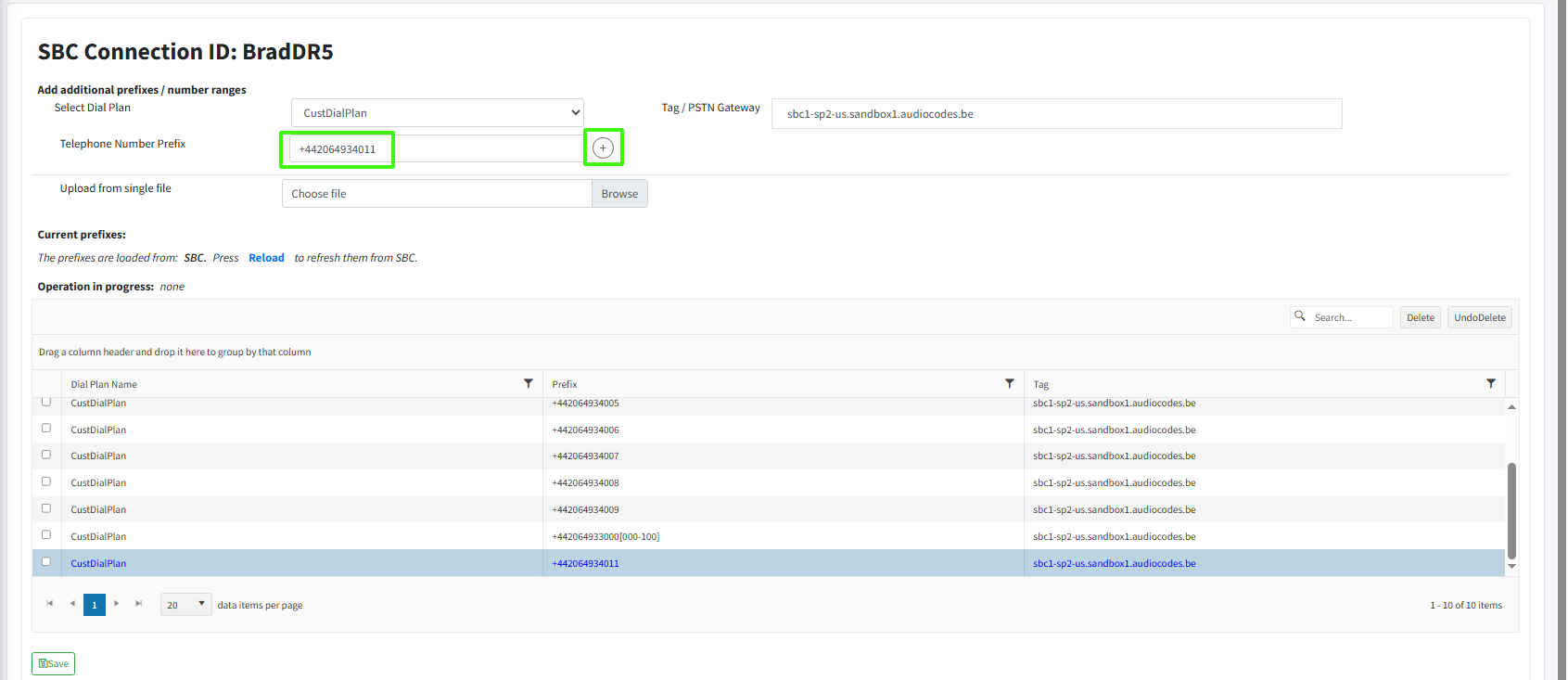

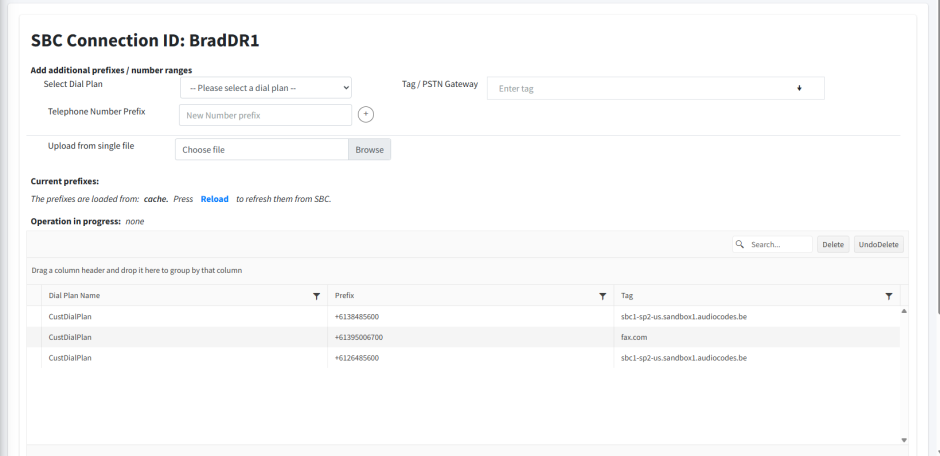

In the Telephone Number Prefix field, add individual E.164 telephone numbers, calling prefixes or ranges , prefixes or ranges. Add the entry and then click .

Ranges should be configured in the following format: +613987056[11-14]

Prefixes should be configured as follows: 9304

All full numbers should be configured in E.164 format with the following validation rules:

●

A + sign.

●

Country calling code (international).

●

Local area code.

●

Local telephone number or subscriber number.

The number has the following structure: [+][country code][area code][subscriber number].

Example United States Telephone number: +12127881500

●

Country code: 1

●

Area code: 212

●

Subscriber number: 7881500

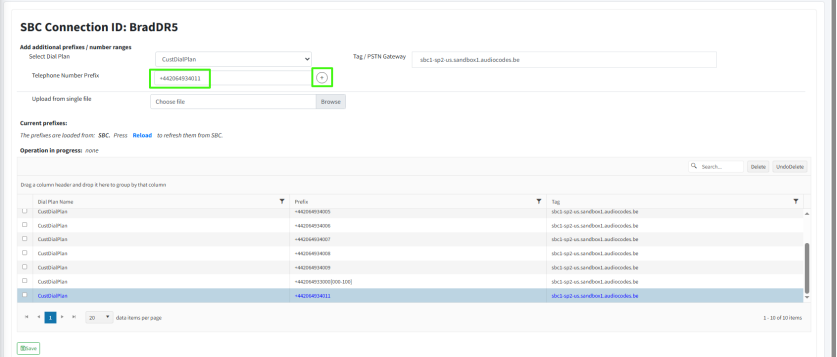

The newly added number is displayed in blue in the dial plan table.

6.

Browse to import a csv or text file containing the list of numbers in the format shown below. Ensure that the there are no additional spaces at the end of each entry and that there are no empty lines, see Troubleshooting Loading Dial Plans for example parsing errors. Its recommended to open the file in a text editor to verify that the syntax is correct.

For number prefixes, configure as follows:

For number ranges, configure as follows:

where:

●

DialPlanName: Name of the dial plan. This name must appear for each entry in the dial plan.

●

Prefix: Source or destination number in E.164 format with or without range or calling prefix

●

Tag: The derived Trunk FQDN of the SBC device configured as the Online PSTN Gateway of the Service Provider, the tag configured for the SIP Connection or the matching characteristics for routing and outbound manipulation. See Managing SBC Devices to verify the relevant derived Trunk FQDN tag of your Service Provider SBC device.

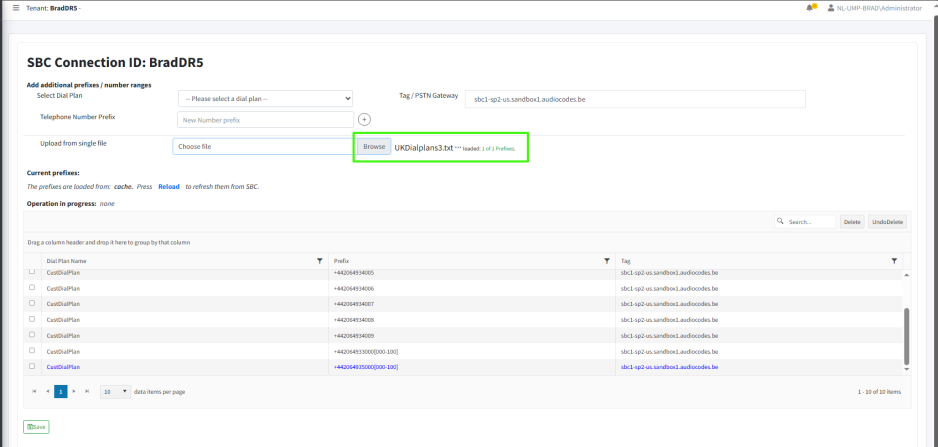

The name of the loaded file and message indicating the number of successfully loaded prefixes is displayed. In the example below, a single number range has been loaded with success status (1 of 1 Prefixes).The newly added numbers are displayed in blue in the dial plan table.

7.

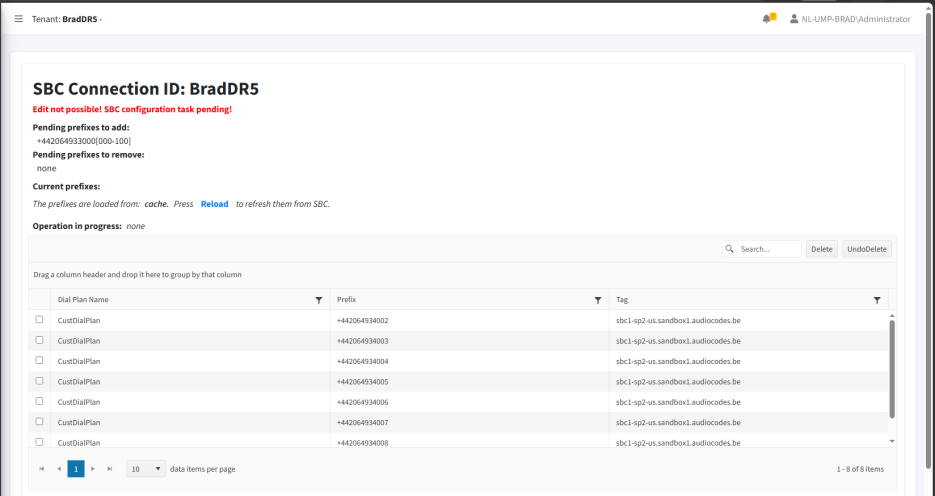

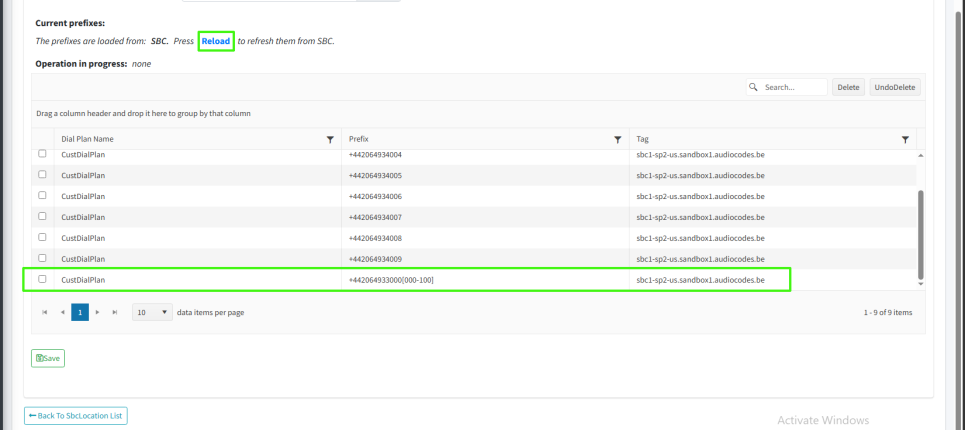

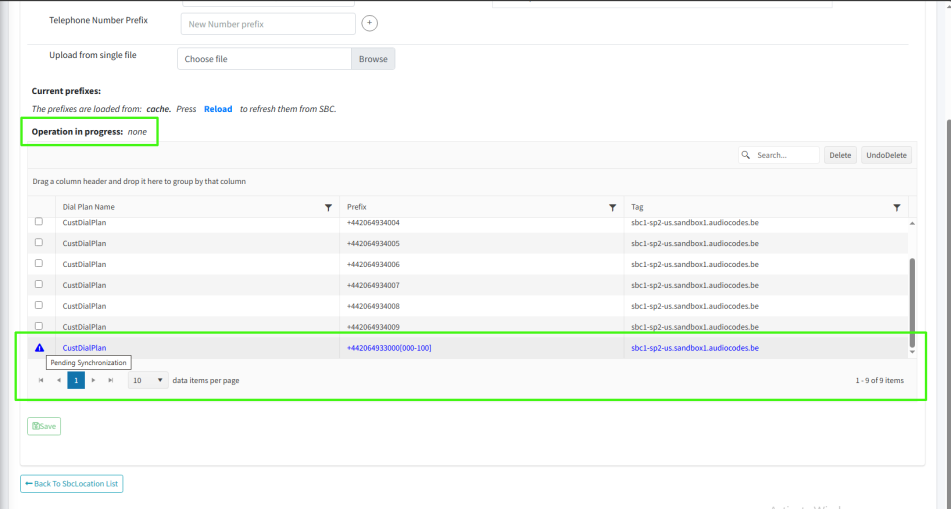

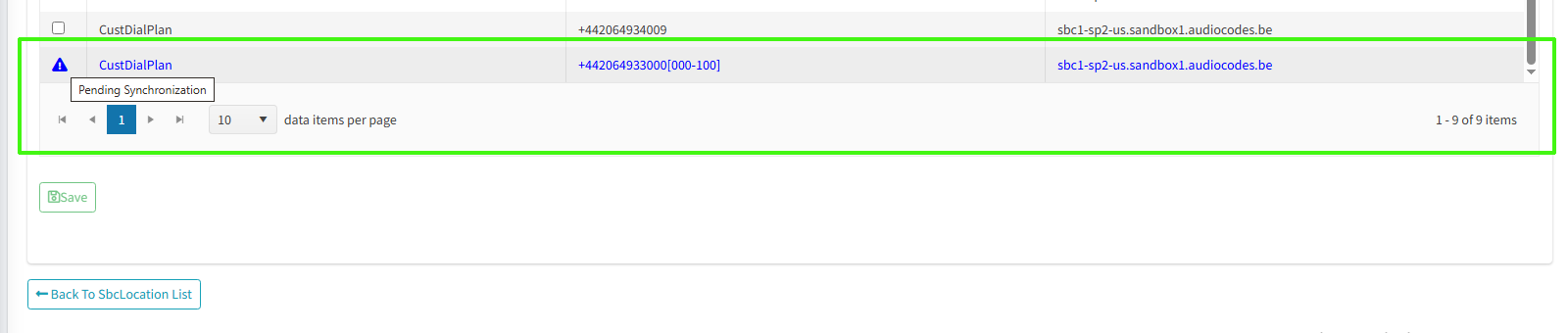

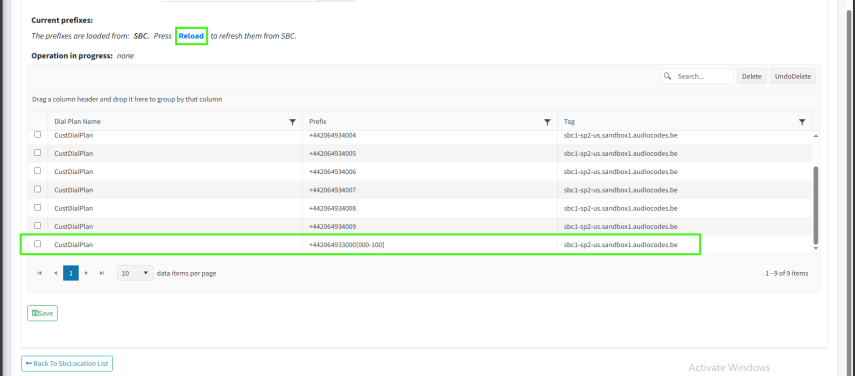

Click Save. The page is closed and the numbers are loaded to the SBC device. When you reopen the page, you see that the numbers that are displayed in blue are Pending Synchronization to the SBC device. Click Reload to refresh the page to view the numbers in the table after they have been synchronized with the SBC.
