Troubleshooting Loading Dial Plans

This section shows example parsing errors that may be generated when importing dial plan files to Live Platform.

■

The following errors are displayed when the " Tag" value is missing from the header.

dialPlanName,prefix
CustDialPlan,+442064935000[000-100],sbc1-sp2-us.sandbox1.audiocodes.be

Click OK to close the screen. The information message "not loaded" is displayed adjacent to the Dial plan name.

■

The following error is displayed when the header items include square brackets []. In this case, all prefixes are successfully loaded.

[dialPlanName],[prefix],[tag]
CustDialPlan,+442064935000[000-100],sbc1-sp2-us.sandbox1.audiocodes.be

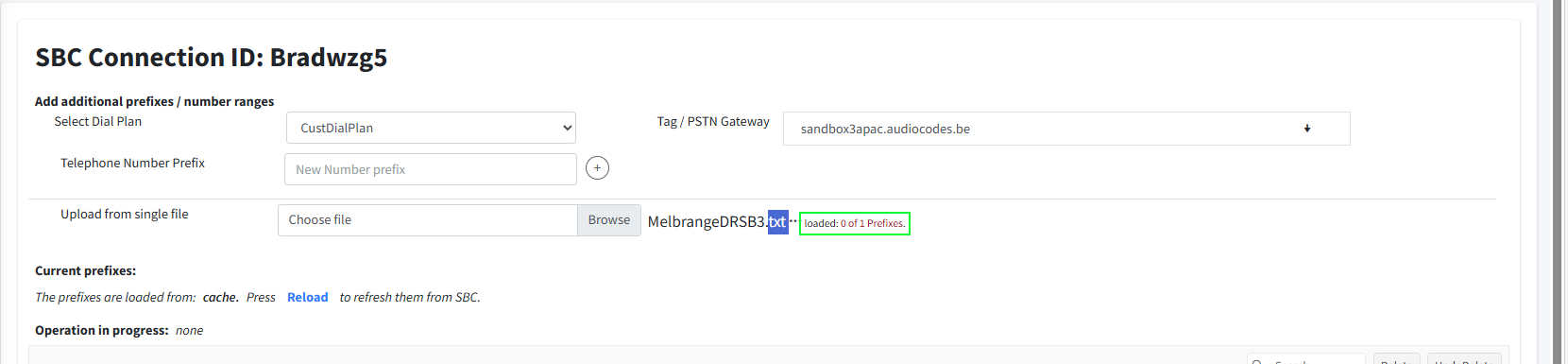

Click OK to close the screen. The information message "loaded 1 of 1 Prefixes" is displayed adjacent to the Dial plan name.

■

The following error is displayed when there is an empty line in the file.

Click OK to close the screen. The information message "loaded 1 of 1 Prefixes" is displayed adjacent to the Dial plan name.

■

Click the Back to SbcLocation List to cancel the operation and reload numbers.
