Configuring System Settings

The System Settings page enables admin to configure devices according to enterprise requirements. Settings under some tabs also include placeholders so that when you generate a template, the settings values will be applied to the template. Default placeholder values can be viewed in the Default Placeholders Values page.

➢ To configure system settings:

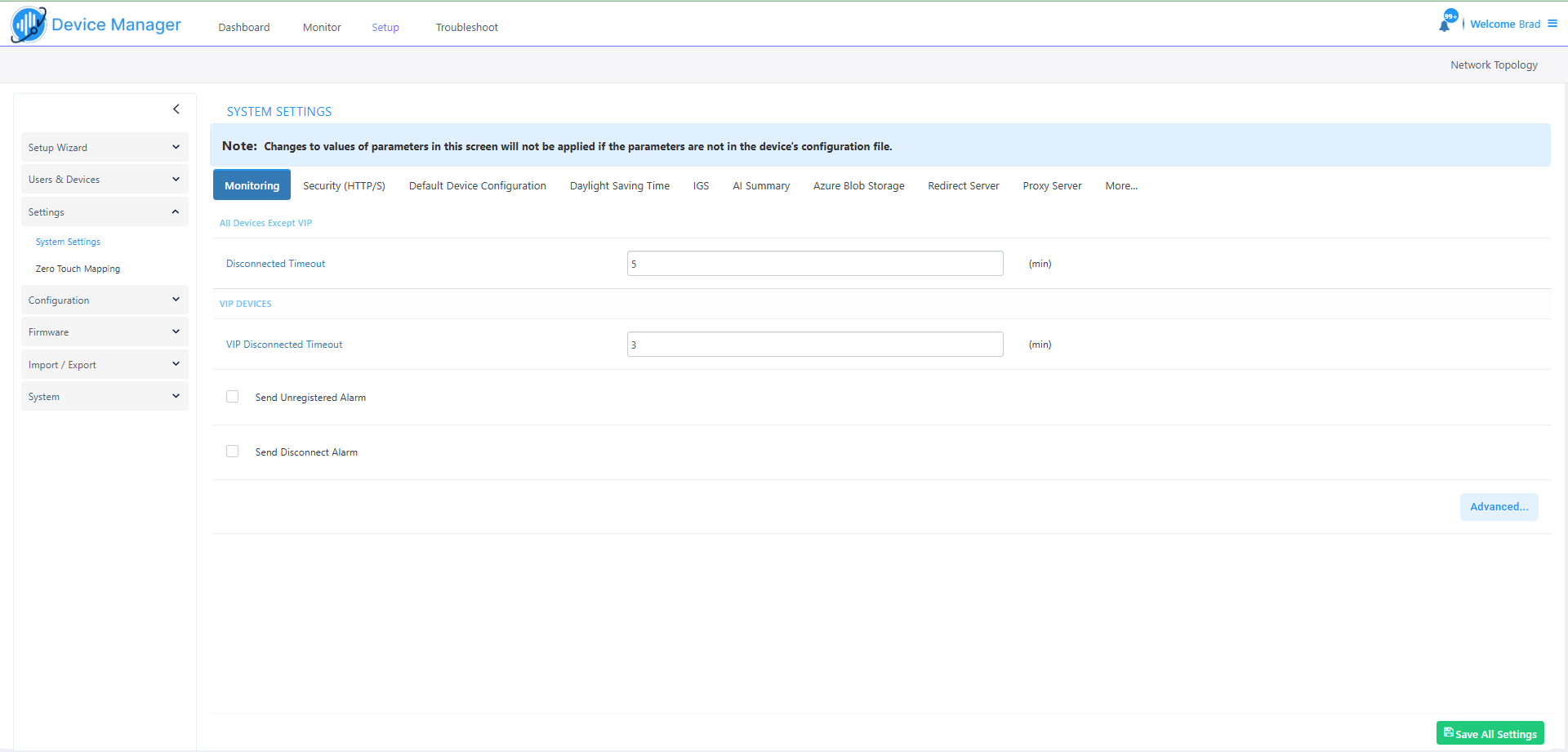

1. Open the System Settings page (Setup > Settings > System Settings).

2. Use the table below as reference; tabs in the page are (L-R): Monitoring, Security (HTTP/S), Default Device Configuration, Daylight Saving Time, IGS and More...
● The IGS tab applies only to enterprises whose environments are non Skype for Business. All other tabs in the screen apply to both Skype for Business and non Skype for Business environments.
● Teams devices function flawlessly behind a NAT in all scenarios; ignore the IGS tab if you're using Teams devices.
● Enable IGS if
✔ you're using non-Teams devices; if using the 405HD phone, you may require a firmware upgrade
✔ devices are located behind a NAT or Device Manager is unable to establish communication with them
● 420HD, 430HD and 440HD phones are incompatible when behind a NAT.

Tab | Parameter

Description

Monitoring

Disconnected Timeout

Determines how long, in minutes, a device's status will be indicated as 'Disconnected' if not reported otherwise. Default: 20 minutes. The phone reports its status to the server every hour. If it does not report its status before 'Disconnect Timeout' lapses, i.e., if the parameter is left at its default and two hours pass without a status report, the status will change from Registered to Disconnected and the device's 'Status' column in the Devices Status screen will be red-coded.

Send KEEP-ALIVE Every

[Only displayed after clicking Advanced] Determines how often, in minutes, a KEEP-ALIVE message is sent from the device.

VIP Disconnected Timeout

Determines how long, in minutes, a VIP device's status will be indicated as 'Disconnected' if not reported otherwise. An alarm can be sent to admin if the timeout is exceeded. Default: 5 minutes. A VIP device is typically a Common Area Phone (CAP) located in the lobby of an enterprise, or a conference phone located in an enterprise's meeting rooms. It's important for a VIP device to be connected, hence the default timeout of 5 minutes compared to the default of 20 minutes for a non VIP device.

VIP Send KEEP-ALIVE Every

[Only displayed after clicking Advanced] Determines how often, in minutes, a KEEP-ALIVE message is sent from the VIP device.

Send Unregistered alarm

Select this option for an alarm to be sent when VIP device status changes to 'Unregistered'.

Send Disconnect Alarm

Select this option for an alarm to be sent when VIP device status changes to 'Disconnected'. It's important for a VIP device to be connected, hence the default Disconnected Timeout of 5 minutes compared to the default of 20 minutes for a non VIP device.

Security (HTTP/S)

Secure (HTTPS) communication from Device Manager to the Devices

Sends secured (HTTPS) requests from the Device Manager server to the phone. If the option is selected, communications and REST actions such as Restart, Send Message, etc., will be carried out over HTTPS.
Not relevant when using an SBC proxy (see here).

Default Device Configuration

Server FQDN

[Recommended] Points phones to the OVOC server using the server's name rather than its IP address. If phones are pointed to the OVOC server's IP address, then if the server is moved due to organizational changes within the enterprise, all phones are disconnected from it. Pointing using the server's name prevents this, making organizational changes easier.

Devices Language

From the dropdown select the language you want displayed in the phones' screens: English (default), French, German, Hebrew, Italian, Polish, Portuguese, Russian, Spanish or Ukraine.

NTP Server IP Address

Enter the IP address of the Network Time Protocol (NTP) server from which the phones can get the time.

Voice Mail Number

Enter the number of the enterprise's exchange.
Configuration depends on the enterprise environment, specifically, on which exchange the enterprise has. If the enterprise has a Skype for Business environment, ignore this parameter. Default=1000.

Require SRTP in the Phone Configuration File

Select this option for Secure RTP. Real-time Transport Protocol (RTP) is the standard packet format for delivering voice over IP.

Daylight Saving Time

Active

Determines whether the phone automatically detects the Daylight Saving Time for the selected Time Zone.

■ Disable
■ Enable (default)

Date Format

Configures the date format. Valid values are:

■ FIXED. Date is specified as: Month, Day of month.
■ Day of Week. Date is specified as Month, Week of month, Day of week.

Start Time

Defines precisely when to start the daylight saving offset.

■ month - defines the specific month in the year
■ week – defines the specific week in the month (first – fourth)
■ day - defines the specific day in the week
■ hour - defines the specific hour in the day
■ minute - defines the specific minute after the hour

Configures the precise moment the phone will start daylight savings with a specific offset.

End Time

Defines precisely when to end the daylight saving offset.

■ month - defines the specific month in the year
■ week – defines the specific week in the month (first – fourth)
■ day - defines the specific day in the week
■ hour - defines the specific hour in the day
■ minute - defines the specific minute after the hour

Configures the precise moment the phone will end daylight savings with a specific offset.

Offset

The offset value for the daylight saving. Range: 0 to 180.

IGS

Enable IGS behind NAT

Enables administrators to send requests to devices behind NAT.

■ Teams devices function flawlessly behind a NAT in all scenarios; ignore the IGS tab shown in the figure below if you're using Teams devices.
■ The IGS tab applies only to enterprises whose environments are non Skype for Business. All other tabs in the screen apply to both Skype for Business and non Skype for Business environments.
■ Enable IGS under the following circumstances:
✔ you're using non-Teams devices (if you're using the 405HD phone, you may require a firmware upgrade)
✔ devices are located behind a NAT or Device Manager is unable to establish communication with them
■ 420HD, 430HD and 440HD phones are incompatible when managed behind a NAT

Outbound Proxy

Redundant Mode

Allows the administrator to set the primary PBX / Skype for Business server to which the phone registers and the fallback option if the server is unavailable. One of the following values:

■ No Redundant (default)
■ Primary Backup: Primary/Backup, or 'outbound proxy' is a feature that enables the phone to operate with a primary or backup PBX/Skype for Business server. If the primary falls, the other backs it up.

(%ITCS_Redundant_outbound_proxy_enable%)

Primary

Enter the primary PBX/Skype for Business server's IP address, i.e., the outbound proxy's IP address.

Primary Outbound Proxy

(%ITCS_Outbound_proxy%)

HTTP AUTH Provisioning no password

If set to Enabled, only the extension number will be used for provisioning HTTP authentication. The default HTTP AUTH password will be 1234. In DHCP option 160 and on the templates, the setting 'provisioning/configuration/http_auth/password' must be configured to 1234 to activate the feature.

Azure Blob Storage

Azure Blob Storage Connection:

■ There are scripts that configure these parameters automatically. They can be entered here.
■ If you cannot generate a configuration, check that the fields are configured correctly.
■ Extract the values for the fields from the Azure Blob container (see below)

Azure Storage Account Name

The name of the container used to store Live Platform Device Manager files

and There are scripts that configure this automatically. They can be entered here.

Azure Storage Account Access Key

The name of the key used to access the storage account.

Azure Storage config and firmware url

The provisioning URL used to retrieve firmware and configuration files from the Azure Blob.

Redirect Server

The below settings should also be configured on the Redirect Server. See also Configuring Device Manager FQDN.

Reseller Group Name

The ’ (i.e., the name of the Reseller Group that is configured for the Live Cloud instance. For example, LTC_QA_MTG).

Reseller Username

The username of the Reseller Group's user (the same as that defined in the Redirect Server) (i.e., the username used for connecting to Redirect Server).

Reseller Password

The password used for connecting to the Redirect server.

Proxy Server

For information about the SBC Proxy Configuration button, see here.

IP Address /Hostname

IP Address or Hostname of the SBC Proxy Server.

Save the proxy server configuration after making a test request.



Port

SBC Proxy Server port.

Enable Proxy Tunnel



User Name

Username of the SBC Proxy Server.

Password

Password of the SBC Proxy Server.

More

LDAP Configuration

See Configuring the LDAP Directory

Default Placeholders Values

See Viewing Default Placeholders ValuesIf required, in the 'Accept Extensions' field define file extensions you'll require which aren't already defined, then click Save.

ShareFiles Configuration

See here.
3. Click Save All Settings.
