Element (Entity) Statistics Report Type

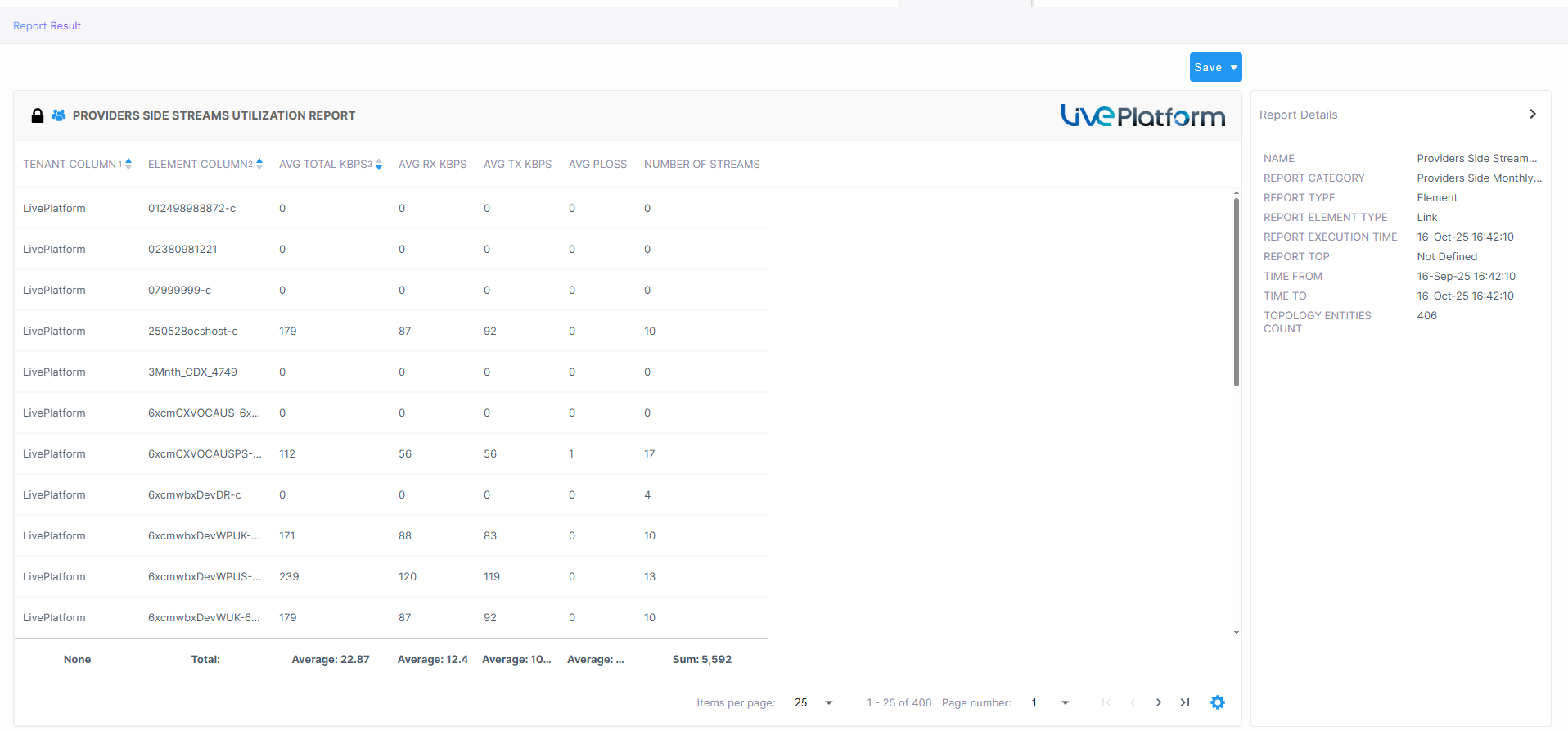

The following figures show Element reports for the 'Services' entity.

The following figure shows an Element Report for the 'Customers' entity.

The following figure shows an Element report for the 'SIP Connections' entity.



Use the following to get acquainted:

■

Indicates a predefined report integrated with Live Platform; cannot be deleted or edited

■

indicates a public report; anyone can view, edit and delete it

■

'Devices Calls Report' indicates the defined name of the report

■

Each bar in the chart shows the value (values, if it's a stack chart) of the metric, according to the chart legend:

●

Red = Failed calls / streams (as shown in the preceding figure)

●

Green = Successful calls / streams (as shown in the preceding figure)

■

The y axis shows number of calls

■

The x axis shows each device's name

■

The Report Details pane on the right displays among other details:

●

the report category

●

the defined time period

●

the date and time the report was executed

●

the number of entities in the topology

■

The lowermost table columns shows the following:

●

T Provider name

●

element name

●

# of calls

●

% of calls

●

success|fail ratio

●

total calls duration

●

average calls duration

●

# of established calls

●

calls / streams quality ratio

●

maximum concurrent calls

●

# of voice calls

●

# of fax calls

Colors of bars in a stack chart depend on metric name. In the preceding figure, for example, the metric name 'Success Calls / Streams Ratio' contains 'Success', so the stack chart is green.
