Provision Calling Profiles

If you configured 'Advanced Settings' when enabling the Operator Connect license, you added a SIP Connection with an SBC IP Group and mapped a Calling Profile template to an SBC Proxy Set. This option allows you to add SIP connections and map them to different Calling Profile Templates and Proxy Sets. Calls made by tenant users are applied with the mapped Calling Profile template and routed through the configured Proxy Set. Additionally, you can customize the IP Group configuration of the SIP connection. For example, when calls are routed through Carrier ABC, IP Group A is configured with enhanced security settings.

You can only map a Calling Profile Template to a single SIP Connection. The 'Provision Calling Profile' button is only displayed when configured upon applying the license (see Creating OC Essential Customer).

➢ To provision a calling profile:

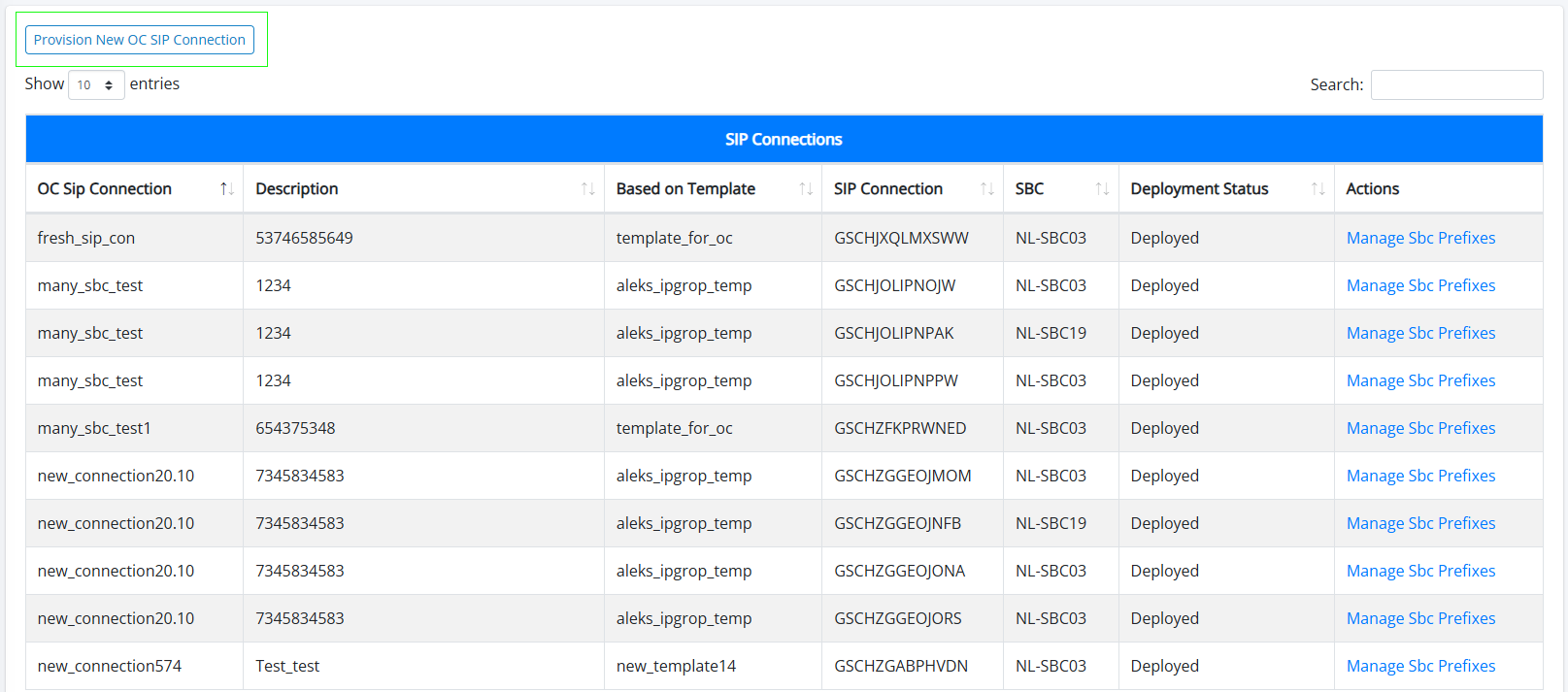

1. In the Service portal Navigation pane, select Configuration > SIP Connections.

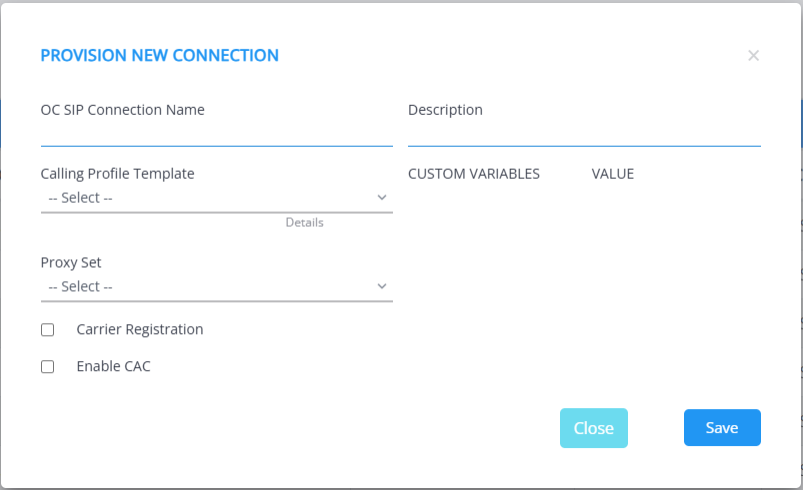

2. Click Provision Calling Profile to map a new Calling Profile to your service.



3. Configure parameters according to the table below and then click Save.

Parameter

Description

Calling Profile Template

From the drop-down list, choose the Calling Profile template to apply to your customer. Each Calling Template has matching SBC Onboarding scripts. Click View Details to view the details of these scripts. See Calling Profile Provisioning Templates.

Only those Calling Profile templates that have not already been mapped to a SIP Connection are displayed in the drop-down list.

Click Details to view the detailed configuration of the Calling Profile Template.

Proxy Set

From the drop-down list, choose the SBC Proxy Set to map to the Calling Profile template. You can map the same or different Proxy Sets to each template.

Carrier Registration

Select this option to perform SIP Account Registration for the Carrier trunk:

■ Username: Defines the digest MD5 Authentication username. The valid value is a string of up to 60 characters. By default, no value is defined.
■ Password: Defines the digest MD5 Authentication password. The valid value is a string of up to 50 characters. Note: The password cannot be configured with wide characters.
■ MainLine (Contact User): Defines the AOR username. This appears in REGISTER From/To headers as ContactUser@HostName
■ Host Name: Defines the Address of Record (AOR) host name. The host name appears in SIP REGISTER From/To headers as ContactUser@HostName.

Enable CAC

Enable Call Admission Control (CAC). From the drop-down list, select the desired preconfigured CAC Profile call session number template.

SBC Onboarding Script

Apply one of the following (click ViewScripts to view the details of the script):

■ If all customers use the same Proxy Set, apply the ' OcEssential default SBC onboarding script':
✔ Creates an IP Group towards customer side, with tag: "Trunk=<MsTenantId>" and previously configured Operator’s ProxySet and IP Profile.
✔ Creates an IP Group towards Teams OC side, with tag: "Tenant=<MsTenantId>".
✔ If you select 'Carrier Registration' (see below), a rule is added to the Account Table for registration of the new IP Group towards the carrier IP Group.
✔ Each number uploaded for the customer in the “OCDialPlan” dial plan is assigned the dial plan tag <MsTenantId>.

For more information, see SBC Template Scenarios

SBC Cleanup Script

Apply the relevant SBC Cleanup script (see SBC Template Scenarios).

Customer variables

Configure Customer variables that have been defined in the script. For example, IP-PBX credentials.

Carrier Registration

Select this option to perform SIP Account Registration for the Carrier trunk. This option is only relevant if you are connecting your Carrier to a SIP Trunk (when configuring SIP Trunk or BYOC). The selected carrier binds to the configured SIP Interface, Proxy Set and IP Profile on the SBC (where the same name is configured for all three entities on the SBC).

■ Username: Defines the digest MD5 Authentication username. The valid value is a string of up to 60 characters. By default, no value is defined.
■ Password: Defines the digest MD5 Authentication password. The valid value is a string of up to 50 characters. Note: The password cannot be configured with wide characters.
■ MainLine (Contact User): Defines the AOR username. This appears in REGISTER From/To headers as ContactUser@HostName
■ Host Name: Defines the Address of Record (AOR) host name. The host name appears in SIP REGISTER From/To headers as ContactUser@HostName.

Enable CAC

Enable Call Admission Control (CAC). From the drop-down list, select the desired CAC Profile including the desired number of call sessions.

Notice that each SIP Connection is mapped to a different Calling Profile.

Note the new IP group is created on the SBC and is mapped to Proxy Set 'Teams'.
