Show SIP Connections

You can display a list of SIP Connections that are connected to a specific SBC device. The connection represents the link between the SBC device, the SIP trunk or IP-PBX and the Live Platform.

➢

To show SIP Connections:

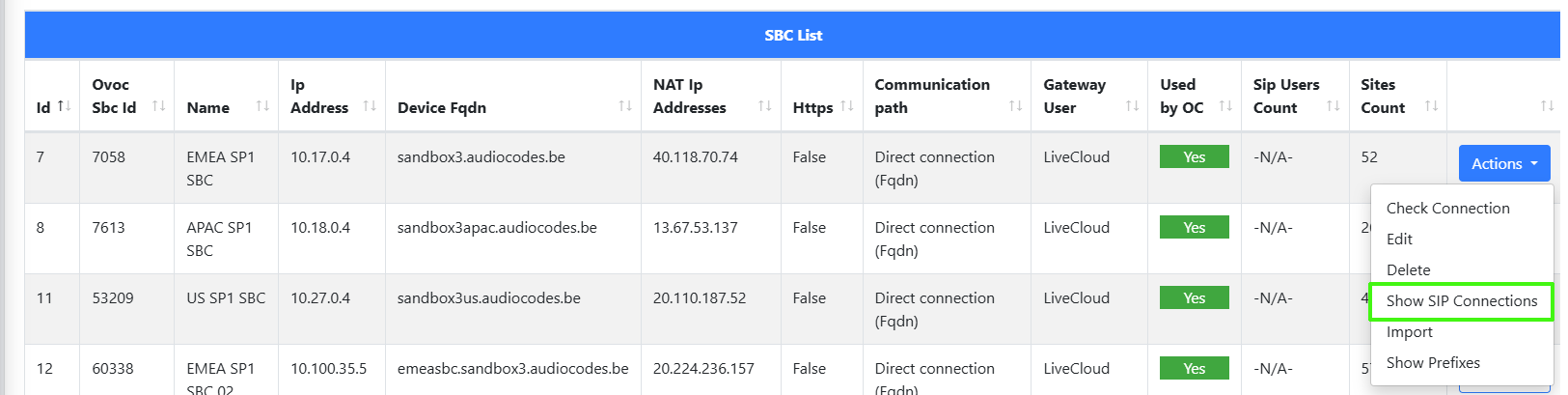

In the Known SBCs page, select an SBC device, and then from the Actions drop-down, select Show SIP Connections.

A list of SIP Connections that are connected to the selected SBC device are displayed.

The table below describes the parameters in this table.

Parameter

Description

SIP Connection

Name of the SIP Connection.

Service Name

Name of service attached to the location.

Configuration

■

SIP Trunk

■

IP-PBX

■

BYOC

PSTN Gateway

The FQDN of the Online PSTN Gateway that is attached to the SIP Connection. A PSTN gateway (Online PSTN Gateway) in Microsoft Teams Direct Routing is a configuration entity that acts as a pointer to an SBC device. It interfaces Microsoft Teams to a telephone carrier SIP trunk or IP-PBX, allowing external PSTN calling functionality. Key functions include mediating call signaling and enabling voice routing policies.

For the Live Platform hosting model (Microsoft Super Trunk), only the carriers need to set up and manage a single trunk (carrier trunk in the carrier domain). For the customer tenant, the carrier needs to only add the derived trunk FQDN .

SBC Deployment State

Indicates that the SBC has been successfully connected to the Live Platform.

M365 Deployment State

Indicates that the SBC has been successfully connected to M365.

Export to CSV

Click Export to CSV to export the table to a CSV file.
