Connectivity

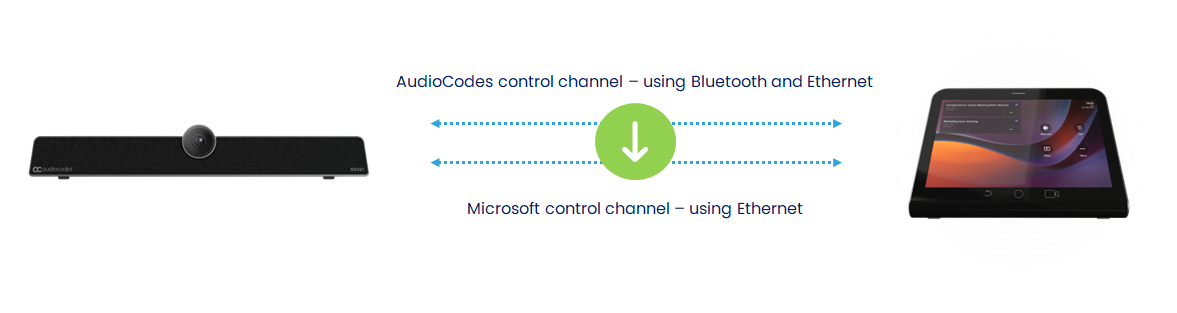

The RX-PAD must be paired with the ‘main MTR unit’, for example, RXV81 or RXV200, to be active. RXV81 | RXV200 is the Front of the Room MTR main unit.
| ■ | The RX-PAD runs the main client and MTR processing (audio, video, sharing). |
| ■ | The main unit (RXV81 | RXV200) can run as a standalone (using remote / keyboard / mouse) or paired with the controller. |
| ■ | Both RX-PAD and RXV81 | RXV200 share the same MTR license and account. |
| ■ | The user signs in on both RX-PAD and RXV81 | RXV200, to the same account. |
| ■ | Configuration is ‘shared’ between the Room Controller and the main unit. |
IMPORTANT
The RX-PAD-ES model (with MDEP) must be paired only with RXV200-ES (with MDEP). It cannot be paired with the standard RXV200. Likewise, RXV200-ES can only be paired with RX-PAD-ES.
If in doubt whether your unit is standard or ES, look up the About page (see View RXV200 or RXV81 Information).
