Configuring Gateway User Information Table through Web Interface

You can configure the GW User Information table through the Web interface. The table allows you to do the following:

■ Manually add users (described below).
■ Import users from a file: From the Action drop-down list, choose Import.
● When you import a file, all previously configured entries in the table are deleted and replaced with the users from the imported file.
● For configuring users in a file for import, see Configuring GW User Info Table in Loadable Text File.
■ Export the configured users to a .csv file: From the Action drop-down list, choose Export and save the file to a folder on your computer.
■ Register and un-register users:
● To register a user, select the user, and then from the Action drop-down list, choose Register.
● To un-register a user, select the user, and then from the Action drop-down list, choose Un-Register.

To configure the GW User Information table, make sure that you have enabled the feature (see Enabling the User Info Table).

The following procedure describes how to configure and register users in the GW User Information table through the Web interface.

➢ To configure the GW User Information table through the Web interface:
1. Open the GW User Information table (Setup menu > Signaling & Media tab > Gateway folder > Gateway User Information).

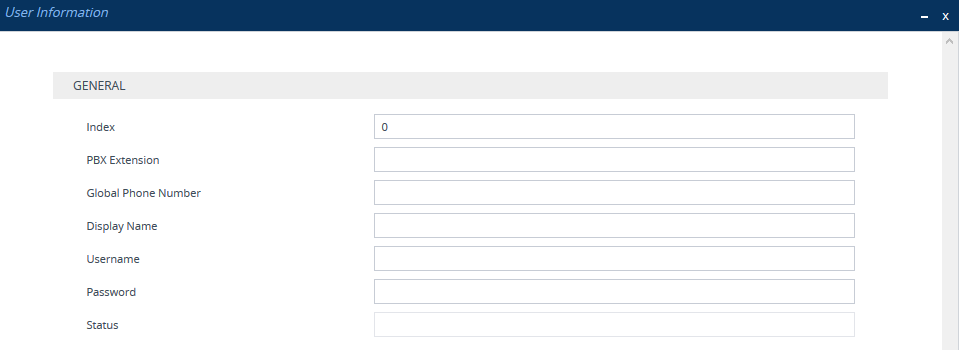

2. Click New; the following dialog box appears:

3. Configure a user according to the table below.
4. Click Apply.

User Information Table Parameter Descriptions

Parameter

Description

'Index'

[Index]

Defines an index number for the new table row.

Note: Each row must be configured with a unique index.

'PBX Extension'

[PBXExtension]

Defines the PBX extension number.

The valid value is a string of up to 10 characters.

Note: The parameter is mandatory.

'Global Phone Number'

[GlobalPhoneNumber]

Defines the "global" phone number for the IP side.

The valid value is a string of up to 20 characters.

Note: The parameter is mandatory.

'Display Name'

[DisplayName]

Defines the Caller ID of the PBX extension.

The valid value is a string of up to 30 characters.

'Username'

[Username]

Defines the username for registering the user when authentication is necessary.

The valid value is a string of up to 60 characters. By default, no value is defined.

'Password'

[Password]

Defines the password for registering the user when authentication is necessary.

The valid value is a string of up to 20 characters.

Note: The password cannot be configured with wide characters.

'Status'

(Read-only field) Displays the status of the user:

■ "Registered"
■ "Not Registered"
