Mapping NPI/TON to SIP Phone-Context
The Phone Contexts table lets you configure up to 20 rules for mapping the Numbering Plan Indication (NPI) and Type of Number (TON) to the SIP 'phone-context' parameter, and vice versa. The 'phone-context' parameter appears in the standard SIP headers where a phone number is used (i.e., Request-URI, To, From, and Diversion). When a call is received from the Tel side, the device searches the table for a matching rule (i.e., same NPI and TON values). If a matching rule is found, the device uses the rule's corresponding 'phone-context' value in the outgoing SIP INVITE message. The same mapping occurs when an INVITE with a 'phone-context' parameter is received.
For example, for a Tel-to-IP call with NPI/TON set as E164 National (values 1/2), the device can send the following SIP INVITE URI:
sip:12365432;phone-context= na.e.164.nt.com
For an IP-to-Tel call, if the incoming INVITE contains this 'phone-context' (e.g. "phone-context= na.e.164.nt.com"), the NPI/TON of the called number in the outgoing Setup message is changed to E164 National.
The following procedure describes how to configure NPI/TON-SIP phone-context mapping rules through the Web interface. You can also configure it through ini file [PhoneContext] or CLI (configure voip > gateway manipulation phone-context-table).
|
➢
|
To configure NPI/TON-SIP phone-context mapping rules: |
|
1.
|
Open the Phone Contexts table (Setup menu > Signaling & Media tab > Gateway folder > Manipulation > Phone Contexts). |
|
2.
|

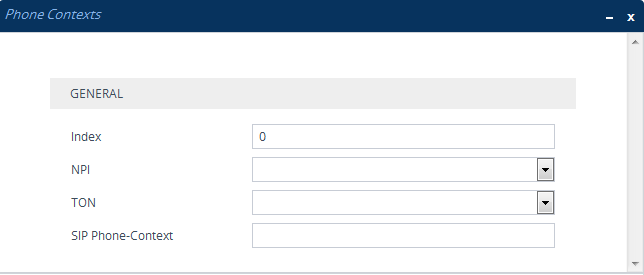

Click New; the following dialog box appears: |
|
3.
|
Configure a mapping rule according to the parameters described in the table below. |
|
●
|
You can configure multiple rows with the same NPI/TON or same SIP 'phone-context'. In such a configuration, a Tel-to-IP call uses the first matching rule in the table. |
|
●
|
To add the incoming SIP 'phone-context' parameter as a prefix to the outgoing ISDN Setup message (for digital interfaces) with called and calling numbers, from the 'Add Phone Context As Prefix' drop-down list (AddPhoneContextAsPrefix), select Enable. |
Phone Contexts table Parameter Description
|
|
|
|
'Index'
[Index]
|
Defines an index number for the new table row.
Note: Each row must be configured with a unique index.
|
|
'NPI'
npi
[Npi]
|
Defines the Number Plan Indicator (NPI).
For a detailed list of the available NPI/TON values, see Numbering Plans and Type of Number.
|
|
'TON'
ton
[Ton]
|
Defines the Type of Number (TON).
|
■
|
[1] International-Level2 Regional |
|
■
|
[2] National-Level1 Regional |
|
■
|
[3] Network-PSTN Specific |
|
■
|
[4] Subscriber-Level0 Regional |
The applicable values depend on the NPI value:
|
■
|
If you select Unknown as NPI, you can select Unknown. |
|
■
|
If you select Private as NPI, you can select one of the following: |
|
✔
|
[1] International-Level2 Regional |
|
✔
|
[2] National-Level1 Regional |
|
✔
|
[3] Network-PSTN Specific |
|
✔
|
[4] Subscriber-Level0 Regional |
|
■
|
If you select E.164 Public as NPI, you can select one of the following: |
|
✔
|
[1] International-Level2 Regional |
|
✔
|
[2] National-Level1 Regional |
|
✔
|
[3] Network-PSTN Specific |
|
✔
|
[4] Subscriber-Level0 Regional |
|
|
'SIP Phone-Context'
context
[Context]
|
Defines the SIP 'phone-context' URI parameter.
|
