Viewing Media Component Status

You can view the status of a Media Component through the Media Component's Web interface.

➢

To view Media Component status:

1.

Access the Media Component's Web interface.

2.

Open the Cluster Settings page (Setup menu > IP Network tab > Media Cluster folder > MC Settings).

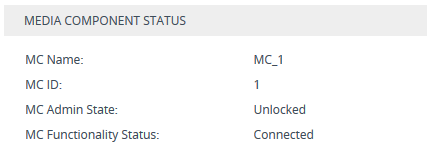

The following information is displayed:

Description of Media Component Status Fields

Field	Description
MC Name	Displays the name of the Media Component as configured on the Cluster Manager in the Media Components table (see Step 6: Adding Media Component to Cluster Manager).
MC ID	Displays the table row index number of the Media Component as configured on the Cluster Manager in the Media Components table.
MC Admin State	Displays the administrative state of the Media Component, performed by the Cluster Manager in the Media Components table: ■ "Unlocked": Media Component is currently unlocked. ■ "Locked": Cluster Manager has locked the Media Component. ■ "Locked before Reset": Media Component is currently locked as the Cluster Manager is initiating a restart on the Media Component.
