Configuring OAuth 2.0 Servers

The OAuth Servers table lets you configure a single OAuth server. You can use the OAuth server for OAuth-based login authentication of users and authentication of incoming SIP message authentication.

You can configure only one OAuth server in the table with type Azure.

The following procedure describes how to configure the OAuth server through the Web interface. You can also configure it through ini file [OAuthServers] or CLI (configure system > oauth-servers).

➢ To configure an OAuth server:
1. Open the OAuth Servers table (Setup menu > IP Network tab > AAA Servers folder > OAuth Servers).

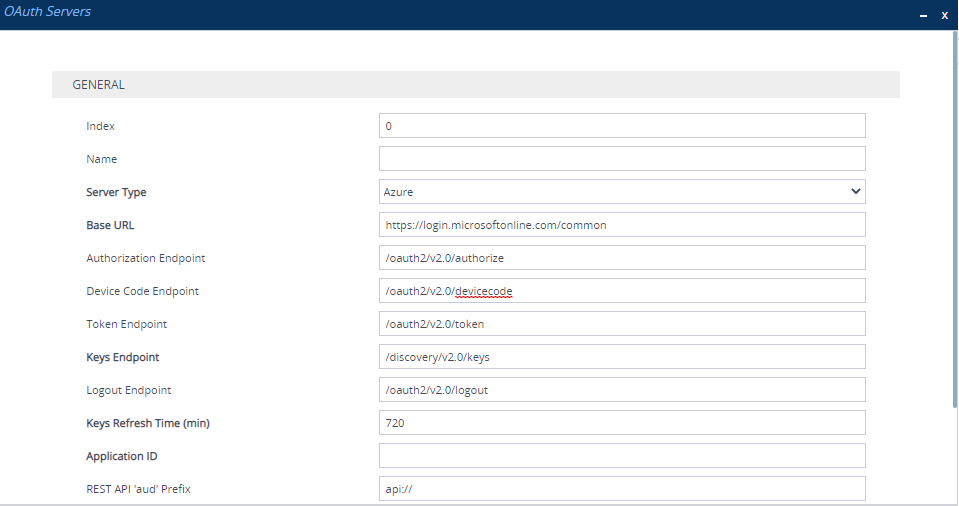

2. Click New; the following dialog box appears:

3. Configure the OAuth server according to the parameters described in the table below.
4. Click Apply.

OAuth Servers Table Parameter Descriptions

Parameter

Description

'Index'

[Index]

Defines an index number for the new table row.

Note: Each row must have a unique index.

'Name'

server-name

[OAuthServerName]

Defines an arbitrary name to easily identify the row.

The valid value is a string of up to 20 characters.

Note:

■ Configure each row with a unique name.
■ The parameter is mandatory.

'Server Type'

server-type

[OAuthServerType]

Defines the provider of the OAuth service.

■ [0] Azure (default)
■ [1] Standard OAuth 2.0 = Standard OAuth 2.0 server using standard OAuth 2.0 tokens.
■ [2] tsec = A customer's proprietary authentication method.

Note:

■ The parameter is mandatory.
■ You can configure only one OAuth server in the table for Azure.

'Base URL'

base-url

[OAuthBaseURL]

Defines the base URL. The endpoints configured by the below parameters follow this base URL. For example, the full URL path of the default authorization endpoint is "https://login.microsoftonline.com/common/oauth2/v2.0/authorize".

The default is "https://login.microsoftonline.com/common".

Note: The parameter is mandatory.

'Authorization Endpoint'

authorization-endpoint

[OAuthAuthorizeEndpoint]

Defines the authorization endpoint URL path (which follows the base URL).

The default is "/oauth2/v2.0/authorize".

Note: The parameter is applicable only when the 'Server Type' parameter is configured to Azure.

'Device Code Endpoint'

devicecode-endpoint

[OAuthDeviceCodeEndpoint]

Defines the device code endpoint URL.

The default is "/oauth2/v2.0/devicecode".

Note: The parameter is applicable only when the 'Server Type' parameter is configured to Azure.

'Token Endpoint'

token-endpoint

[OAuthTokenEndpoint]

Defines the token endpoint URL.

The default is "/oauth2/v2.0/token".

Note: The parameter is applicable only when the 'Server Type' parameter is configured to Azure, and is mandatory.

'Keys Endpoint'

keys-endpoint

[OAuthKeysEndpoint]

Defines the key endpoint.

The default is "/discovery/v2.0/keys".

Note: The parameter is mandatory.

'Logout Endpoint'

logout-endpoint

[OAuthLogoutEndpoint]

Defines the logout endpoint URL.

The default is "/oauth2/v2.0/logout".

Note: The parameter is applicable only when the 'Server Type' parameter is configured to Azure.

'Keys Refresh Time'

keys-refresh-time

[OAuthKeysRefreshTime]

Defines the periodic time (in minutes) to refresh the public keys (by requesting them from Azure Microsoft Entra ID).

The valid value range is 360 to 1440. The default is 720.

Note: The parameter is applicable only when the 'Server Type' parameter is configured to Azure, and is mandatory.

'Application ID'

application-id

[OAuthAppId]

Defines the Application (client) ID assigned by your Azure Microsoft Entra ID account for the app created (registered) for the device in Microsoft Entra ID.

By default, no value is defined.

Note: The parameter is mandatory.

'Scope'

scope

[OAuthScope]

Defines the scope to access resources.

By default, no value is defined.

Note:

■ The parameter is applicable only when the 'Server Type' parameter is configured to Standard OAuth 2.0.
■ The scope is given to you by your authentication provider.

'Grant Type'

grant-type

[OAuthGrantType]

Defines the grant type when the device requests OAuth 2.0 access tokens for the HTTP client.

■ [0] Client Credentials = (Default): The client authenticates using its own unique client ID and client secret to obtain the access token. This is typically used for application-to-application communication.

If you select this option, you need to configure the secret key using the 'Secret Key' parameter (see below).

■ [1] Password = The client authenticates using a specific user's username and password (in addition to the client ID) to obtain the access token.

If you select this option, you need to configure the username and password using the 'Username' and 'Password' parameters, respectively (see below).

Note: The password grant type is generally discouraged in for OAuth 2.0 implementations because it's less secure.

'Secret Key'

secret-key

[OAuthSecretKey]

Defines the secret key (or client secret) that the device sends to the OAuth server for authentication.

By default, no value is defined.

Note:

■ The parameter is applicable only (and mandatory) for the following OAuth server settings:
✔ 'Server Type' parameter is Standard OAuth 2.0.
✔ 'Grant Type' parameter is Client Credentials.
■ The secret key is provided by your authentication provider.

'Username'

username

[OAuthUsername]

Defines the user's username that the device sends to the OAuth server for authentication.

By default, no value is defined.

Note:

■ The parameter is applicable only (and mandatory) for the following OAuth server settings:
✔ 'Server Type' parameter is Standard OAuth 2.0.
✔ 'Grant Type' parameter is Password.
■ The username is provided by your authentication provider.

'Password'

password

[OAuthPassword]

Defines the user's password that the device sends to the OAuth server for authentication.

By default, no value is defined.

■ The parameter is applicable only (and mandatory) for the following OAuth server settings:
✔ 'Server Type' parameter is Standard OAuth 2.0.
✔ 'Grant Type' parameter is Password.
■ The password is provided by your authentication provider.

'REST API 'aud' Prefix'

rest-api-aud-prefix

[RestApiAudPrefix]

Defines the REST API 'aud' prefix. This is used when validating the 'aud' specified when the validation request is from the REST API.

The default is "api://".

'TLS Context'

tls-context

[TLSContext]

Assigns a TLS Context from the TLS Contexts table (see Configuring TLS Contexts).

By default, no value is defined (and TLS Context #0 is used).

'Verify Certificate'

verify-certificate

[VerifyCertificate]

Enables the verification of the TLS certificate that is used in the incoming connection request from the OAuth server.

■ [0] Disable = (Default) No certificate verification is done.
■ [1] Enable = The device verifies the authentication of the certificate received from OVOC. The device authenticates the certificate against the trusted root certificate store associated with the assigned TLS Context (see 'TLS Context' parameter above) and if ok, allows communication with the server. If authentication fails, the device denies communication (i.e., handshake fails). The device can also authenticate the certificate by querying an Online Certificate Status Protocol (OCSP) server if the certificate has been revoked. This is also configured for the associated TLS Context.

'Network Interface'

network-interface

[NetworkInterface]

Assigns an IP network interface from the IP Interfaces table (see Configuring IP Network Interfaces) for communication with the OAuth server.

By default, no value is defined (and OAMP interface is used).

Note: The parameter is mandatory.
