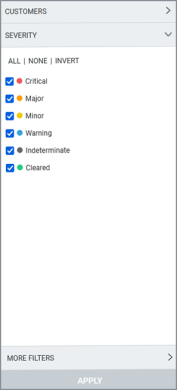

Filtering by Severity
The 'Severity' filter applies to the pages under the Alarms menu: Activeand History pages.
| ■ | Click ALL to select all check boxes. |
| ■ | Click CLEAR to clear selection. |
| ■ | Click INVERT to select all check boxes that have not been selected and clear those that are currently selected. |
Use the following table as reference.
Severity Filter
|
Filter |
Description |
|---|---|
|
Critical |
Select to display entities whose alarm severity level is critical, color-coded red. |
|
Major |
Select to display entities whose alarm severity level is major, color-coded orange. |
|
Minor |
Select to display entities whose alarm severity level is minor, color coded yellow. |
|
Warning |
Select to display entities whose alarm severity level is warning, color coded blue. |
|
Indeterminate |
Select to display entities whose alarm severity level is indeterminate, color coded black. |
|
Clear |
Select to display entities whose alarm severity level is clear, color coded green. |
