Services Details Quick Glance

The Service Details pane provides you with a quick glance summary of the status of the service.

Meeting Insights

Interaction Insights

Direct Routing Service Details

Device Manager Service Details

Hybrid Entities

Live CX Service Details

Live UC Service Details

Zoom Peering

Voca Service



Parameter

Description

Name

Service Shortname as defined in the Onboarding.

Status

Management Status (see Management Statuses)

Deploy Status

See Deploy Status and Status Indicators

Full Name

Service Full name as defined in the Onboarding.

Customer

Name of the customer attached.

Service Type

Live Platform Service Type:

Direct Routing
Operator Connect
Device Manager
Live CX
Hybrid Entities
Interaction Insights
Meeting Insights

License Type

The License type of the service:

Direct Routing/Operator Connect:
Essentials
Essentials Plus
Pro
Hybrid:
ACM
Breakout
Interaction Insights:
Audio Recording
Audio & Redundancy
Live CX/LiveUC/Device Manager:
Essential

Enabled

Indicates whether the Live Platform license is enabled for the service.

CAC Profile (Direct Routing and Operator Connect)

Enable Call Admission Control (CAC) profile with configured number of sessions.

Carrier ID

The Carrier ID of the Service Provider or BYOC SIP Trunk (Proxy Set on the SBC device).

Used DIDS

Phone numbers that are loaded to the SBC and assigned to users.

Unused DIDS

Phone numbers that have are loaded to the SBC, however have not yet been assigned to users.

Total DIDS

Total number of phone extensions that are loaded to the SBC.

Users Count

Number of managed users.

Tenant

Name of the attached Live Platform Service Provider tenant.

Management and QoE Status

Indicates the status of the Management and QoE managed entities.

Active Alarms

Summary of Active Alarms for the service (click to drill down to Service alarms). See Monitoring Alarms from Customer Service Sites.

Device Manager

Service Device URL

The URL used by the service to retrieve firmware and configuration files from Live Platform. Used by AudioCodes Redirect server for initial provisioning of phone upon connection to the network.

Max Meetings Devices

The Maximum number of licensed Meeting Room devices.

Max Personal Devices

The Maximum number of licensed Personal Devices.

Meeting Device (Disconnected/Total)

The number of disconnected devices in proportion to the total number of devices that are attached to the service.

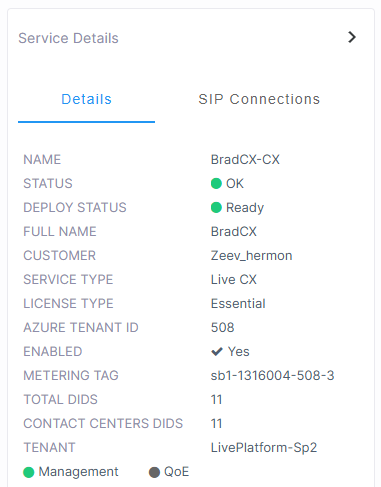

Live CX

Metering Tag

The ID tag used to identify the SIP Connection that is attached to the service. For example sb1-1316004-508-3. This value is also displayed in the SIP Connection details in the Services page. Note that the Live Platform instance is appended to the value in the Live Platform Service Details.

Total DIDs

The total number of DIDs loaded to the customer tenant.

Contact Center DIDs

The total number of DIDs loaded to customer tenant of number type Contact Center (this is the only number type supported for the CX service).

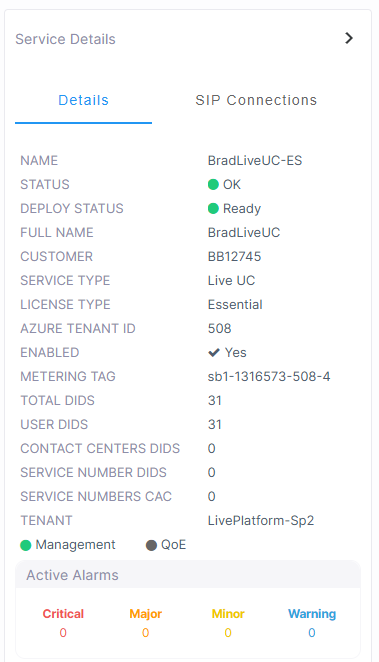

Live UC



Metering Tag

The ID tag used to identify the SIP Connection that is attached to the service. For example sb1-1316004-508-3. This value is also displayed in the SIP Connection details in the Services page. Note that the Live Platform instance is appended to the value in the Live Platform Service Details.

Total DIDs

The total number of DIDs loaded to the customer tenant.

User DIDs

The total number of DIDs assigned to customer tenant of number type "user" for user voice calling.

Contact Centers DIDs

The total number of DIDs loaded to customer tenant of number type Contact Center.

Service Number DIDs

The total number of DIDs loaded to customer tenant of number type Service for service numbers such for applications such as Fax IVR and Emergency calling.

Service Numbers CAC

The total CAC value aggregated for the Service numbers DIDs.

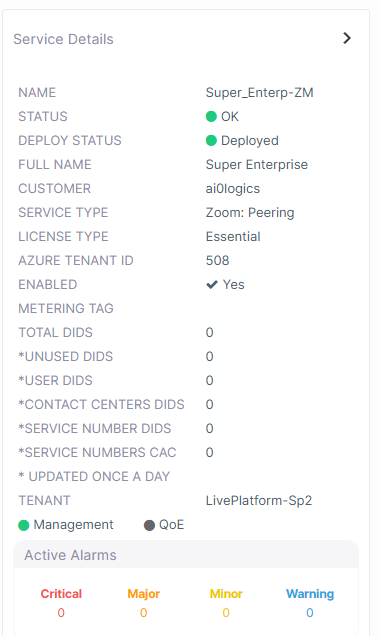

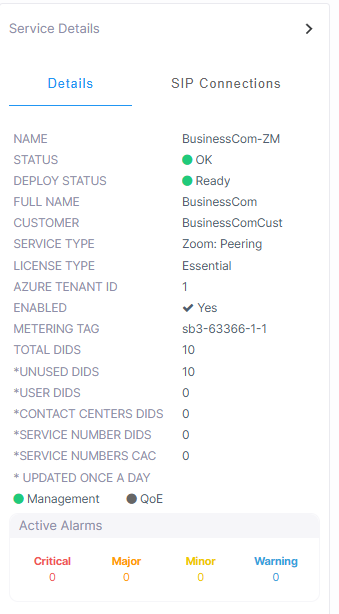

Zoom



Total DIDs

The total number of DIDs loaded to the customer tenant.

Unused DIDs

The total number of DIDs that are not yet assigned to users.

Contact Centers DIDs

The total number of DIDs loaded to customer tenant of number type Contact Center.

Service Number DIDs

The total number of DIDs loaded to customer tenant of number type Service for service numbers such for applications such as Fax IVR and Emergency calling.

Service Numbers CAC

The total CAC value aggregated for the Service numbers DIDs.

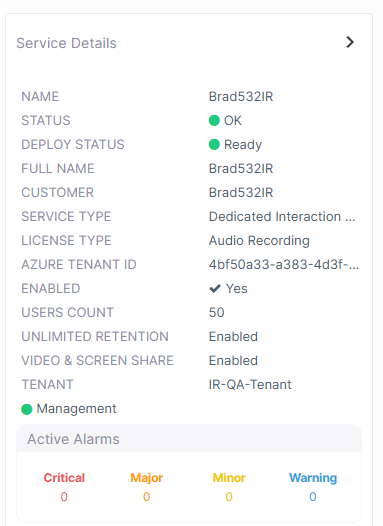

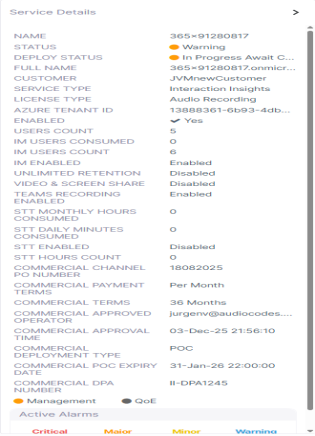

Interaction Insights



Unlimited Retention (Interaction Insights)

Indicates whether the Unlimited Retention feature is enabled. This feature enables unlimited Azure Blob recording storage capabilities for the service.

Video & Screen Share Indicates whether Video  & Screen sharing recording is enabled for the service.

Meeting Insights

AI Monthly Quota

The Total number of hours allowed for AI usage per month, configured in the Tenant Management ('AI Monthly Hours').

AI Monthly Hours Consumed

The Total number of hours consumed for AI in the month.

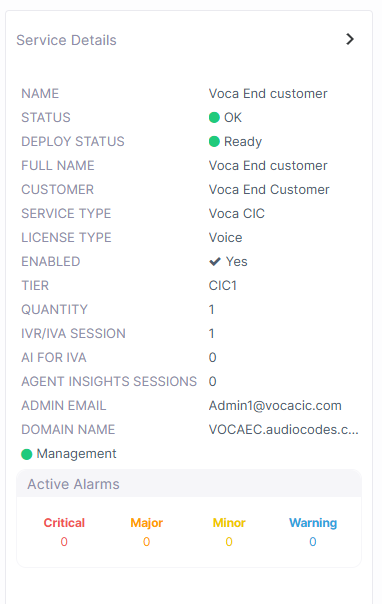

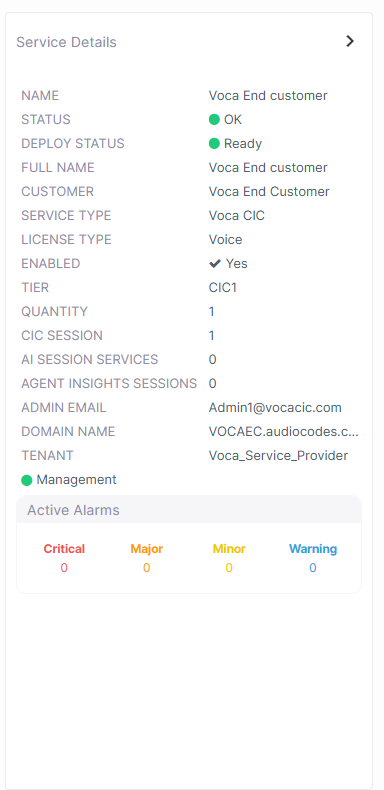

Voca CIC

Tier

Multitenant tier.

Quantity

Number of licensed users for the tier.

CIC Session

Number of IVR and IVA sessions.

AI Session Services

-

Agent Insights Sessions

-

Admin Email

Email of the tenant administrator of the service.

Domain Name

Domain Name of the Voca Service.

Tenant

The Voca Service Provider.

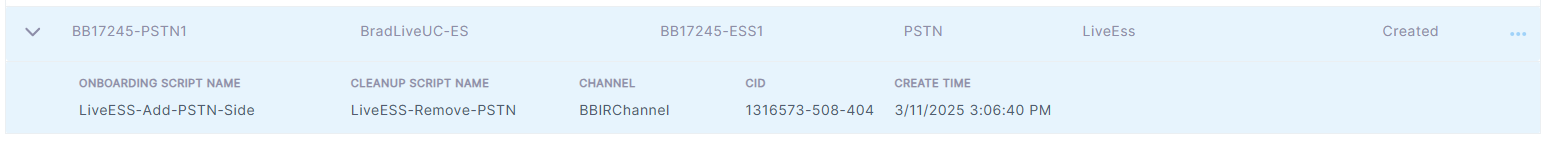

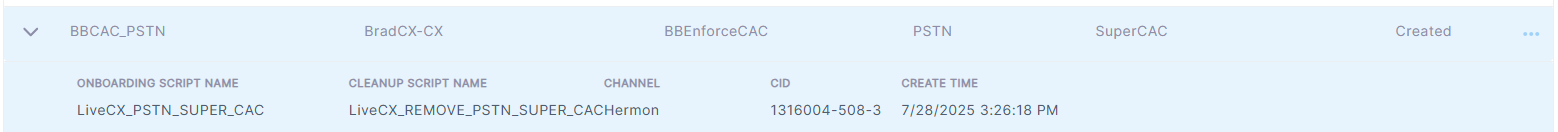

SIP Connections

Parameter

Description

Name

The name of the SIP Connection for the service. For example, SouthSide-c.

Source

The name of the SBC attached to the SIP Connection.

Users Count

The counter representing the voice-enabled users

CAC Profile

The name of the preconfigured CAC Profile call session number template.

Carrier Name

The name of the configured Proxy Set.

Management Status

See Management Statuses.

Teams

Parameter

Description

Name

Name of the SIP Connection for the service. For example, SouthSide-c.

Management Status

See Management Statuses. .
