Add Tenant SIP Connection

The Tenant SIP Connection lets you monitor call data traversing specific Tenant Ids configured on the SBC device.

Ensure that the SBC device attached to the LiveOps 360 Management service is connected to Live Platform portal and has been properly configured.

➢ Do the following:

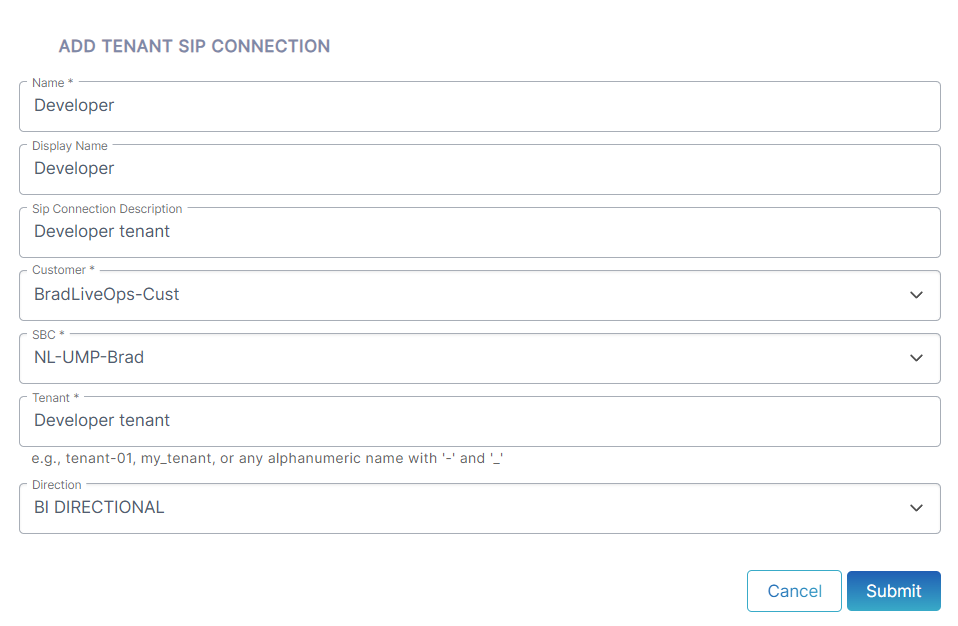

1. From the Add SIP Connection drop-down, choose Tenant.

2. Configure parameters according to the table below.

Parameter

Description

Name

Name of the SIP connection.

Display Name

Display name when choosing the connection from the drop-down configuration .

SIP Connection Description

Brief description of the connection.

Customer

From the drop-down list, select the customer to attach to the connection.

SBC

From the drop-down list, select the SBC device to attach to the connection.

Tenant

Defines a Tenant. This parameter must be configured on the SBC device as well. The value is obtained from the SIP message (header data) using Message Manipulation rules with the call variable Var.Call.Src|Dst.TenantId. It can be included in the CDR by CDR customization using the SBC CDR Format table. The field is applicable only to SBC signaling ("CALL_CONNECT" and "CALL_END" CDR Report Types). The maximum number of characters for Syslog tabular alignment is 71.

Direction

Indicates the direction of the call traffic managed by the SIP Connection.

■ Bi Directional: Connection manages both calls incoming to the configured SBC device (see "SBC" above) and calls outgoing from the reporting device.
■ Ingress: Connection manages calls incoming to the reporting SBC device (see "SBC" above).
■ Egress: Connection monitors calls outgoing from the reporting SBC device (see "SBC" above).

A confirmation message is displayed upon successful creation of the service and the details of the new connection are displayed.
