Get Calling Profiles
The Get Calling Profiles request retrieves a list of Calling Profiles. A calling profile is a logical container for trunks and emergency strings that are used for outbound routing and emergency calling configurations. Every calling profile has a global unique identifier. You can configure multiple calling profiles and a calling profile can have multiple trunks associated. Every PSTN number is associated with one calling profile. For failover, at least two trunks must be associated with the calling profile. All trunks will be in active-active mode and the traffic will be distributed randomly between the trunks.
At least one calling profile should be configured per region, however a calling profile for each market is not required. Every number is associated with a single calling profile. When the the Calling Profile is assigned to a customer, links are created in Live Cloud between the customer tenant and the SBC. In the example below, the Calling Profile OC.CUSTOMERS.AUDIO-CODE.CO.IL is configured with two SBC devices, "oc1.customers.audio-code.co.il" and "oc2.customers.audio-code.co.il". Once updated, two new links are generated in Live Cloud, one for each configured SBC device.
Calling profiles are preconfigured by AudioCodes Professional Services.
HTTP Method
GET
URI
Copy
{{baseUrl}}/api/v2/oc/callingprofileExample Response
Copy
[
{
"additionalSbcList": [],
"callingProfileId": "d12aa76a-d719-4db9-bf78-7ea8bec1d7b5",
"name": "oc1.customers.audiocodes.es",
"enviroment": null,
"region": null,
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc1.customers.audio-codes.es",
"trunkId": "ec76b99e-9d8a-4104-b8fe-e210e633ffa4",
"matchingSbcList": []
}
],

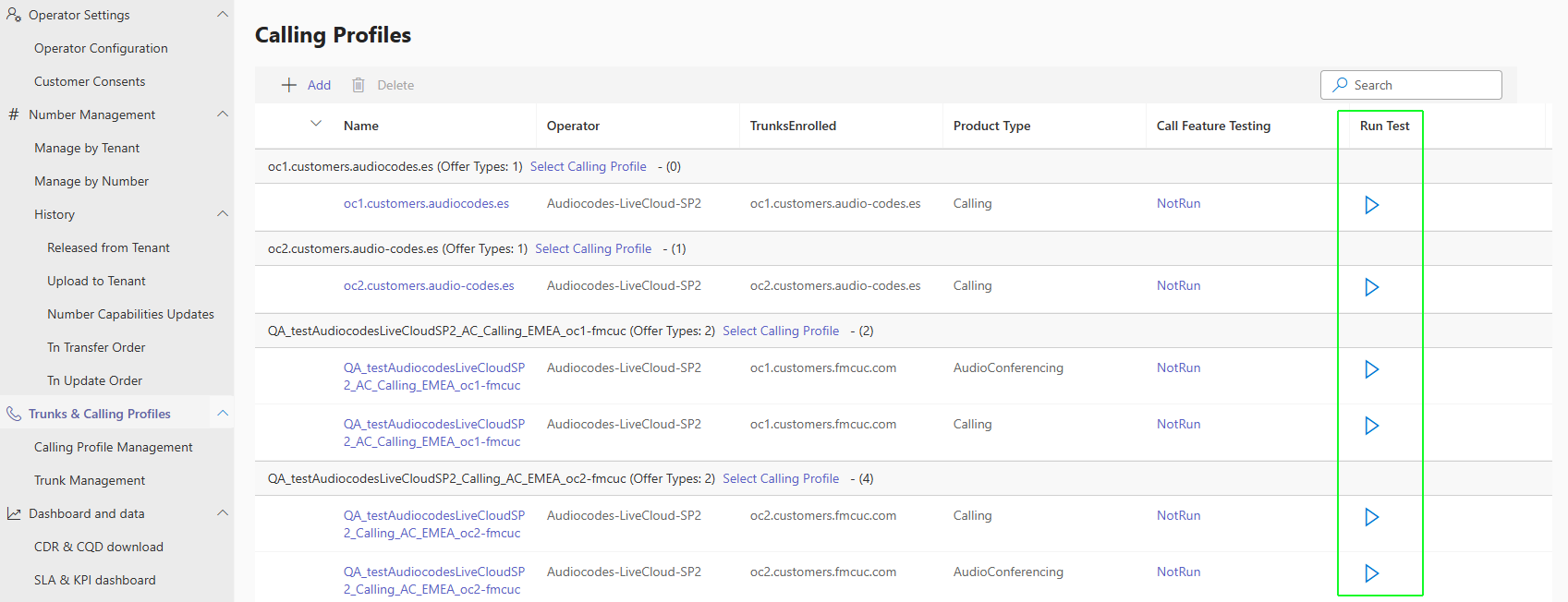

"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "d44ec241-6fa9-40a3-b729-3e90d943c89f",
"name": "oc2.customers.audio-codes.es",
"enviroment": null,
"region": null,
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc2.customers.audio-codes.es",
"trunkId": "24d4cb9f-cc3b-40a1-b8dc-5327419a43f4",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "22f42b35-7dcc-4268-a939-8c7a0af571c7",
"name": "QA_testAudiocodesLiveCloudSP2_AC_Calling_EMEA_oc1-fmcuc",
"enviroment": null,
"region": "EMEA",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
},
{
"offerTypeName": "Calling",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc1.customers.fmcuc.com",
"trunkId": "f304071f-9ce4-4a15-84c2-c1b136b3b03e",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "4b829179-da9e-4e4b-ad8a-e8340dceb72a",
"name": "QA_testAudiocodesLiveCloudSP2_Calling_AC_EMEA_oc2-fmcuc",
"enviroment": null,
"region": "EMEA",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc2.customers.fmcuc.com",
"trunkId": "ee839507-4776-4ba9-8e1c-9bce40ea2b50",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "538730f7-843c-4ae6-94a9-a5e70fc144b8",
"name": "QA_testAudiocodesLiveCloudSP2_Calling_AC_EMEA_all-fmcuc",
"enviroment": null,
"region": "EMEA",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc1.customers.fmcuc.com",
"trunkId": "f304071f-9ce4-4a15-84c2-c1b136b3b03e",
"matchingSbcList": []
},
{
"trunkFqdn": "oc2.customers.fmcuc.com",
"trunkId": "ee839507-4776-4ba9-8e1c-9bce40ea2b50",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "8d7a1410-6d5f-4169-8966-3afa97a96e29",
"name": "PROD_testAudiocodesLiveCloudSP2_Calling_EMEA_all-es",
"enviroment": null,
"region": "EMEA",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc1.customers.audio-codes.es",
"trunkId": "ec76b99e-9d8a-4104-b8fe-e210e633ffa4",
"matchingSbcList": []
},
{
"trunkFqdn": "oc2.customers.audio-codes.es",
"trunkId": "24d4cb9f-cc3b-40a1-b8dc-5327419a43f4",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "e1eaa11c-4133-4de2-b3a4-43e0df9400b3",
"name": "QA_testAudiocodesLiveCloudSP2_Calling_AC_EMEA_oc-all-es",
"enviroment": null,
"region": "EMEA",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc1.customers.audio-codes.es",
"trunkId": "ec76b99e-9d8a-4104-b8fe-e210e633ffa4",
"matchingSbcList": []
},
{
"trunkFqdn": "oc2.customers.audio-codes.es",
"trunkId": "24d4cb9f-cc3b-40a1-b8dc-5327419a43f4",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "5f3fbb3b-df9b-483d-b294-c7eb01e22aac",
"name": "PROD_testAudiocodesLiveCloudSP2_Calling_AC_EMEA_Sandbox2",
"enviroment": null,
"region": "EMEA",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc1.sandbox2.audiocodes.be",
"trunkId": "c3014d3d-c787-4ae2-b008-0f53e8b1defe",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "6543d4a3-7605-4656-ae5c-889f91fc6f9d",
"name": "PROD_testAudiocodesLiveCloudSP2_Calling_AC_NOAM_sandbox3us",
"enviroment": null,
"region": "NOAM",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc1.sandbox3us.audiocodes.be",
"trunkId": "fd64fa85-95ba-47d5-9284-3380692b9bae",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "540c64ef-0663-4a50-b8c3-aeca9f437d24",
"name": "PROD_testAudiocodesLiveCloudSP2_Calling_AC_FMC_NOAM_Sandbox2",
"enviroment": null,
"region": "NOAM",
"carrier": null,
"offerTypes": [
{

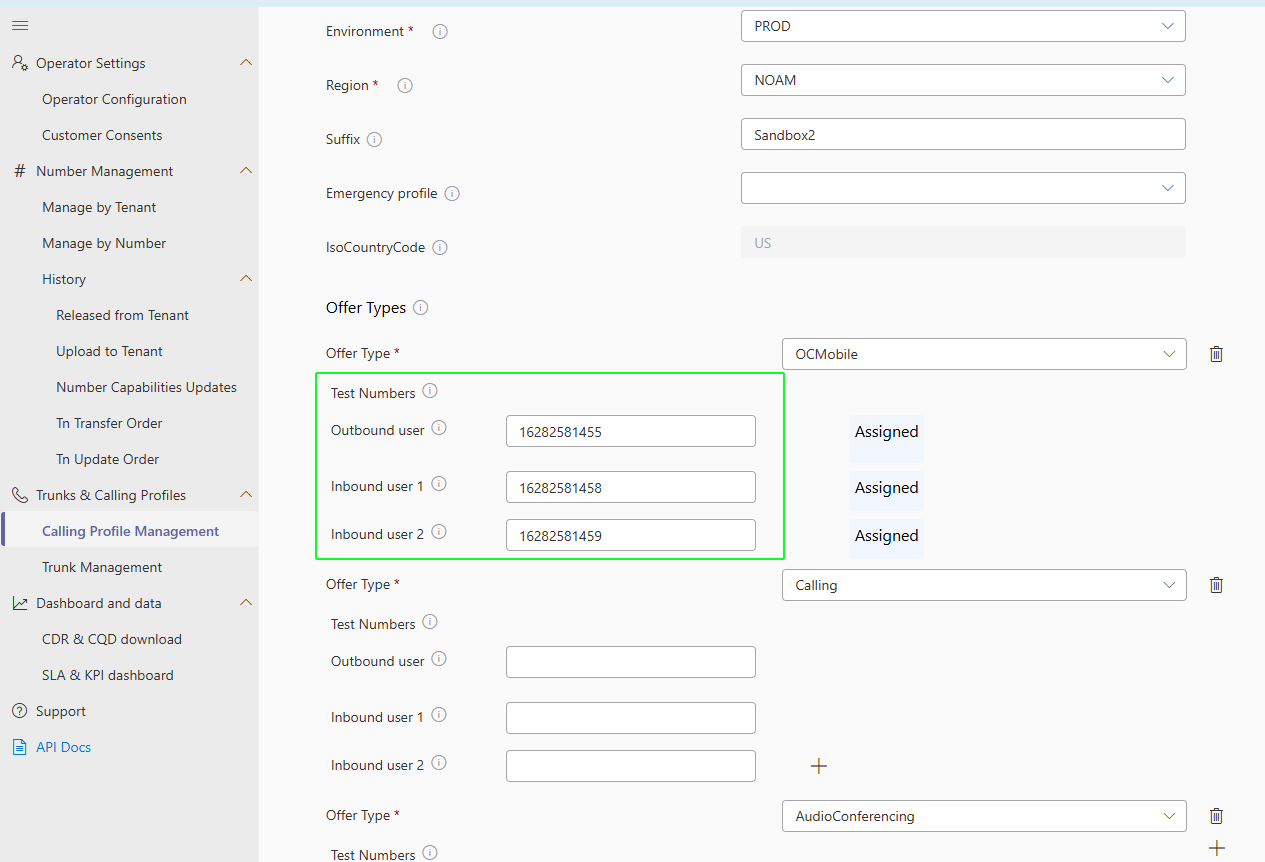

"offerTypeName": "OCMobile",
"testNumbers": [
"16282581455",
"16282581458",
"16282581459"
]
},
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc1.sandbox2.audiocodes.be",
"trunkId": "c3014d3d-c787-4ae2-b008-0f53e8b1defe",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "Failed"
}
},
{
"additionalSbcList": [],
"callingProfileId": "f3197662-970c-4520-82bd-a61724114258",
"name": "QA_testAudiocodesLiveCloudSP2_Calling_AC_EMEA_livesaas",
"enviroment": null,
"region": "EMEA",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "qa-mgmt-sbclivesaas.customers.fmcuc.com",
"trunkId": "1f71c503-8723-40ac-a99d-66f4a2d9c1ee",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "5833f9f6-a792-4dde-a963-4097feb620f2",
"name": "PROD_testAudiocodesLiveCloudSP2_Calling_NOAM",
"enviroment": null,
"region": "NOAM",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": [
" +16282581451",
" +16282581456",
" +16282581457"
]
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc1.sandbox2.audiocodes.be",
"trunkId": "c3014d3d-c787-4ae2-b008-0f53e8b1defe",
"matchingSbcList": []
}
],
"validation": {
"Calling": "Failed",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "54895471-54c2-4ced-8469-b847743320bb",
"name": "QA_testAudiocodesLiveCloudSP2_FMC_Calling_NOAM_OCM",
"enviroment": null,
"region": "NOAM",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "OCMobile",
"testNumbers": []
},
{
"offerTypeName": "Calling",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "1bb8f08d-9932-48c5-8456-2633f366d22e",
"name": "PROD_testAudiocodesLiveCloudSP2_Calling_AC_NOAM_SB1_SP2_US",
"enviroment": null,
"region": "NOAM",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "sbc1-sp2-us.sandbox1.audiocodes.be",
"trunkId": "342fd8ff-edce-4a42-97f0-d48ad0112525",
"matchingSbcList": [
{
"sbcId": 5,
"fqdn": "sbc1-sp2-us.sandbox1.audiocodes.be",
"ipAddress": "1.1.1.1",
"name": "Service Provider2 SBC"
}
]
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "19f5c9b5-d738-4b0d-b8a5-677f75712244",
"name": "PROD_testAudiocodesLiveCloudSP2_Calling_NOAM_SB1_Call",
"enviroment": null,
"region": "NOAM",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "oc1.sandbox2.audiocodes.be",
"trunkId": "c3014d3d-c787-4ae2-b008-0f53e8b1defe",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "9ee74ae1-c9f6-4742-a19f-ef1542123269",
"name": "QA_testAudiocodesLiveCloudSP2_Calling_AC_EMEA_shaib-sbc",
"enviroment": null,
"region": "EMEA",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "qa-shaib-sbc1.customers.fmcuc.com",
"trunkId": "7e0302fe-864a-48d2-b0a5-1ab2220fb402",
"matchingSbcList": []
},
{
"trunkFqdn": "qa-shaib-sbc2.customers.fmcuc.com",
"trunkId": "099cf493-f109-48ff-a745-9aa360f965e4",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "c8b5f00e-c612-4bcb-adbc-ef5b679927fe",
"name": "PROD_testAudiocodesLiveCloudSP2_AC_EMEA_1234567890",
"enviroment": null,
"region": "EMEA",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "ea335d40-5f82-48e9-933a-88001c88c976",
"name": "QA_testAudiocodesLiveCloudSP2_Calling_AC_NOAM_sb1",
"enviroment": null,
"region": "NOAM",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "sbc1-sp2-us.sandbox1.audiocodes.be",
"trunkId": "342fd8ff-edce-4a42-97f0-d48ad0112525",
"matchingSbcList": [
{
"sbcId": 5,
"fqdn": "sbc1-sp2-us.sandbox1.audiocodes.be",
"ipAddress": "10.0.2.4",
"name": "Service Provider2 SBC"
}
]
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "00905c48-bd70-4532-8594-5d96340889bb",
"name": "QA_testAudiocodesLiveCloudSP2_Calling_AC_APAC_Softbank",
"enviroment": null,
"region": "APAC",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "OCDemoCustSBC.sandbox3.audiocodes.be",
"trunkId": "774b3417-9cc6-401f-b485-1a47dcac13b3",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "63b8e93f-34f1-4a26-9034-a8aa8f2a349f",
"name": "QA_testAudiocodesLiveCloudSP2_Calling_AC_APAC_SoftBYOC",
"enviroment": null,
"region": "APAC",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "OCDemoCustSBC.sandbox3.audiocodes.be",
"trunkId": "774b3417-9cc6-401f-b485-1a47dcac13b3",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
},
{
"additionalSbcList": [],
"callingProfileId": "eb849194-ab69-4333-aa50-fd6c7ec22956",
"name": "QA_testAudiocodesLiveCloudSP2_Calling_AC_NOAM_Bahir",
"enviroment": null,
"region": "NOAM",
"carrier": null,
"offerTypes": [
{
"offerTypeName": "Calling",
"testNumbers": []
},
{
"offerTypeName": "AudioConferencing",
"testNumbers": []
}
],
"emergencyDialStrings": [],
"isEmergencyProfile": false,
"emergencyProfileId": null,
"trunksEnrolled": [
{
"trunkFqdn": "qa-shaib-sbc3-oc.customers.fmcuc.com",
"trunkId": "9e3dd4e6-f86f-44cf-947d-ac52011dfd45",
"matchingSbcList": []
}
],
"validation": {
"Calling": "NotRun",
"AudioConferencing": "NotRun",
"OCMobile": "NotRun"
}
}
]Responses
| ■ | 200 Success |
|
Parameters |
Type |
Description |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
additionalSbcList |
|||||||||||
|
callingProfileId |
string |
Calling Profile Id |
|||||||||
|
name |
string |
Name of the calling profile. |
|||||||||
|
environment |
string |
|
|||||||||
|
region |
string |
Name of the Live Platform region. |
|||||||||
|
carrier |
|
Name of the SBC Proxy Set. |
|||||||||
|
offerTypes |
list array |
|
|||||||||
|
offerTypeName |
string |
|
|||||||||
|
testNumbers |
string |
List of test numbers:
These numbers are used for the Validation tests (see 'validation' below).
|
|||||||||
|
emergencyDialStrings |
string |
List of emergency dial prefixes. |
|||||||||
|
isEmergencyProfile |
boolean default: true |
Indicates whether an emergency profile is enabled for the Calling Profile. |
|||||||||
|
emergencyProfileId |
string |
The Id of the Emergency Profile. |
|||||||||
|
trunksEnrolled |
list array |
|
|||||||||
|
trunkFqdn |
string |
FQDN of the SBC device that is enrolled as a Microsoft Operator Connect Calling trunk. |
|||||||||
|
trunkId |
string |
Id of the SBC device that is enrolled as a Microsoft Operator Connect Calling trunk. |
|||||||||
|
matchingSbcList |
list array |
Matching name and IP address of the SBC device enrolled as a Microsoft Operator Connect Calling trunk '(SBC From Trunks' value in the Calling Profile page in the Calling Profile page. This list appears when the FQDN of the SBC is the same as the PSTN trunk FQDN |
|||||||||
|
sbcId |
integer |
Id of the SBC device in the Live Platform database (see Get SBC Devices). |
|||||||||
|
fqdn |
|
The FQDN of the SBC device. |
|||||||||
|
ipAddress |
|
The IP address of the SBC device. |
|||||||||
|
name |
|
The name of the SBC device in Live Platform. |
|||||||||
|
validation |
list array |
Indicates whether a validation test has been run on the Operator Connect portal for one of the following Offer types:
|
|||||||||
|
Calling |
string |
Indicates whether 'Calling' Offer type validation test has been run in the Operator Connect portal. |
|||||||||
|
AudioConferencing |
string |
Indicates whether 'AudioConferencing' Offer type validation has been run in the Operator Connect portal. |
|||||||||
|
OCMobile |
string |
Indicates whether 'OCMobile' Offer type validation has been run in the Operator Connect portal. |
