Two-Stage Dialing

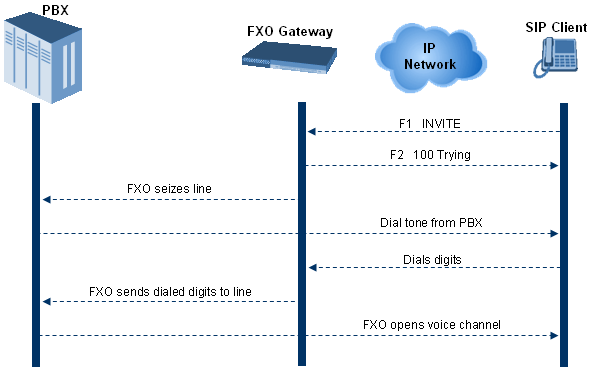

Two-stage dialing is when the IP caller is required to dial twice. The caller initially dials to the FXO device and only after receiving a dial tone from the PBX (via the FXO device), dials the destination telephone number.

Two-stage dialing implements the Dialing Time feature. Dialing Time allows you to define the time that each digit can be separately dialed. By default, the overall dialing time per digit is 200 msec. The longer the telephone number, the greater the dialing time.

The relevant parameters for configuring Dialing Time include the following:

■

DTMFDigitLength (100 msec): time for generating DTMF tones to the PSTN (PBX) side

■

DTMFInterDigitInterval (100 msec): time between generated DTMF digits to PSTN (PBX) side
