Configuring Port Mirroring
You can enable the device to do port mirroring of network traffic (packets) passing (incoming, outgoing or both) through a specific port. When port mirroring is enabled, the device copies all traffic passing through the specified port and sends it to a specific port for analysis or monitoring.
To configure port mirroring through the CLI, use the port-monitor command on the port interface that you want to mirror.
|
➢
|
To configure port mirroring: |
|
1.
|

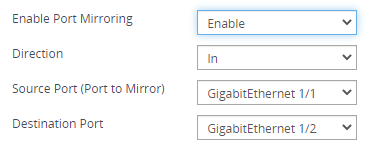

Open the Port Mirroring page (Troubleshoot menu > Troubleshoot tab > Debug folder > Port Mirroring). |
|
2.
|
From the 'Enable Port Mirroring' drop-down list, select Enable: |
|
3.
|
From the 'Direction' drop-down list, select one of the following: |
|
●
|
In = mirrors incoming traffic |
|
●
|
Out = mirrors outgoing traffic |
|
●
|
Both = mirrors incoming and outgoing traffic |
|
4.
|
From the 'Source Port (Port to Mirror)' drop-down list, select the port that you want to mirror. |
|
5.
|
From the 'Destination Port' drop-down list, select the port to where you want the mirrored (copied) traffic to be sent. |
