Viewing WAN and LAN Port Information

You can view information on the device's WAN and LAN ports in the Web interface.

WAN and LAN interfaces are also displayed only if they're configured through the Web interface.

➢

To view LAN and WAN port information:

■

Click the Network View home

icon (Setup menu > IP Network tab > Network View)

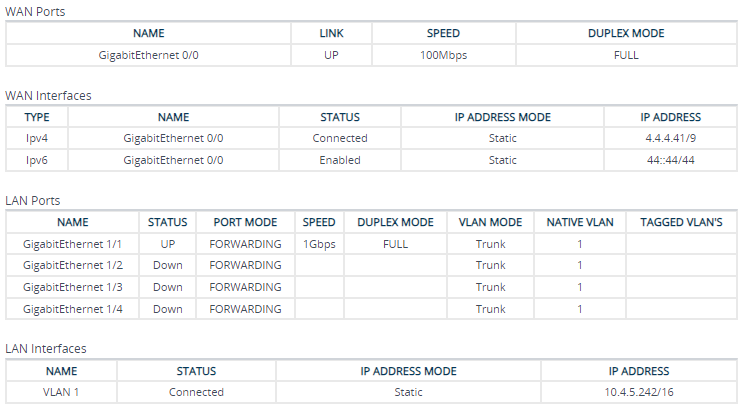

Network View Table Description

Parameter	Description
WAN Ports
Name	Displays the interface name of the WAN port.
Link	Displays the status of the link ("Up" or "Down").
Speed	Displays the speed of the WAN port.
Duplex Mode	Displays the port duplex mode ("Full" or "Half").
LAN Ports
Name	Displays the interface name of the WAN port.
Status	Displays the status of the link ("Up" or "Down").
Port Mode	Displays the port mode ("Forwarding").
Speed	Displays the speed of the WAN port.
Duplex Mode	Displays the port duplex mode ("Full" or "Half").
VLAN Mode	Displays the VLAN Mode.
Native VLAN	Displays the native VLAN ID.
Tagged VLANs	Displays tagged VLANs.
