Viewing Backup Group Status
You can view the status of the configured backup group on the Backup Group Status page. This page displays the interfaces comprising the backup group, the priority of each interface, and the interface that is currently active.
|
●
|
This section is applicable only to MP-532. |
|
●
|
To view this information in the device's CLI, use the command show data backup-group. |
|
●
|
To configure the backup group, use the CLI command configure data > backup-group. |
|
➢
|
To view backup group status: |
|
1.
|
Open the Backup Group Status page (Monitor menu > Monitor tab > Network Status folder > Backup Group Status). |
|
2.
|

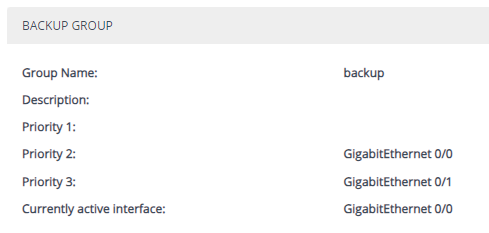

The following information is displayed: |
|
●
|
'Group Name': Name of the backup group. |
|
●
|
'Description': Description (if configured) of the backup group. |
|
●
|
'Priority 1-3': Interface per priority level. |
|
●
|
'Currently active interface': Interface in the backup group that is currently active. |
