Set up RXV200 with the Initial Configuration Wizard

The Initial Configuration Wizard allows you to easily set up your MTRA with either of the following input devices:

■

For systems with an RX-PAD, from the RX-PAD after pairing (see Setting up MTRA with RX-PAD)

■

For systems with a touch screen (RXV200-B09 Bundle), from the RXV200 after pairing with the touch screen (see Setting up RXV200 with Touch Screen)

Setting up MTRA with RX-PAD

➢

To set up your MTRA:

1.

Connect the RXV200 and the RX-PAD to the power supply and the same local network.

●

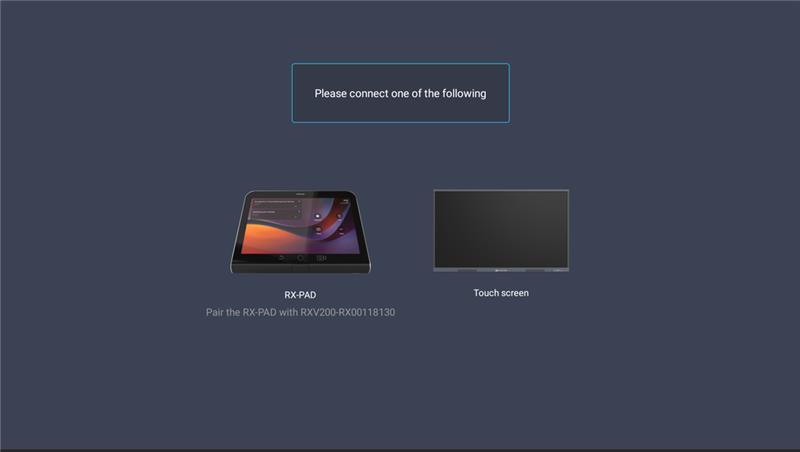

The RXV200 starts up and prompts you to connect an RX-PAD or a touch screen.

●

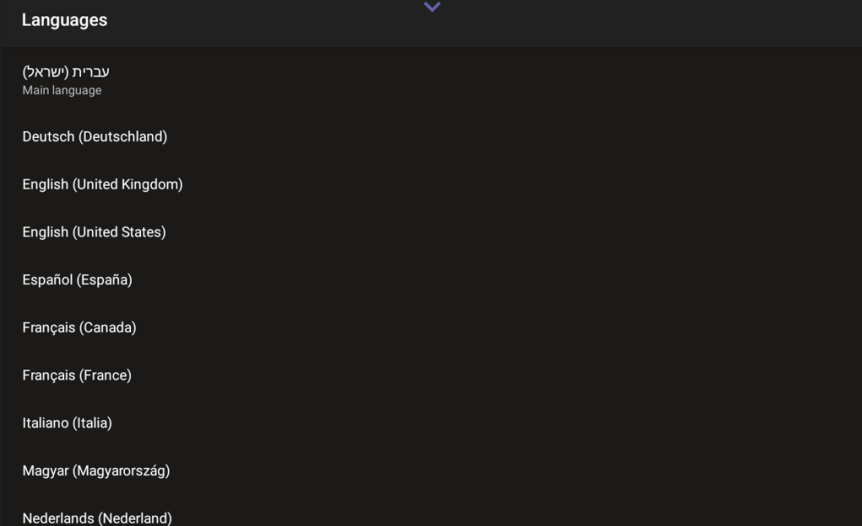

The RX-PAD starts up and prompts you to select a language for the UI.

2.

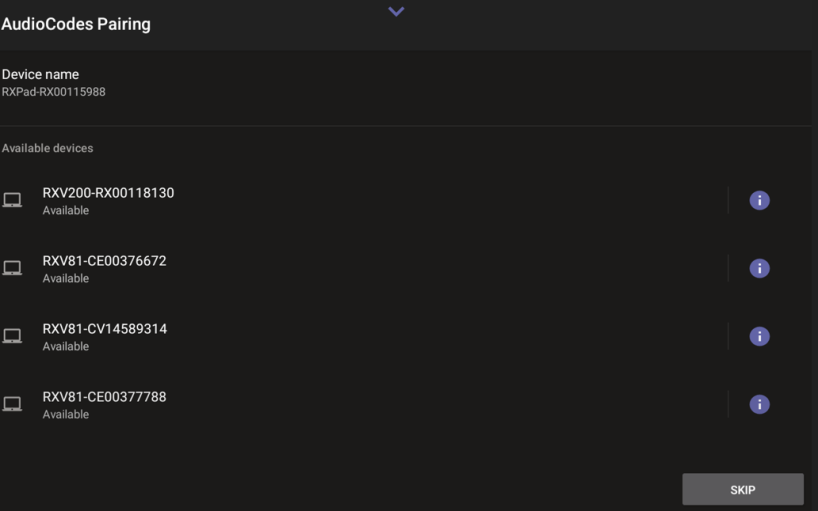

On the RX-PAD, select the requested language. The AudioCodes Pairing page is displayed, listing the available MTRAs:

3.

Select the relevant RXV200. The RX-PAD finalizes the pairing process and prompts you to select a bundle.

4.

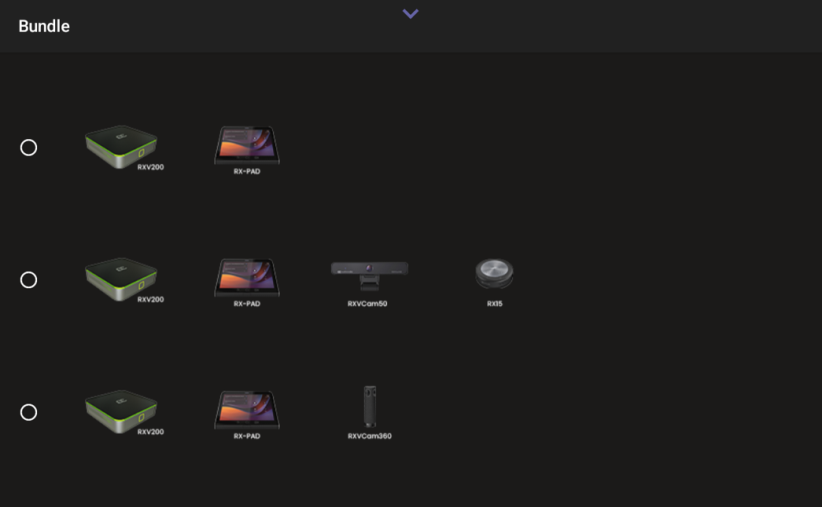

Select the bundle (see Bundles for an explanation). The RX-PAD assigns the bundle with the RXV200 and prompts you to change the (default) admin password.

5.

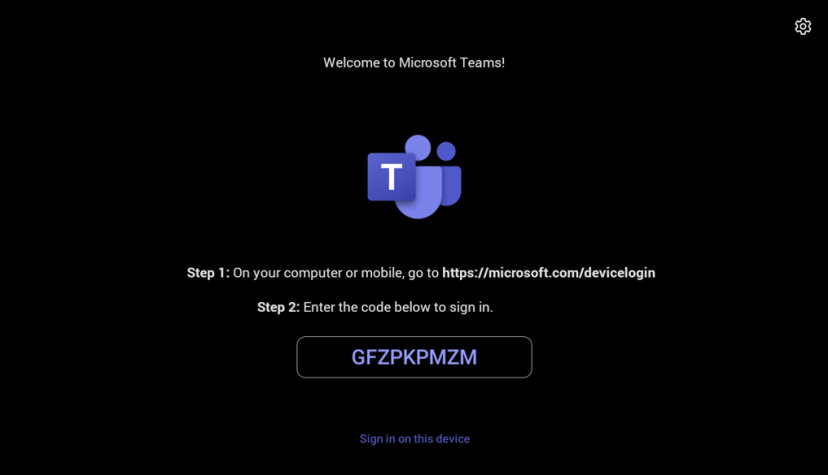

After this process is completed, the Microsoft Teams sign-in page is displayed on both devices, showing the code you need to sign into your Microsoft account.

6.

On both devices, sign in to your Microsoft account.

Setting up RXV200 with Touch Screen

➢

To set up your RXV200:

1.

Connect the RXV200 and the touch screen to the power supply and the same local network. The RXV200 automatically identifies and pairs with the touch screen.

2.

When the pairing is complete, the RXV200 prompts you to select the language for the UI. Select the requested language.

3.

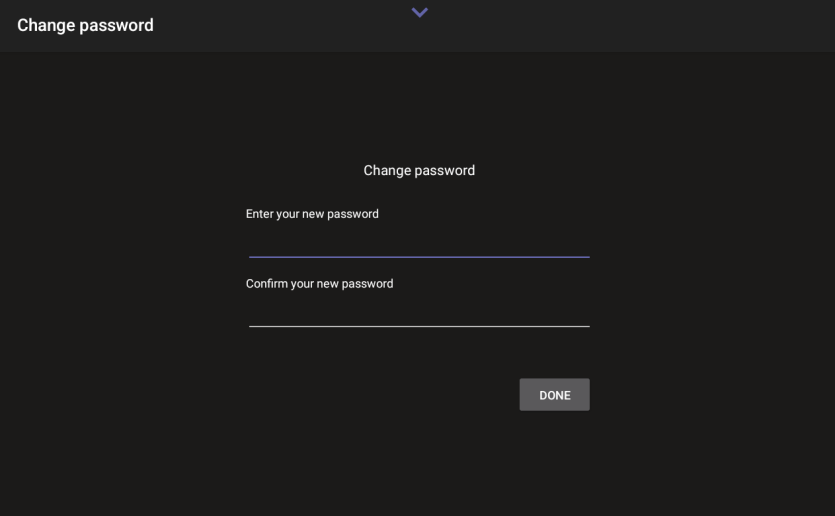

Select the requested language. You are prompted to change the (default) admin password.

4.

After changing the password, the Microsoft Teams sign-in page is displayed on both devices, showing the code you need to sign into your Microsoft account.

5.

Sign in.
