Connecting to AC Power

The device provides two hot-swappable Power Supply modules for load-sharing and power redundancy in case of failure in one of the modules. To replace a faulty Power Supply module, see Replacing Power Supply Modules.

The device receives power from a standard AC electrical outlet. The connection is made using the supplied AC power cord.

The following table lists the AC power supply specifications:

AC Power Specifications

Item	Description
Power Supply	Hot swappable, load-sharing, 1+1 power redundant
Input Ratings	100-240 VAC; 4-9 A, 50-60 Hz
Inlet type	C-14
Safety Standards	IEC 62384-1 and UL 62384-1

●

For efficient power redundancy, make sure that you connect each Power Supply module to a different AC power source.

●

The two AC power sources must have the same ground potential.

●

The device must be connected (by service personnel) to a socket-outlet with a protective earthing connection.

●

Use only a certified 3-conductor power cord, utilizing 18 AWG or 1 mm² wires, and no longer than 4.5 meters (14.8 ft).

●

If a failure occurs in any one of the Power Supply modules, replace the module immediately. For replacing the Power Supply modules, see Replacing Power Supply Modules.

ご注意

本製品に添付の電源ケーブルは、Mediant 3100
に専用設計されているため、汎用性がありません. 本電源ケーブルを他の機器に使用されないよう、ご注意ください.

➢

To connect the device to power:

Plug the female end of the AC power cord (supplied) into the power inlet.

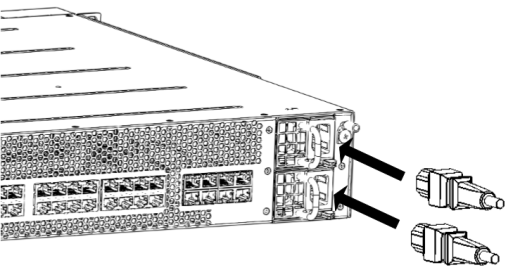

Connecting to Power

Connect the male end of the power cord to a standard AC electrical outlet.

If you are using both Power Supply modules, repeat steps 1 through 2 for connecting the second Power Supply module, but using the power socket associated with the second Power Supply module and connecting this to a different supply circuit.

Turn on the power at the power source (if required).

Check that the LED on each Power Supply module (front panel) is lit green, indicating that the Power Supply is operating properly.
