Configuring Caller ID Permissions
The Caller ID Permissions table lets you enable caller ID generation per FXS port for IP-to-Tel calls.
| ● | The feature is applicable only to analog interfaces (FXS ). |
| ● | For ports that are not configured in the table, Caller ID is according to the global parameter, as described in Enabling Caller ID Generation and Detection on Tel Side. |
The following procedure describes how to configure Caller ID permissions through the Web interface. You can also configure it through ini file [EnableCallerID] or CLI (configure voip > gateway analog enable-caller-id).
| ➢ | To configure Caller ID permissions per port: |
| 1. | Open the Caller ID Permissions table (Setup menu > Signaling & Media tab > Gateway folder > Analog Gateway > Caller ID Permissions). |

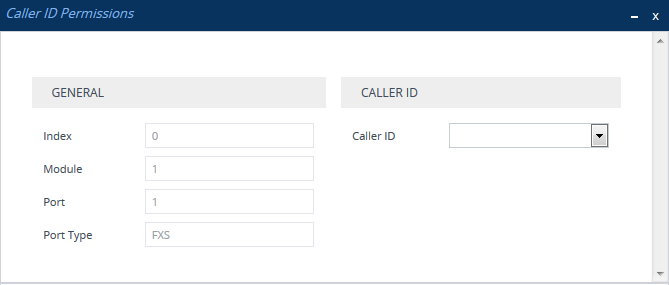

| 2. | Select the row corresponding to the port that you want to configure, and then click Edit; the following dialog box appears: |
| 3. | Configure a Caller ID permission per port according to the parameters described in the table below. |
| 4. | Click Apply. |
Caller ID Permissions Table Parameter Descriptions
|
Parameter |
Description |
||||||
|---|---|---|---|---|---|---|---|
| General | |||||||
|
'Index' [Index] |
Defines an index number for the new table row. Note: Each row must be configured with a unique index. |
||||||
|
'Module' [Module] |
(Read-only) Displays the module |
||||||
|
'Port' [Port] |
(Read-only) Displays the port number. |
||||||
|
'Port Type' [PortType] |
(Read-only) Displays the port type (e.g., FXS). |
||||||
|
Caller ID |
|||||||
|
'Caller ID' caller-id [IsEnabled] |
Enables Caller ID generation (FXS) for the port.
|
||||||
