Exporting Dial Plans
You can export your configured Dial Plans in comma-separated value (CSV) file format to a folder on the local PC running the Web client.
The CLI lets you export Dial Plans and Dial Plan rules to a remote server, using the export-csv-to command under (config-voip)# sbc dial-plan. For more information, refer to the document CLI Reference Guide.
|
➢
|
To export all configured Dial Plans with their corresponding Dial Plan rules: |
|
1.
|
Open the Dial Plan table. |
|
2.
|

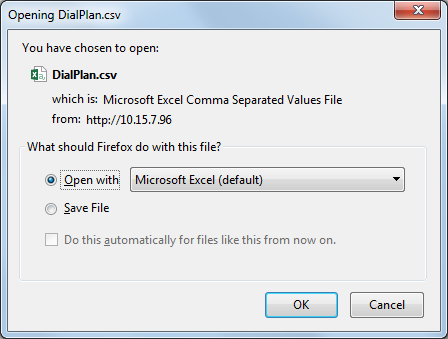

From the 'Action' drop-down menu, choose Export; the following dialog box appears: |
|
3.
|
Select the Save File option, and then click OK; the file is saved to the default folder on your PC for downloading files. |
|
➢
|
To export Dial Plan rules of a specific Dial Plan: |
|
1.
|
Open the Dial Plan table. |
|
2.
|
Select the required Dial Plan, and then click the Dial Plan Rule link; the Dial Plan Rule table opens, displaying the rules of the selected Dial Plan. |
|
3.
|
From the 'Action' drop-down menu, choose Export; a dialog box appears (as shown above). |
|
4.
|
Select the Save File option, and then click OK; the file is saved to the default folder on your PC for downloading files. |
