SIP Connections

SIP connections must be added between your Live Platform and the PSTN trunk. A unique entity is created for all monitoring and reporting of the service. You cannot upload numbers to your services until SIP connections have been added. The following SIP Connections can be created:

■

Live UC Connection (see Add Live UC SIP Connection)

■

PSTN SIP Trunk (see Add PSTN SIP Connection)

■

Application Service or Stand-alone Telephone Device (see Add Sub Service or Remote Device)

■

Imported IP Group from SBC for Calls and Voice Quality Monitoring (see Import IP Group from SBC)

➢

To manage SIP Connections

1.

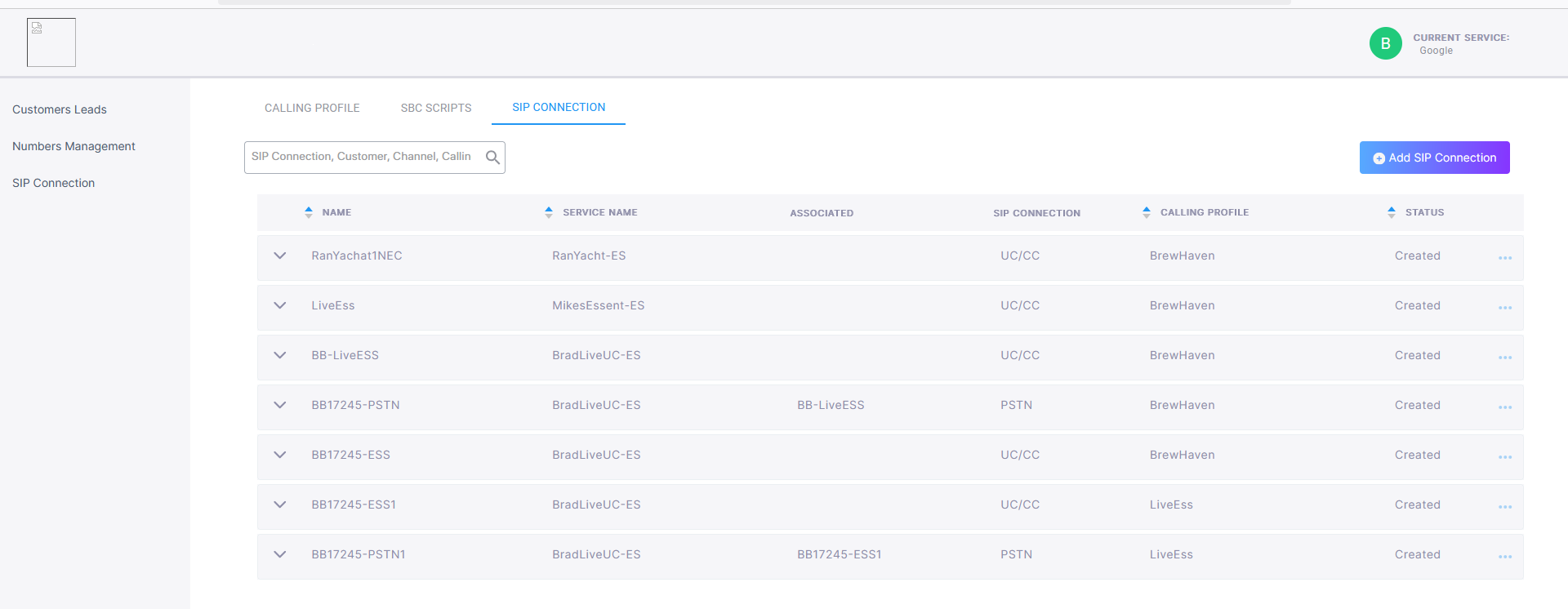

In the Navigation pane, select SIP Connection, and then select the SIP Connection tab.

The table below describes the parameters in this page.

Parameter	Description
Name	Descriptive name of the SIP Connection.
Service Name	The name of the attached service.
Associated	The Associated paired SIP Connection: ■ The CX device (UC/CC connection) must be associated with a PSTN trunk. ■ The Sub service/Device must be associated with a PSTN trunk.
SIP Connection	The SIP Connection type: ■ UC/CC ■ PSTN ■ Sub Service/Device ■ Import
Calling Profile	The attached Calling Profile.
Status	One of the following statuses: ■ Defined – The SIP Connection has been defined in the database, however has not yet been created on the SBC. ■ Created – The SIP Connection has been created. ■ Cleaned – The SIP Connection has been removed from the SBC ■ Imported – The SIP Connection has been created from an IP Group imported from the SBC.
