Voca CIC

You can configure connection between the Direct Routing service and the Voca CIC service for sending calls to Voca through the SBC and for transferring calls from Voca CIC to Microsoft Teams. The Voca CIC DID assigned to handle incoming calls is tagged with a unique dial plan identifier to distinguish it from other call service types. For details how to configure the Voca CIC and Direct Routing connection, see Connect Voca CIC to Microsoft Direct Routing.

Hosted Essentials customers are billed for all uploaded numbers including both active and inactive DIDs.

See also Troubleshooting Loading Dial Plans and Customer Operator Prefix Management.

➢ To load numbers:
1. Do one of the following:
● In the Multitenant portal All Services page, click the SysAdmin link for the relevant Direct Routing service, and then in the Service portal Navigation pane, select Configuration > SIP Connections.
● In the Live Platform portal Services page, select the relevant service, from the Direct Routing drop-down, select Edit Service, and then in the Service portal Navigation pane, select Configuration > SIP Connections.

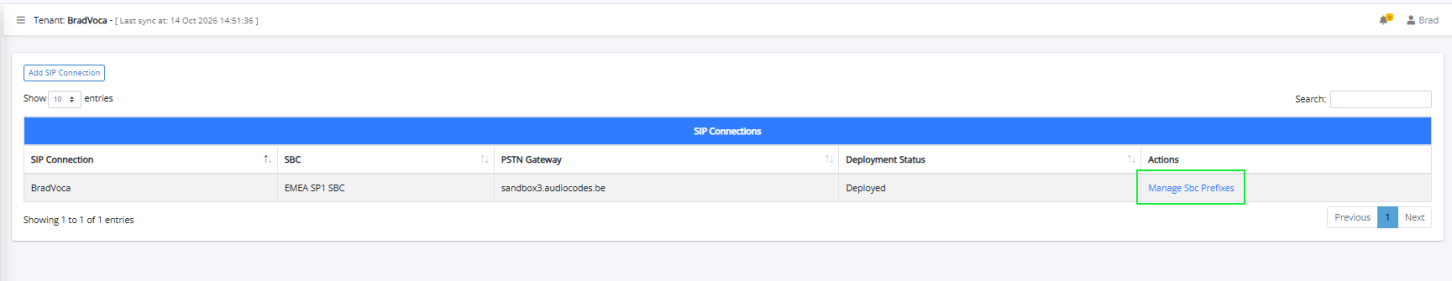

2. Select the SIP Connection for which you wish to configure SBC prefixes, and then click Manage SBC Prefixes.

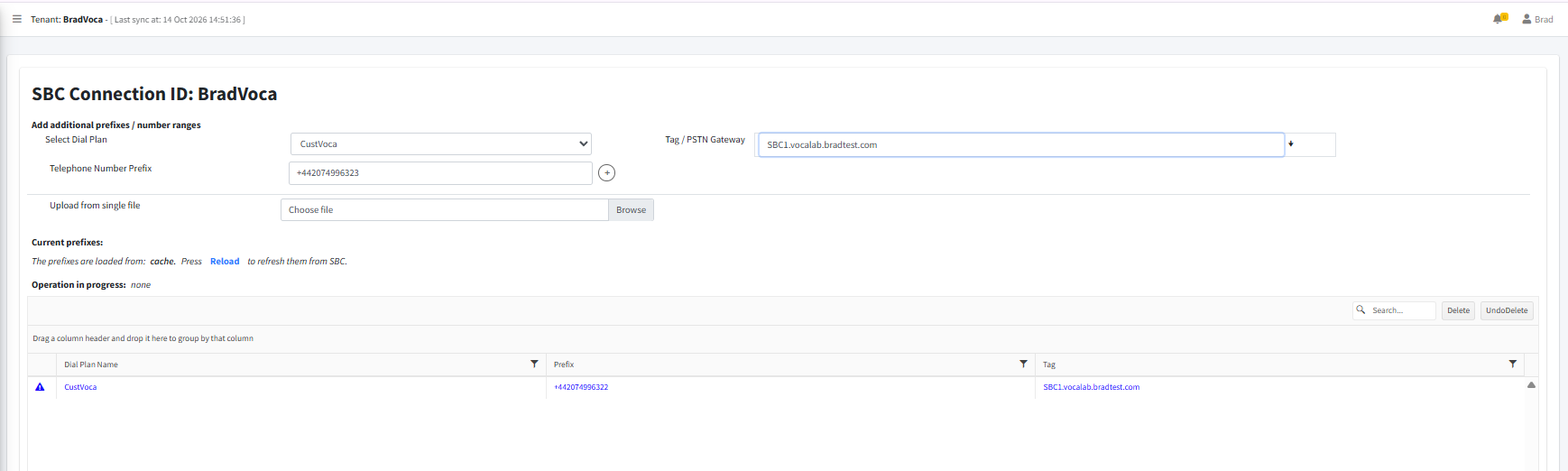

3. From the Select Dial Plan drop-down, select the CustVoca dial plan.

4. In the Telephone Number Prefix field, enter the E.164 telephone number whose incoming calls you wish to forward, and then click .

Prefixes should be configured as follows: 9304

All full numbers should be configured in E.164 format with the following validation rules:

● "+" sign.
● Country calling code (international).
● Local area code.
● Local telephone number or subscriber number.

The number has the following structure: [country code][area code][subscriber number].

Example United States Telephone number: +12127881500

● Country code: 1
● Area code: 212
● Subscriber number: 7881500

End customer operators cannot load number ranges and calling prefixes.

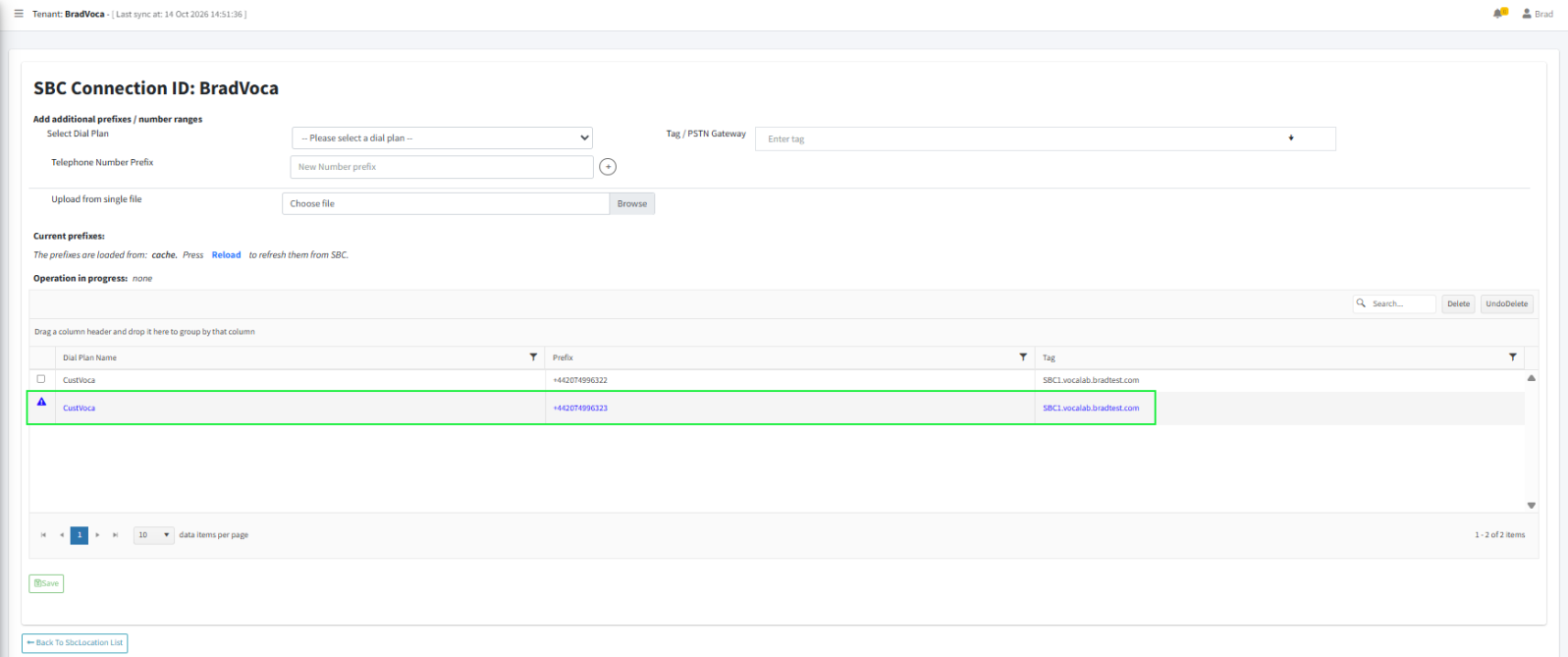

5. In the Tag/PSTN Gateway field, enter the PSTN Gateway for the Direct Routing service (see Load DIDs to Managed Service). The newly added numbers are displayed in blue in the dial plan table.

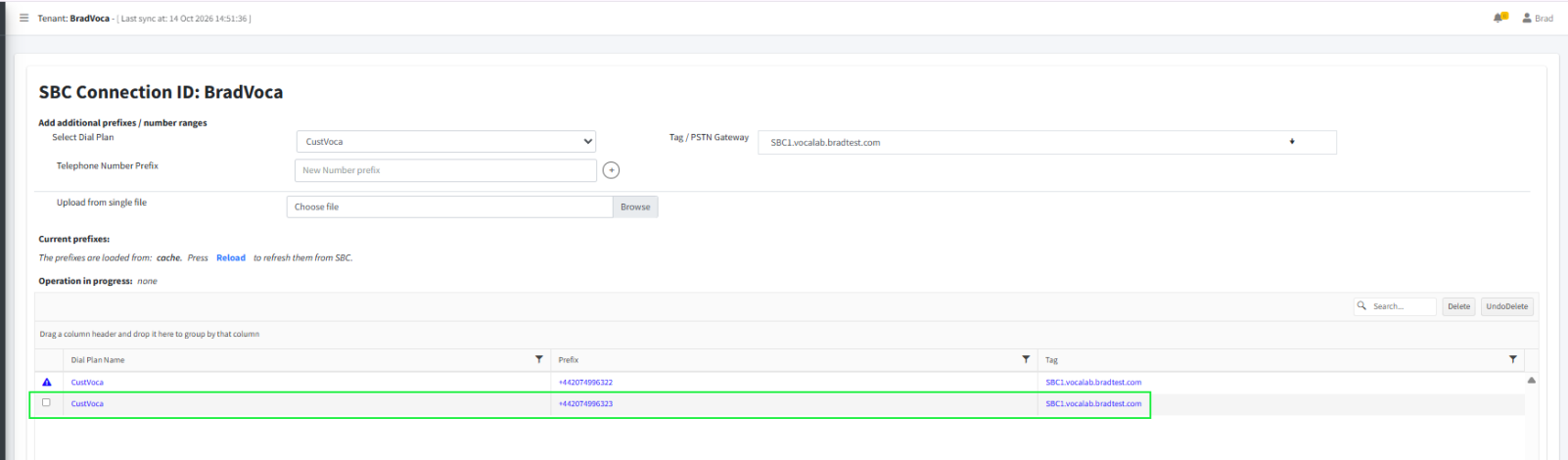

6. Click Save. The page is closed and the numbers are loaded to the SBC device. When you reopen the page, you see that the numbers that are displayed in blue are pending synchronization with the SBC device. Click Reload to refresh the page to view the numbers in the table after they have been synchronized with the SBC.

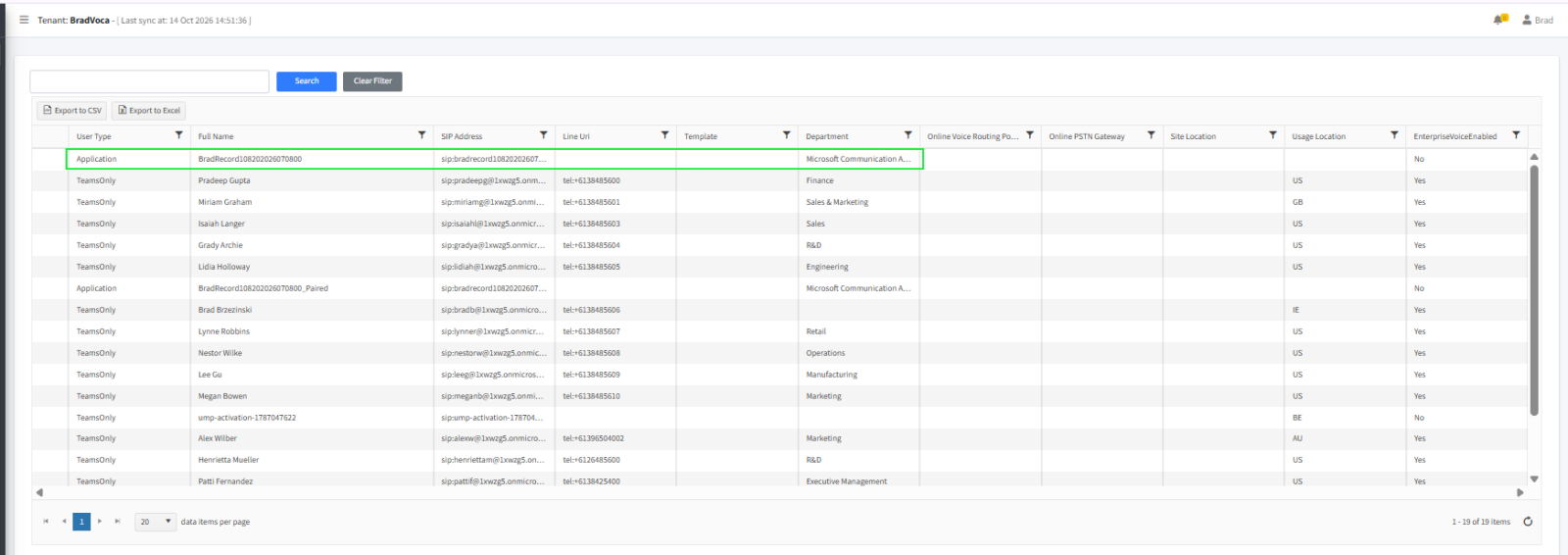

An Application entry is added to the User's table.
