Managing SIP connections

SIP connections must be added between your Live Platform and the PSTN trunk. A unique entity is created for all monitoring and reporting of the service. You cannot upload numbers to your services until SIP connections have been added. The following SIP Connections can be created:

■ PSTN SIP Trunk (see Add PSTN SIP connection)
■ Application Service or Stand-alone Telephone Device (see Add sub service or remote device)
■ Edit Existing SIP Connection (see Update SIP Connection)
➢ To manage SIP Connections

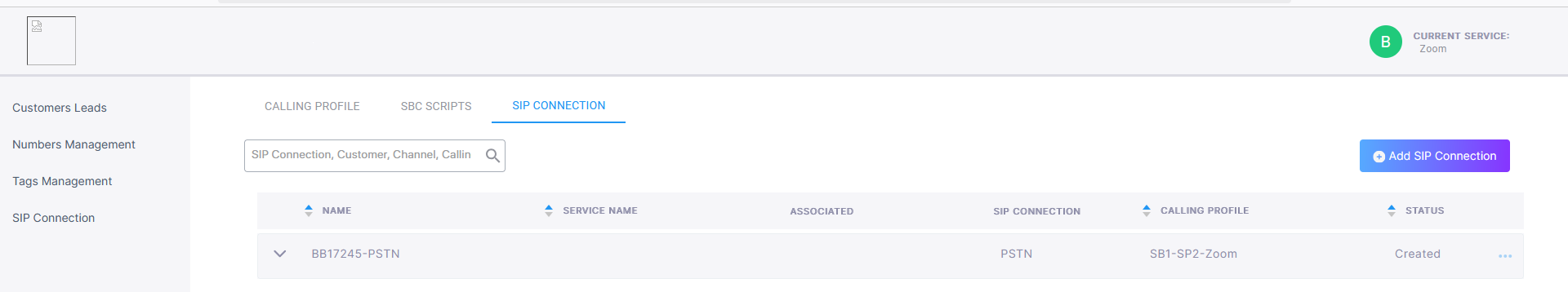

1. In the Navigation pane, select SIP Connection, and then select the SIP Connection tab.

The table below describes the parameters in this page.

Parameter

Description

Name

Descriptive name of the SIP Connection.

Service Name

The name of the attached service.

Associated

The Associated paired SIP Connection:

■ The CX device (UC/CC connection) must be associated with a PSTN trunk.
■ The Sub service/Device must be associated with a PSTN trunk.

SIP Connection

The SIP Connection type:

■ UC/CC
■ PSTN
■ Sub Service/Device
■ Import

Calling Profile

The attached Calling Profile.

Status

One of the following statuses:

■ Failed: The SIP Connection has been defined in the database, however has not yet been created on the SBC.
■ Created : The SIP Connection has been created.
■ Cleaned: The SIP Connection has been removed from the SBC.
■ Imported: The SIP Connection has been created from an IP Group imported from the SBC.
➢ To export the SIP connections to a CSV file:
1. In the SIP Connection tab, click Export CSV. The button is unavailable when the table has no SIP connections.

The CSV file is downloaded. The file name has the format <name>_yyyyMMdd_HHmmss.csv.

The file includes the following columns: Name, Display Name, Service name, Associated, Trunk Type, Direction, SIP Connection, Calling Profile, SBC, Status, Onboarding script name, Cleanup script name, Region, Channel, CID, Create Time and Sip Connection Description. Columns that are not relevant for your operator type or the service type are not included.

Channel operators can export only the SIP connections of their own channel.
