Call history and logs
The Call history screen lists every call Live Hub handled, with the most recent calls displayed first. It also shows the final outcome of each call. Open a call to see the complete picture: who participated, how the bot performed, what was said, the recording, the underlying SIP exchange, and how the call ended.
View call history
The Call history table lists your calls. Use the search box, date range, and filters to narrow it down to the calls you want to find.
To view your call history:
-
In the Navigation pane, select Calls.
The Call history tab opens by default.
-
In the search box, enter text to find specific calls. Search covers a period of up to 3 days.
-
Click Date & Time to set the period, and then:
- Select 24 Hours, 7 Days, 30 Days, or Custom, and then select the dates on the calendar.
- Optional: Under Time range, narrow it to a time of day.
- Click Apply.
-
Click the filters icon to show only records containing specific values.
- From the 'Column' drop-down list, select the column you want to test.
- From the 'Operator' drop-down list, select how to test it.
- In the 'Value' field, enter what to test it against.
-

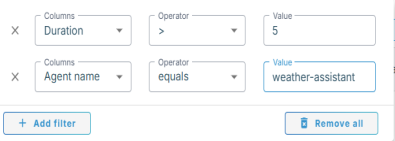

Click Add filter for a further condition. A call must match all the filters to appear in the table. To clear the filters again, click Remove all.
With no filters enabled, records appear in 'Setup time' order.
-
Click the refresh icon to reload the table.
The table displays times in your local time zone, but exported files use UTC.
Customize table display
Use the table settings to choose which columns the table shows.
To change the columns:
-

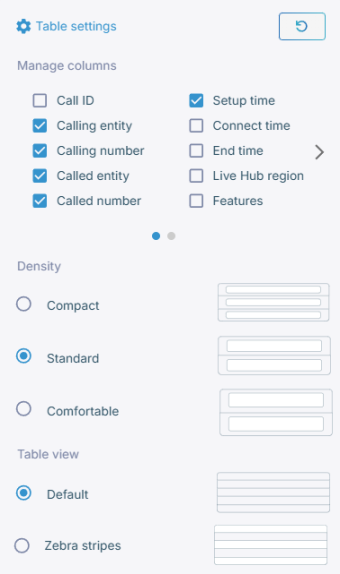

At the bottom right of the screen, click the table settings
icon.
-
Under 'Manage columns', select which columns to show. The columns span several pages; click the arrow to move between the pages. Beyond the defaults, you can add the call ID, connect and end times, Live Hub region, features, voice quality, bot conversation ID, campaign name and ID, tag, whether the call is shared with AudioCodes Support, insights, and per-call metrics such as LLM, tool, STT, TTS, and bot latency, and MOS.
-
Click Reset settings to put the columns back as they were.
Export call history
Download your call history for your records or analysis. Live Hub builds the file in the background and notifies you when it's ready.
To export your call history:
-
Click Export, and then select Export records to export the calls currently in view, with your filters applied.

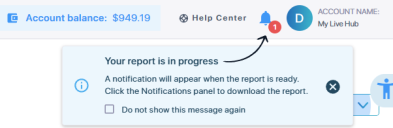

A notification appears stating the download status.
-
Click the notifications panel to download the report.
'Setup time', 'Connect time', and 'End time' in the file are UTC. The file also shows whether a call was shared with AudioCodes Support, matching the columns in Download call details.
-
To download a whole calendar month instead, regardless of the filters, click Export, and then select Export monthly records.
-
Select the month and year, and then click Export.
Analyze a call in detail
Select a call in the table to view all of its information. The pane that opens shows when the call ran and how it ended, who was on each end, how quickly the bot answered, the audio and the text of the conversation, the SIP messages behind it, the voice quality, and every field Live Hub recorded.
Which sections appear depends on the call. The pane can show:
Call actions
Select the call, and then click the ellipsis button in the upper-right corner of the pane. The available actions depend on the call and on your permissions:
| Action | What it does |
|---|---|
| Download call details | Saves this one call as calls_report.csv: the parties, times, duration, completion status, MOS values, campaign, tag, when the call has been shared with AudioCodes Support, when the share expires, who shared it, and what was shared. Times are UTC. |
| Delete call details | Removes the call's details. Live Hub warns you first: the details are permanently deleted after 60 days. |
| Search for related call records | Finds the other calls that are part of the same conversation, such as transfers or alternative routes. |
| View billing details | Shows what the call cost. Available only if you have permission to see billing; if the call was free, Live Hub tells you that instead of showing a cost breakdown. |
| Share call for troubleshooting | Shares the call's recording and transcripts with AudioCodes Support. |
Search for related call records finds calls that share a session ID — transfers and alternative routes that belong to the same conversation.
Share call for troubleshooting lets AudioCodes Support temporarily access the call's recording and transcripts to help investigate an issue. Access applies to this call only and, by default, expires automatically after 7 days.
To share a call with AudioCodes Support:
- Select the call, click the ellipsis button, and then select Share call for troubleshooting.
- Select which data to share: Call recording, Call transcripts, or both. Both are selected by default.
-
Click Share access.
The Call summary section now flags the call as shared.
If a call is already shared, selecting Share call for troubleshooting again shows who shared it and when access expires. Change what's shared if needed, then click Extend access to reset the expiry period, or Revoke access to end access immediately. Click Confirm selection to apply your changes.
Call summary
The top of the pane identifies the call and its two participants, 'Caller' and 'Callee'.
The header shows, in one line:
- the call ID, with a copy icon beside it
- the completion status, for instance Completed
- the services that ran on the call, such as recording or voice translation
- the start time and the duration
Below the header, 'Caller' and 'Callee' each show the participant type, such as a phone number, a bot connection, a SIP connection, Teams, WhatsApp, or Click-to-call, and the participant's number. Between them, the pane rates the voice quality, for instance Good.
When the call is shared with AudioCodes Support, this section shows "The call info is shared with AudioCodes support team." in red.
Bot latency
The Bot latency section breaks down the delays that occurred during the call, so you can see whether a slow reply came from speech recognition, the bot, or speech synthesis. The total latency and each type's average appear beside the bar. Hover over a part of the bar to view the average, maximum, and median for that latency type.
- STT latency — the time between the end of the caller's spoken input and receiving the final recognition result from speech-to-text.
- Bot latency — the time between sending a request to the bot and receiving the response.
-
TTS latency — the time between accessing text-to-speech and getting the spoken response.
The graph shows only the latency types that are relevant and available for the call.
For the delay of each utterance, see Call recording.
Call recording
The Recording section plays a saved recording of the call. The player provides a waveform and the usual controls: play and pause, stop, skip back or forward 10 seconds, volume, zoom, and playback speed. The Download call recording and Delete call recording icons at the top right save or delete the recording.
Where a call produced several recordings, a 'Select recording' drop-down lists them by number and time span. Select one, and it loads into the player.
When the call has a transcript, three buttons above the waveform overlay events on it:
- DTMF: on by default. Marks each DTMF tone with a line on the waveform. Hover over the line to show the digit. Tones are only recorded when the DTMF setting is on for the bot connection. See Manage bot connections.
- STT delay: off by default. Highlights the time Live Hub spent recognizing each utterance, right after the caller finished speaking. Hover over the highlight to show the delay in milliseconds, for example STT 616 ms.
- TTS delay: off by default. Highlights the time Live Hub spent synthesizing each reply, right before the bot speaks. Hover over the highlight to show the delay in milliseconds, for example TTS 97 ms.
Live Hub does not remember these selections: closing and reopening the pane resets them to their defaults.
Click a highlight on the waveform to move playback to that point. The matching utterance is highlighted in the transcript.
To zoom in on the waveform, click Zoom and drag the slider, or scroll the mouse wheel over the waveform. Zooming helps you work with the timeline of a long call.
This highlighting marks the delay of each utterance. For the call's average and peak delays, see Bot latency.
Click the ellipsis button beside Call Recording, and then select one of the following:
- Download call recording: Saves the recording you are playing.
- Delete call recording: Removes the recording, after a confirmation. When the call has several, this reads Delete call recordings and removes all of them.
Where there is no player, the message explains why:
| Message | Meaning |
|---|---|
| The call was not recorded | Recording was not enabled for this call. The message links to how to enable it. |
| The recording is still being processed | The call ended moments ago and the recording isn't ready yet. Wait a moment, then reopen the call. |
| The recording is no longer available | The recording was deleted, or its retention period has passed. |
Recording is switched on per bot connection or per routing rule.
Call transcripts and logs
The Transcript tab displays the text of the call and lets you download it. Which transcripts are available depends on what the call used:
| Transcript | Contains |
|---|---|
| Simple | The dialog between the parties. |
| Enhanced | Includes the dialog, control and system messages, and the full content of each message the bot sent or received. |
| Real time translation | For a call that ran voice translation, the original text and its translation. |
| Agent assist bot | The assist bot's side of the call. |
For a call handled by an AI agent, the agent's own log has a tab of its own. See AI agent log.
The Open as a dialog icon opens the transcript full width, which is easier on a long call.
To download or delete a transcript:
-
Select the transcript you want.
-
Click More actions (the three-dot icon) at the top right of the transcript.
-
Select the download entry for that transcript: Download simple transcript, Download enhanced transcript, Download voice translation transcript, or Download assist bot transcript. To delete the transcript instead, select Delete transcript.
The download is a .json file named after the call:
Simple Call Transcript-{globalSessionId}.json for a simple transcript, and
Call Transcript-{globalSessionId}.json for an enhanced one. For what is inside,
see Call transcript.
A call with no transcript reports "The call transcript is not available": either the transcript was never made, or it has been deleted.
Transcription is switched on per bot connection. Live Hub deletes recordings and transcripts automatically once the account's retention period expires. See Recording and transcripts. Both can also be fetched through the API: see Recordings and Transcripts.
AI agent log
For a call handled by an AI agent, the AI agent log tab
shows the agent's side of the call in time order: when the agent started, what it heard
and answered, each call from the LLM to a tool and the tool that ran, and the
post-call summary. Each entry carries its timestamp, and entries from the agent are
prefixed with the agent's name, for example [weather-assistant] end_call.
Click an utterance to move the recording to that point.
To download or delete the AI agent log:
-
Select the AI agent log tab.
-
Click More actions (the three-dot icon) at the top right of the log.
-
Select Download AI agent log, or Delete AI agent log to remove it.
The download is a .json file named Call Conversation {botConversationId}.json.
SIP ladder

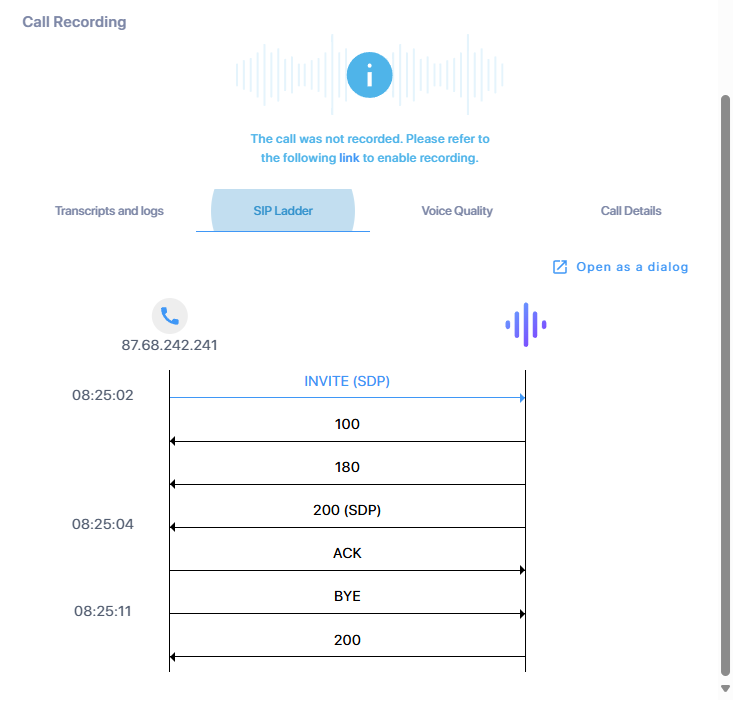

The SIP ladder section presents the SIP flow diagram of the selected call, showing the SIP messages sent and received in calls that include SIP or Teams participants.

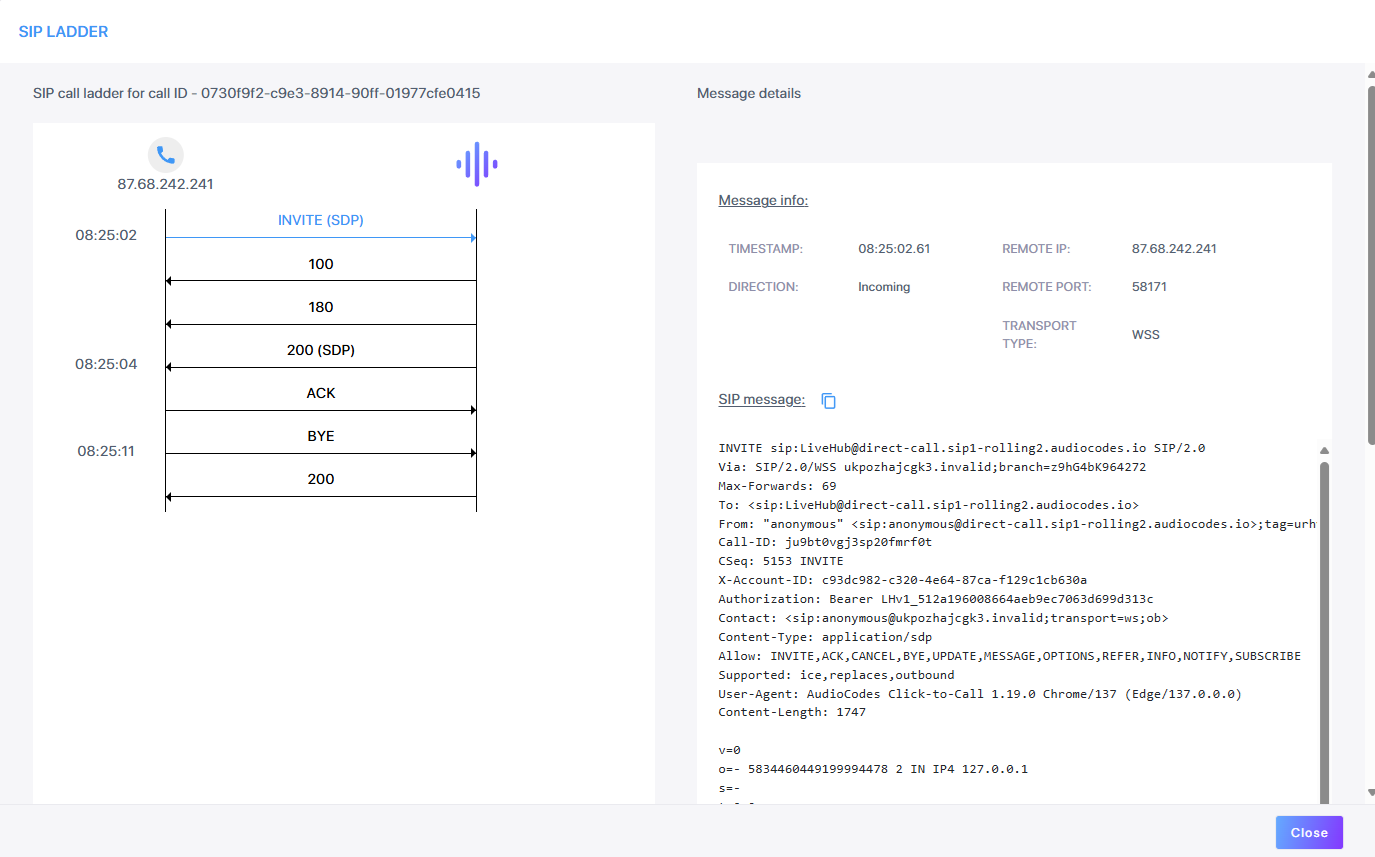

To view a specific SIP message, such as a SIP 180 response, click the Open as a dialog icon at the top right of the ladder, and then click the message line.
The message then appears in the 'Message details' pane, which has two areas: 'Message info', with the timestamp and call direction, and 'SIP message', with the actual message and its headers.
The SIP ladder supports calls that include Microsoft Teams and behave like regular SIP calls.
For the same thing through the API, see SIP ladder (call flow).
Voice quality
The Voice quality section shows the Mean Opinion Score (MOS) for the call, a numerical rating of voice quality on a scale of 1 to 5, where 1 indicates poor quality and 5 represents excellent quality. Live Hub interprets the values as Good, Fair, Poor, or Unknown. The tab shows a diagram of the actual MOS values in each direction.
A call with nothing measured reports "MOS values: no information."
Call details
The Call details section gathers detailed information about both the calling and called parties, the features used during the call, and the insights that help explain how and why the call ended:
- Live Hub region and bot conversation ID
- Completion status
- Termination side — who disconnected the call
- Termination phase — at which stage the disconnection occurred
- Alert duration — whether the call alerted the destination device and for how long
- Setup time, connect time, end time, and duration
- Tag — if a tag is configured on the routing rule, the tag appears here
The section also groups further call details into sections you expand as needed: the Calling and Called parties; the Speech providers and models used; the Call handling details, which tag how Live Hub handled the call, for example Test call and AI framework; the Services that ran; and the campaign the call belonged to.
For more details, see Call detail fields description.
Metrics
Metrics collected during calls are also available in call history, letting you investigate metric values at the individual call level.
Predefined metrics can appear as dedicated columns in the table, so that you can identify the calls worth opening, while custom Insights metrics are shown separately. The Metrics tab of a call gathers both in one place. See Metrics.
