License

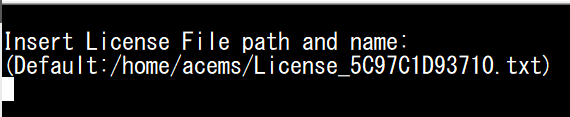

The License menu enables you to view the details of the existing license or upload a new license.

The OVOC server License (SBC License pool, IP Phones and Voice Quality) should have a valid license loaded to the server in order for it to be fully operational.

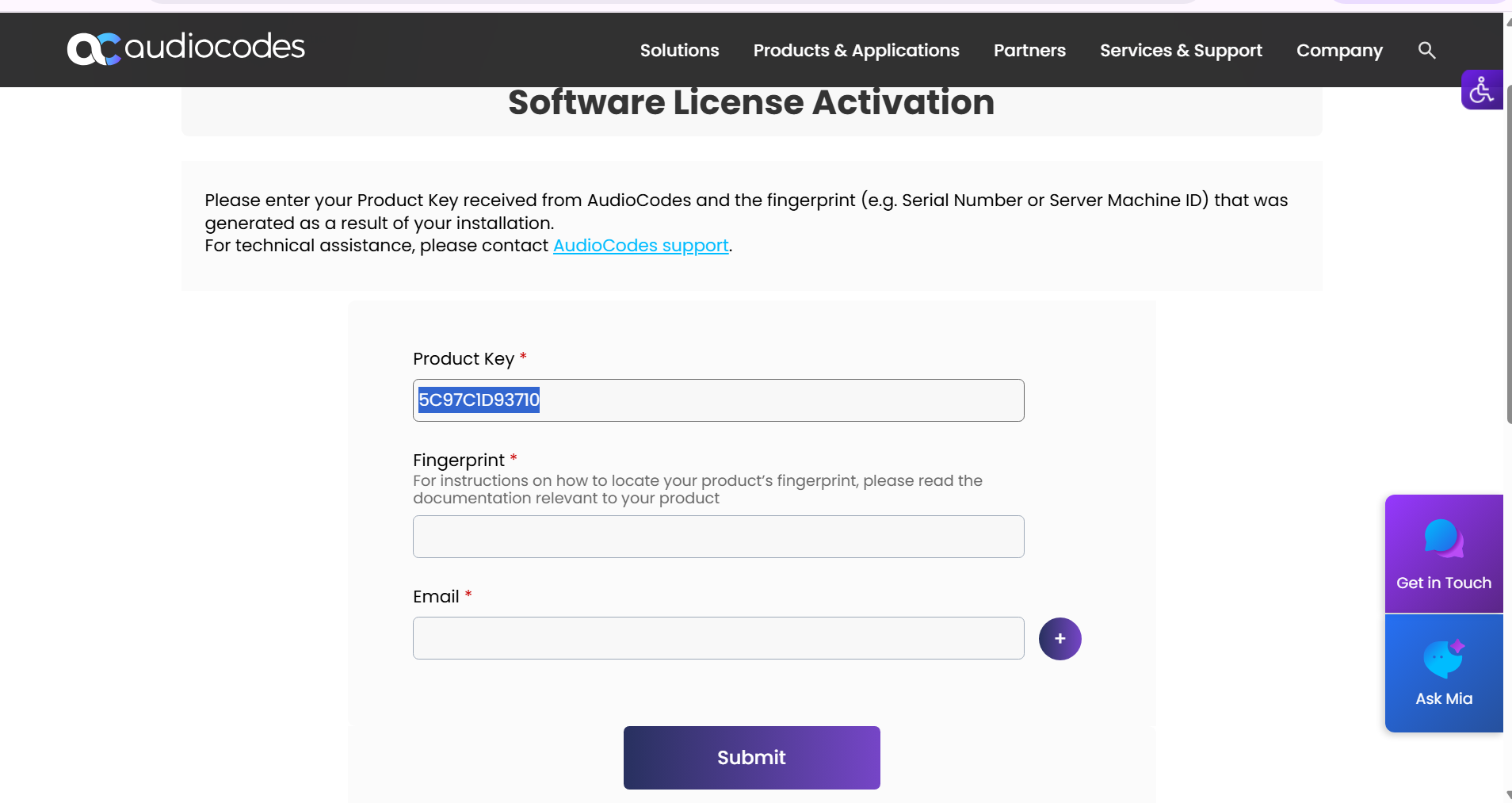

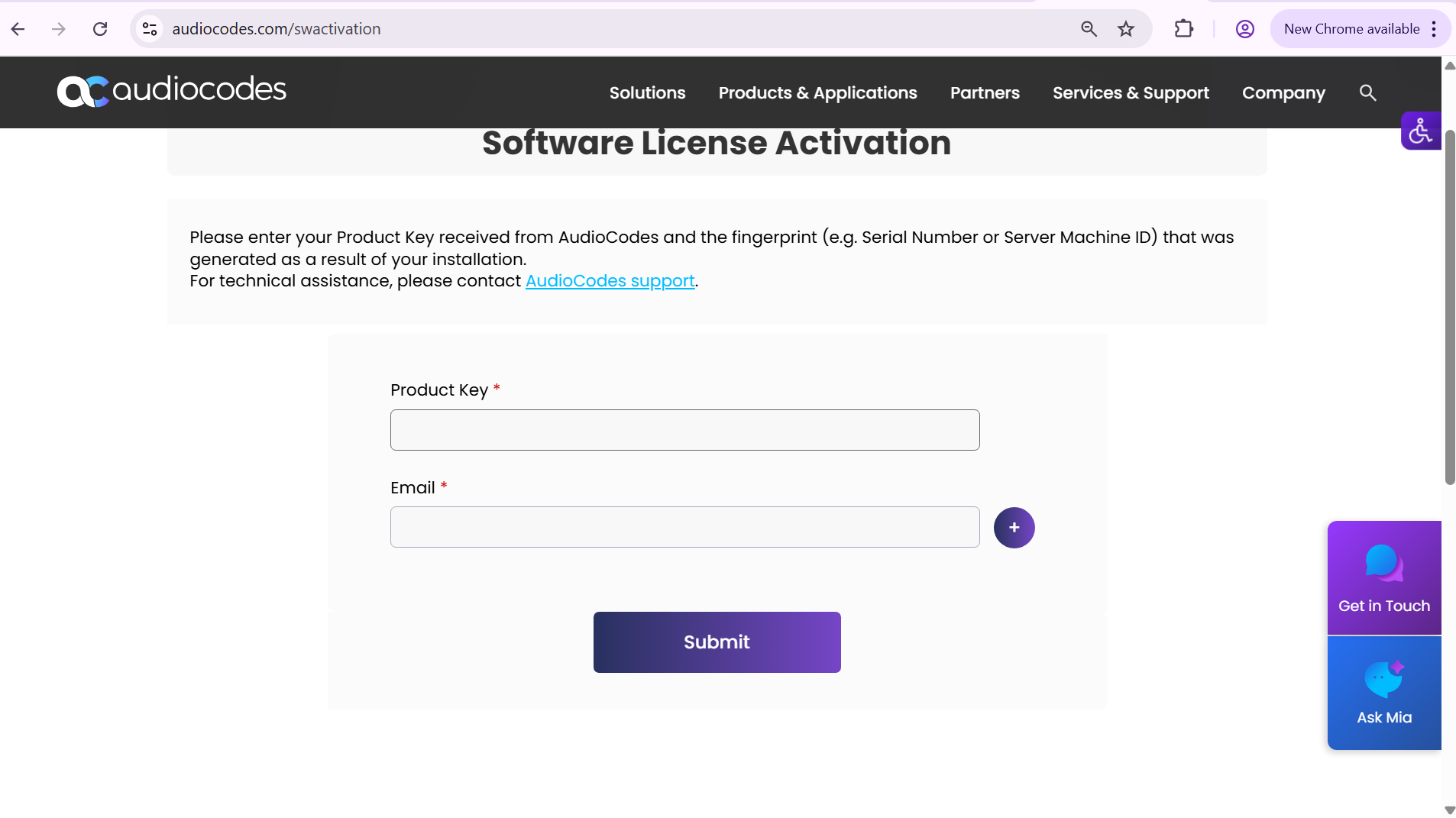

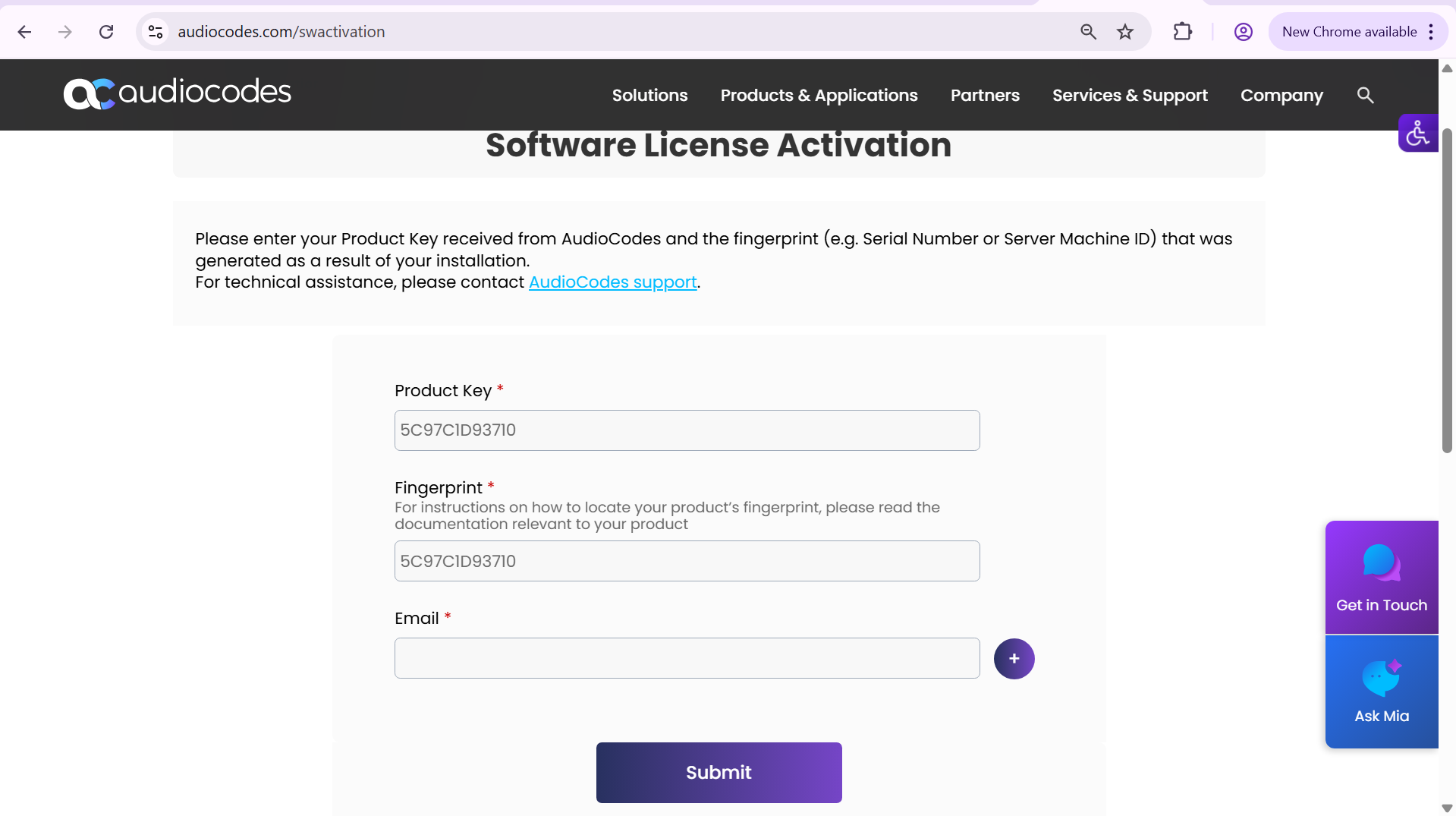

To obtain a valid license for your OVOC server License you should activate your product through License Activation tool at htttp://www.AudioCodes.com/swactivation. .

You will need your Product Key (see below) and the Server Machine ID (see below) for this activation process:

■ ProductKey: the Product Key string is used in the customer order for upgrading the OVOC product. For more information, contact your AudioCodes partner.

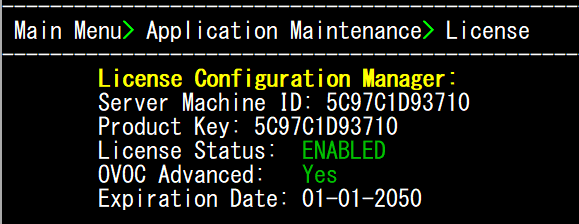

■ Machine ID: indicates the OVOC Machine ID that should be taken from the server as shown in the screen below (enter this ID in the Fingerprint field in the Activation form). This ID is also used in the customer order process when the product key is not known (for more information contact your AudioCodes representative).
■ License Status: indicates whether the OVOC license is enabled (OVOC License below).
■ OVOC Advanced: indicates whether the Voice Quality license is enabled (default-no). When this parameter is set to default, the followingVoice Quality feature licenses are available:
● Total Devices = 2
● Total Endpoints = 10
● Total Sessions = 10
● Total Users = 10

When set to Yes, the above parameters can be configured according to the number of purchased licenses

■ Expiration Date: indicates the expiration date of the OVOC time license. By default, this field displays 'Unlimited' ( below).

The time zone is determined by the configured date and time in the Date & Time menu (Timezone Settings).

● When you order AudioCodes devices (MediantSBC and MediantGateway AudioCodes products), ensure that a valid feature key is enabled with the "OVOC" parameter for those devices that you wish to manage. Note that this feature key is a separate license to the OVOC server license.

● Licenses can be allocated to Tenants in the OVOC Web according to the license parameters displayed in the License screen (see example in OVOC License).
