Viewing Active Web Interface and CLI Users

You can view all users that are currently logged in to the device's Web interface (or REST API) and CLI.

➢

To view active users:

■

Open the Active Users page (Setup menu > Administration tab > Web & CLI folder > Active Users).

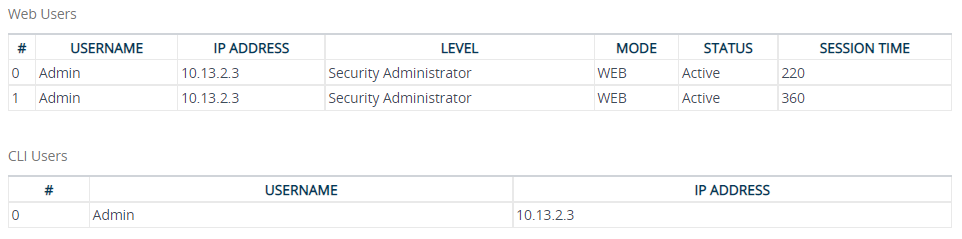

The Active Users table is described below:

Parameter

Description

Web Users

'Username'

Displays the user's login username.

'IP Address'

Displays the IP address of the management station from where the user accessed the device's Web interface.

'Level'

Displays the user's privilege level (e.g., Security Administrator or Monitor).

'Mode'

Displays the method of how the user accessed the device:

■

"Web" = Accessed directly through the Web Login page or REST API.

■

"OSN" = Accessed from the OSN server.

■

"CCE" = Accessed from Cloud Connector Edition (CCE).

■

"OVOC" = Accessed from OVOC (Single-Sign On).

■

"OAUTH" = Accessed through OAuth-based login authentication (Azure AD).

'Status'

Displays the status of the user (always "Active").

'Session Time'

Displays the time remaining until the user's session expires due to inactivity in the Web interface and is logged out of the Web interface. To obtain the time in minutes, divide the displayed time by three.

The timer starts counting down whenever the user is inactive. As soon as the user becomes active, the timer resets to the full session inactivity time, configured by the 'Web Session Timeout' parameter in the Local Users table (see Configuring Management User Accounts).

CLI Users

'Username'

Displays the user's login username.

'IP Address'

Displays the IP address of the management station from where the user accessed the device's CLI.
