Viewing Status per Media Component on Cluster Manager

You can view status and various configuration information of each Media Component from the Cluster Manager.

➢ To view Media Component status and configuration information:
1. Open the Media Components table (Setup menu > IP Network tab > Media Cluster folder > Media Components).

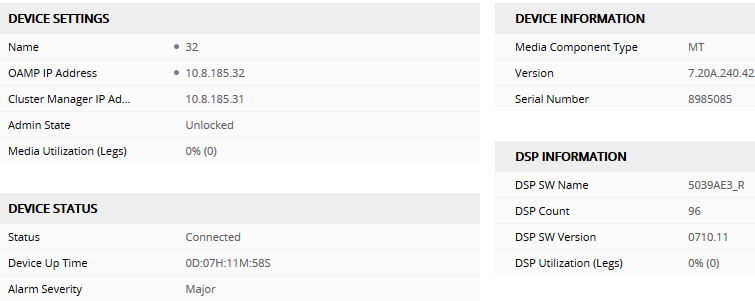

2. Select the required Media Component; the status and configuration information is displayed below the table, as shown in the example:

Viewing Media Component Status and Information

Media Component Status and Information in Media Components Table

Parameter

Description
Device Settings

Name

Displays the name of the Media Component.

OAMP IP Address

Displays the OAMP IP address of the Media Component.

Cluster Manager IP Address

Displays the IP address of the Custer Manager.

Admin State

Displays the administrative state of the Media Component, performed by the Cluster Manager:

    ■ "Unlocked": Media Component is currently unlocked.
    ■ "Locked": Cluster Manager has locked the Media Component.
    ■ "Locked before Reset": Media Component is currently locked as the Cluster Manager is initiating a restart on the Media Component.

Media Utilization (Legs)

Displays the percentage (%) of media (RTP/SRTP) capacity currently utilized on the Media Component. It also displays the utilization as a number of legs (ports).

For example, if the Media Component supports a maximum of 100 media sessions and 90 are currently in use, utilization is 90% and the number of legs is 180 (i.e., 2 legs per session).
Device Information

Media Component Type

Displays the Media Component type ("MC" or "vMC").

Version

Displays the software version currently running on the Media Component.

Serial Number

Displays the serial number of the Media Component.
DSP Information

DSP SW Name

Displays the DSP software name.

DSP Count

Displays the number of DSPs on the Media Component.

DSP SW Version

Displays the DSP software version running on the Media Component.

DSP Utilization (Legs)

Displays the percentage of DSP resources currently in use on the Media Component. For example, if the DSP resources on the Media Component supports a maximum of 100 AMR-to-G.711 transcoding sessions and only 60 transcoding sessions are currently being processed, DSP utilization is 60% and the number of legs is 120.
Device Status

Status

Displays the status of the Media Component:

    ■ "Connecting": Cluster Manager is trying to connect to Media Component.
    ■ "Connected": Cluster Manager is connected to Media Component.
    ■ "Reset in Progress": The Media Component is currently restarting, initiated by the Cluster Manager.
    ■ "Waiting to Reconnect": Cluster Manager is waiting to connect to Media Component after a restart.
    ■ "Lock in Progress": DSP channels are blocked and waiting for all active channels to be transferred or closed after timeout.
    ■ "Locked": Cluster Manager is connected to Media Component, but Media Component is locked.
    ■ "Disconnected": Cluster Manager has lost connectivity with Media Component (Media or Control) and retrying to connect.
    ■ "Hardware Failure": Media Component has a critical hardware failure due to high temperature (overheating).
    ■ "Software Upgrade": Cluster Manager is loading a software version file to Media Component.
    ■ "Software Upgrade Failure": Cluster Manager is unable to load software version or Auxiliary file (CPT or PRT) to Media Component.

Device Up Time

Displays the duration that the Media Component is operational after a restart. The duration is displayed in the syntax DD:HH:MM:SS.

The duration resets when the Media Component restarts.

Alarm Severity

Displays the highest severity of all currently raised SNMP alarms.

    ■ "None": No alarms raised
    ■ "Minor": Highest alarm severity raised is a Minor alarm.
    ■ "Major": Highest alarm severity raised is a Major alarm.
    ■ "Critical": Highest alarm severity raised is a Critical alarm.

Network Interface: Displays the IP network interfaces configured on the Media Component (in the IP Interfaces table).

Network Group: Displays the Ethernet Groups configured on the Media Component (in the Ethernet Groups table).
