Configuring WAN IP Address
The WAN Interface page lets you configure IPv4 or IPv6 WAN interfaces.
For MP-524 and MP-532, you can configure a secondary WAN interface for WAN link redundancy.
|
➢
|
To configure WAN address: |
|
1.
|
Open the WAN Interface page (Setup menu > IP Network tab > Core Entities folder > WAN Interface). |
|
2.
|
IPv4: Under the IPv4 WAN Settings group, from the 'IP Address Mode' drop-down list, select one of the following: |
|
◆
|

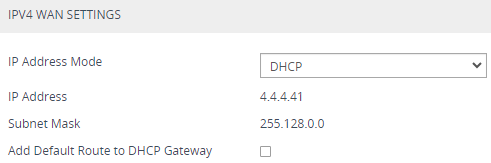

DHCP: Allows the device to receive the IP address of the WAN interface through DHCP. If you also want a default route, then click the 'Add Default Route to DHCP Gateway' check box. |
|
◆
|

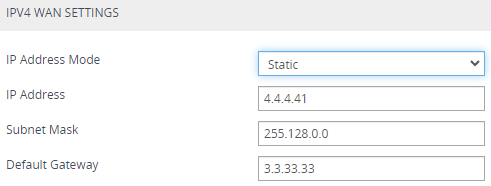

Static: Allows you to configure a static IP address for the WAN interface, using the 'IP Address', 'Subnet Mask' and 'Default Gateway' (optional) field: |
|
a.
|
Under the IPv6 WAN Settings group, from the 'Enabled' drop-down list, select Enable; fields for IPv6 WAN configuration appear. |
|
b.
|
From the 'Mode' drop-down list, select one of the following: |
|
◆
|
No IPv6 Address: IPv6 mode is enabled but IP address isn't configured. |
|
◆
|
DHCP: Allows the device to receive the IP address of the WAN interface through DHCP. If you also want a default route, then click the 'Add Default Route to DHCP Gateway' check box. |
|
◆
|
Static: Allows you to configure a static IP address for the WAN interface, using the 'IP Address', 'Subnet Mask' and 'Default Gateway' (optional) field. |
|
◆
|
SLAAC: DHCPv6 facilitates Prefix Delegation (PD), in which the device, as a DHCPv6 client, receives a prefix (on its WAN interface) for delegation and uses it to perform SLAAC connectivity on its LAN side (sending prefix in ICMPv6 Router Advertisement message). |
