Viewing WAN Information
The WAN Interface page displays information of the WAN interface.
|
➢
|
To view WAN information: |
|
1.
|
Open the WAN Interface page (Setup menu > IP Network tab > Core Entities folder > WAN Interface). |
|
2.
|

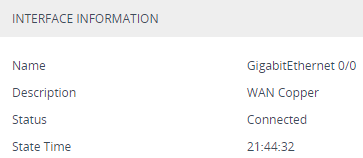

The Interface Information group displays the following information (read-only fields): |
|
●
|
'Name': Displays the name of the WAN interface. |
|
●
|
'Description': Displays a description (if configured) of the WAN interface. |
|
●
|
'Status': Displays the status of the WAN interface ("Connected" or "Disconnected"). |
|
●
|
'State Time': Displays the time since the WAN interface has been in the displayed status. |
The WAN Interface page is available only if you have configured the device to display various data-router configuration pages in the Web interface. For more information, see the [WebDataConfig] parameter.
