Reinstalling Device Software from an ISO Image
The device is pre-installed on the device’s server. In case a clean installation of the device’s software is required, you should download the latest installation image from the AudioCodes website and install the software from the iDRAC Virtual Media.
A clean installation deletes any user configuration, data or snapshots that were previously resident on the device.
| ➢ | To install Mediant SBC: |
| 1. | Download the latest ISO file containing the device's software from AudioCodes website. |
| 2. | In the iDRAC web management dashboard, start the Virtual Console. |
| 3. | In the Virtual Console menu, choose Virtual Media > Connect Virtual Media > Map CD/DVD > Choose File (see following figure). |
| 4. | Browse to the device's software ISO file that you downloaded from AudioCodes website, and then click Open. |
| 5. | Click Map Device. |
Mounting ISO Image from Virtual Console
| 6. | Click the Boot on the Virtual Console menu, and then choose Virtual CD/DVD/ISO: |
| 7. | Click the Power on the Virtual Console menu, and then choose Reset System (warm boot): |

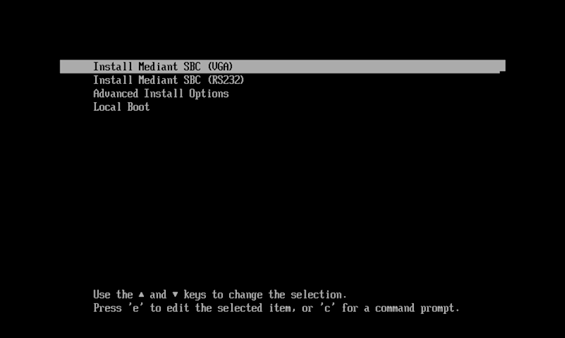

The server boots from the Virtual Console and then the Mediant SBC Installation Menu is displayed:
Installation Start Prompt:
| 8. | Press the ENTER key to Install Mediant SBC (VGA); installation commences from the ILO virtual drive. |
| 9. | Wait for the 'Complete' prompt. Installation takes approximately 40 minutes: |
| 10. | Press ENTER to reboot the server; after rebooting, the server boots from the local disk to the newly installed device software. |
