Create UCaaS Service Provider Tenant

Before you can onboard Webex Cloud Connect services, you must add a UCaaS Service provider entity to Live Platform under the Service Provider Live Platform tenant. Once this entity is added, you can add additional Webex Cloud Connect services and other service types (Zoom Provider Exchange, Live CX, and Live UC) under the same UCaaS Service provider.

➢

Do the following:

1.

In the Services page, from the Add Service drop-down, choose Add Service > Webex Cloud Connect.

2.

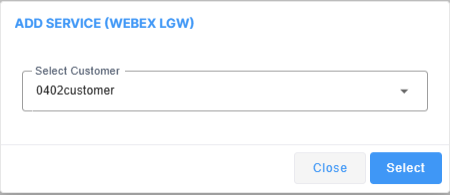

From the drop-down, select the relevant customer.

3.

Define a name for the UCaaS service provider; verify that the configured name matches the provider name defined in the provider URL path used to connect to the UCaaS server instance. Where <ucaasurl>/<serviceprovidername>:

●

<ucaasurl> is the URL of the UCaaS server instance

●

<serviceprovidername> is the service provider name as defined in Webex Cloud Connect

4.

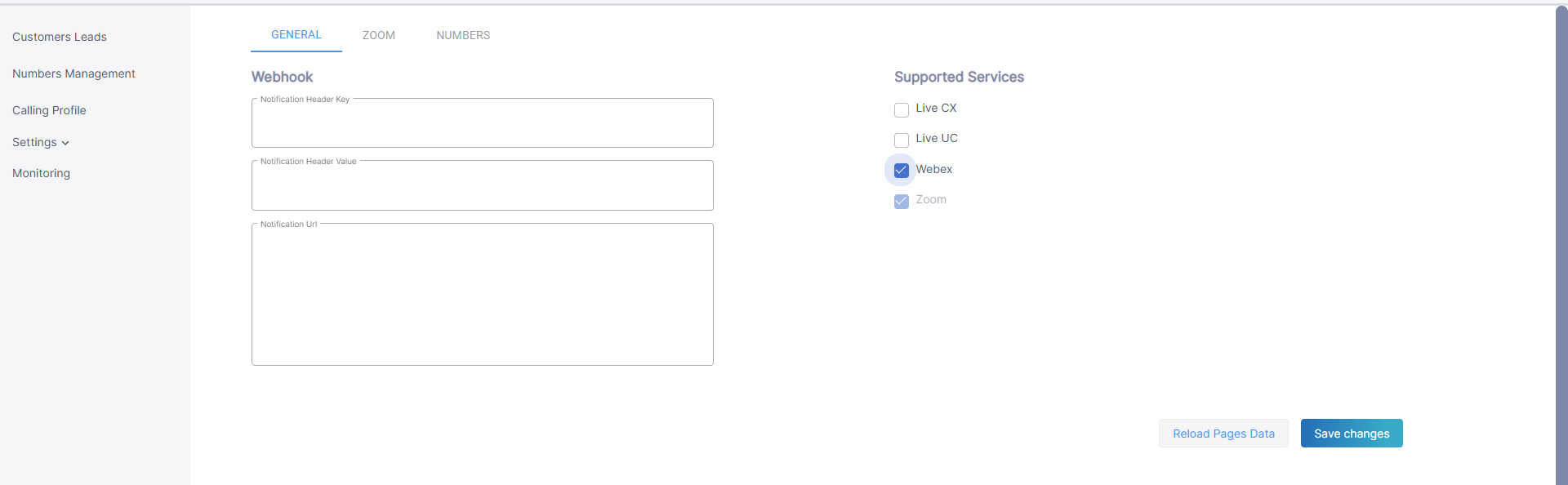

Click Submit provider name; the Service portal Settings page opens.

5.

Under Supported Services, select Webex Cloud Connect and then click Save Changes. You can also click Reload Pages Data to refresh the page for the specific UCaaS service provider configuration.

6.

Configure parameters according to the table below and then click Save changes.

7.

Click Reload Pages Data to refresh the page for the specific UCaaS service provider configuration.

Parameter	Description
Notification Header Key	Header authentication key (header key: runkey) to connect to the destination address.
Notification Header Value	The passkey in the Header Value.
Show Dialplan Check box	Shows or hides the Use SBC Dialplan check box in the Upload Number dialog box.
Notification URL	The destination URL for the HTTP POST.
Reload Pages Data button	Click to refresh the page.
Supported Services	Select "Webex"

The Webex tab is displayed.

8.

Configure parameters according to the table below and then click Save Changes.

Parameter	Description
Connectivity Type	Choose one of the following options: ■ Peering: Connect calls using the Service Provider SBC. For this configuration, customers can only Calling Profiles and cannot configure SIP Connections and SBC Scripts. ■ BYOC: Connect calls using the dedicated customer SBC. For this configuration, customers can configure SIP Connections, SBC Scripts and Calling Profiles.
Regions	From the drop-down, choose the relevant region: ■ US ■ EU ■ AP
Supported Cloud Connected PSTN Carrier (Read-only)	Information message regarding the availability of AudioCodes validated PSTN Carriers.
App Registration used for customer and number management
Webex App Integration Client ID	The Client ID of the Webex App Integration.
Webex App Integration Secret	The Secret of the Webex App Integration.
Webex App Integration Scope	spark-admin:locations_read spark:kms spark-admin:telephony_pstn_read spark-admin:telephony_config_write spark-admin:telephony_config_read identity:people_read

9.

Click the Numbers tab, configure parameters according to the table below, and then click Save Changes.

Parameter	Description
Numbers
Default CAC Value	Enter the Default CAC value for the Number type 'User'. Each number uploaded to Live Platform with Number type 'User' inherits this value (read-only).
Show Dialplan Check box	Shows or hides the 'Use SBC Dialplan' check box in the Upload Number dialog box.
