Add Media IP SIP Connection
The Media IP SIP Connection lets you monitor call data traversing specific Media IP addresses configured on the SBC device.
Ensure that the SBC device attached to the LiveOps 360 Management service is connected to Live Platform portal and has been properly configured.
| ➢ | Do the following: |

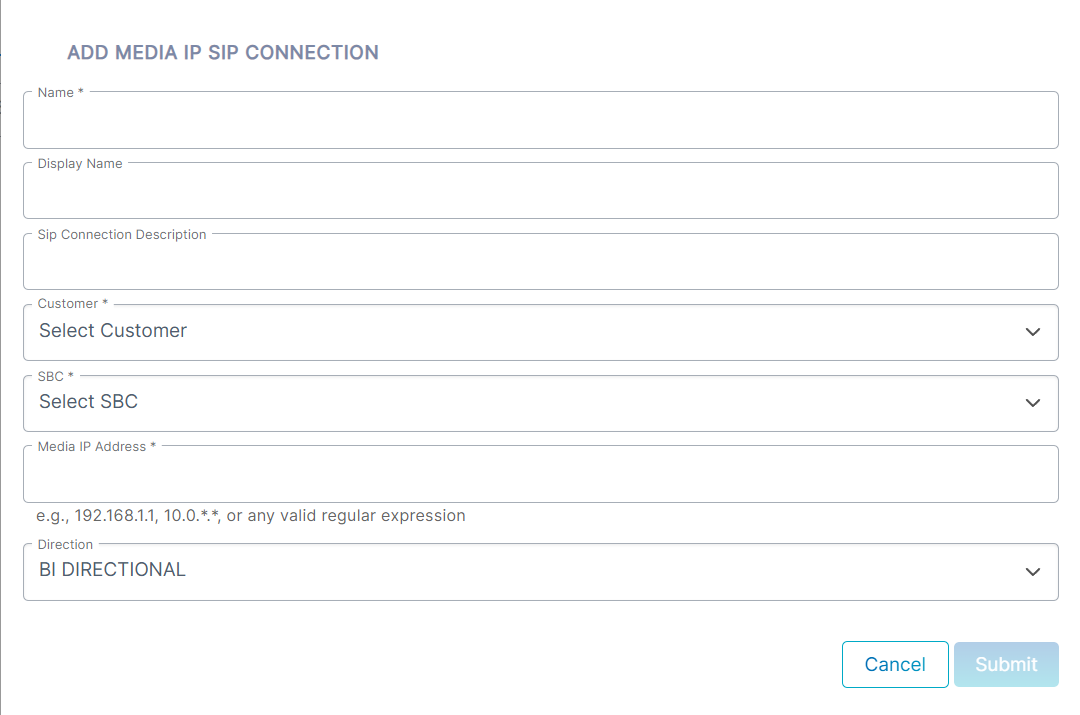

| 1. | From the Add SIP Connection drop-down, choose Media IP. |

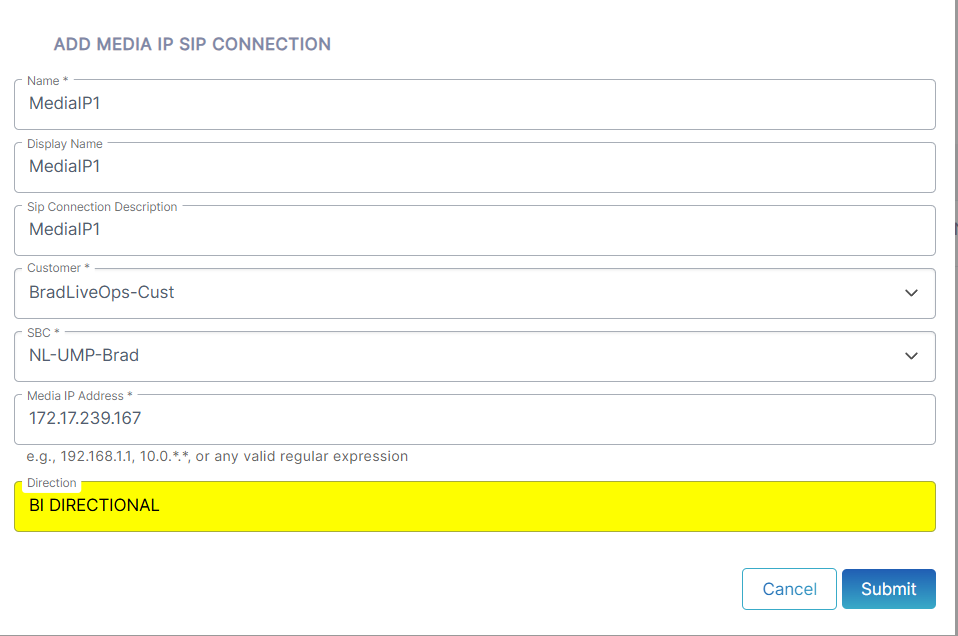

| 2. | Configure parameters according to the table below and then click Submit. |
|
Parameter |
Description |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
Name |
Name of the SIP connection. |
|||||||||
|
Display Name |
Display name when choosing the connection from the drop-down configuration . |
|||||||||
|
SIP Connection Description |
Brief description of the connection. |
|||||||||
|
Customer |
From the drop-down list, select the customer to attach to the connection. |
|||||||||
|
SBC |
From the drop-down list, select the SBC device to attach to the connection. |
|||||||||
|
Media IP Address |
Defines a valid IP address on which SIP media messages (voice/fax) are originated. |
|||||||||
|
Direction |
Indicates the direction of the call traffic managed by the SIP Connection.
|
