Add Media Realm SIP Connection

The Media Realm SIP Connection lets you monitor call data traversing specific Media Realms configured on the SBC device.

➢

Do the following:

1.

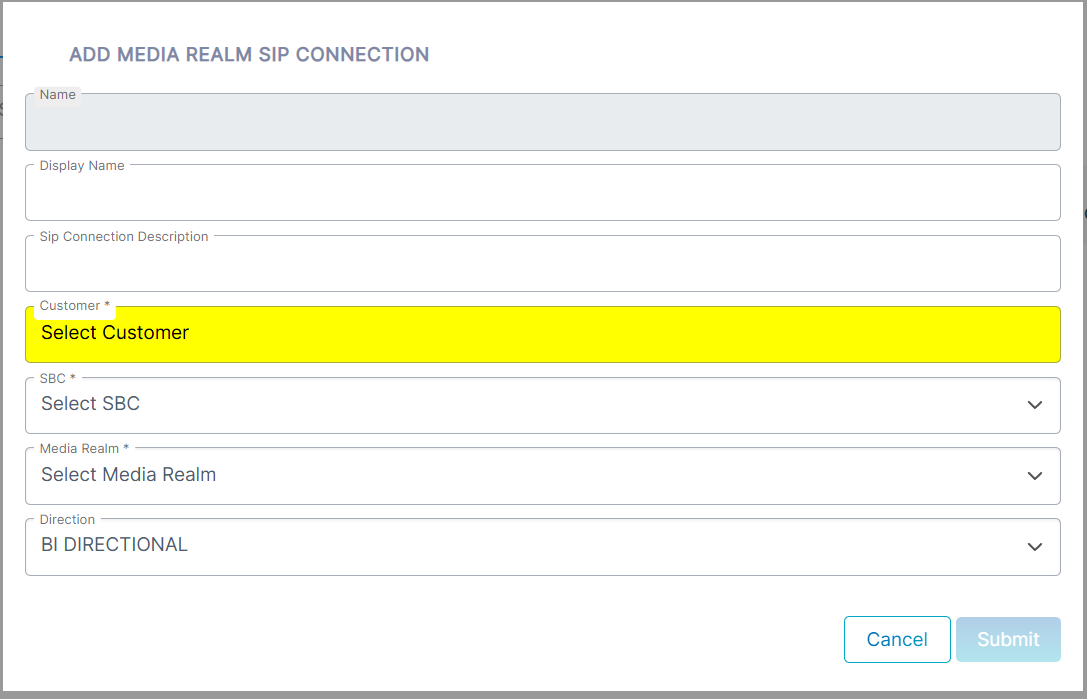

From the Add SIP Connection drop-down, choose Media Realm.

2.

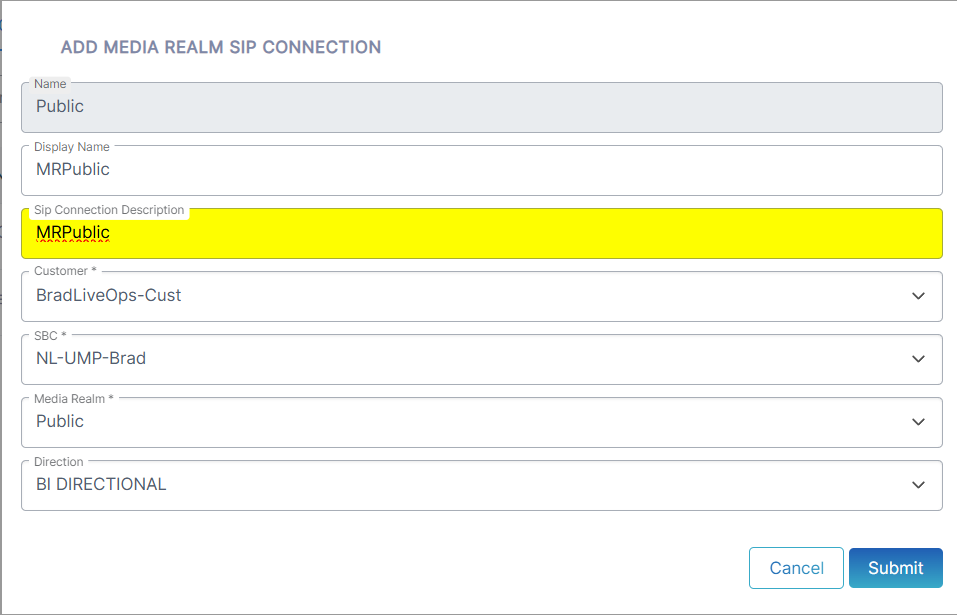

Configure parameters according to the table below and then click Submit.

Parameter	Description
Name	Name of the SIP connection.
Display Name	Display name when choosing the connection from the drop-down configuration .
SIP Connection Description	Brief description of the connection.
Customer	From the drop-down list, select the customer to attach to the connection.
SBC	From the drop-down list, select the SBC device to attach to the connection.
Media Realm	From the drop-down list, configure the source device Media Realm index (a list of options may be available).
Direction	Indicates the direction of the call traffic managed by the SIP Connection. ■ Bi Directional: Connection manages both calls incoming to the configured SBC device (see "SBC" above) and calls outgoing from the reporting device. ■ Ingress: Connection manages calls incoming to the reporting SBC device (see "SBC" above). ■ Egress: Connection monitors calls outgoing from the reporting SBC device (see "SBC" above).

A confirmation message is displayed upon successful creation of the service and the details of the new connection are displayed.
