Add Phone Prefix SIP Connection

The Phone Prefix SIP connections lets you monitor call data traversing specific phone prefixes configured on the SBC device.

Ensure that the SBC device attached to the LiveOps 360 Management service is connected to Live Platform portal and has been properly configured.

➢ Do the following:

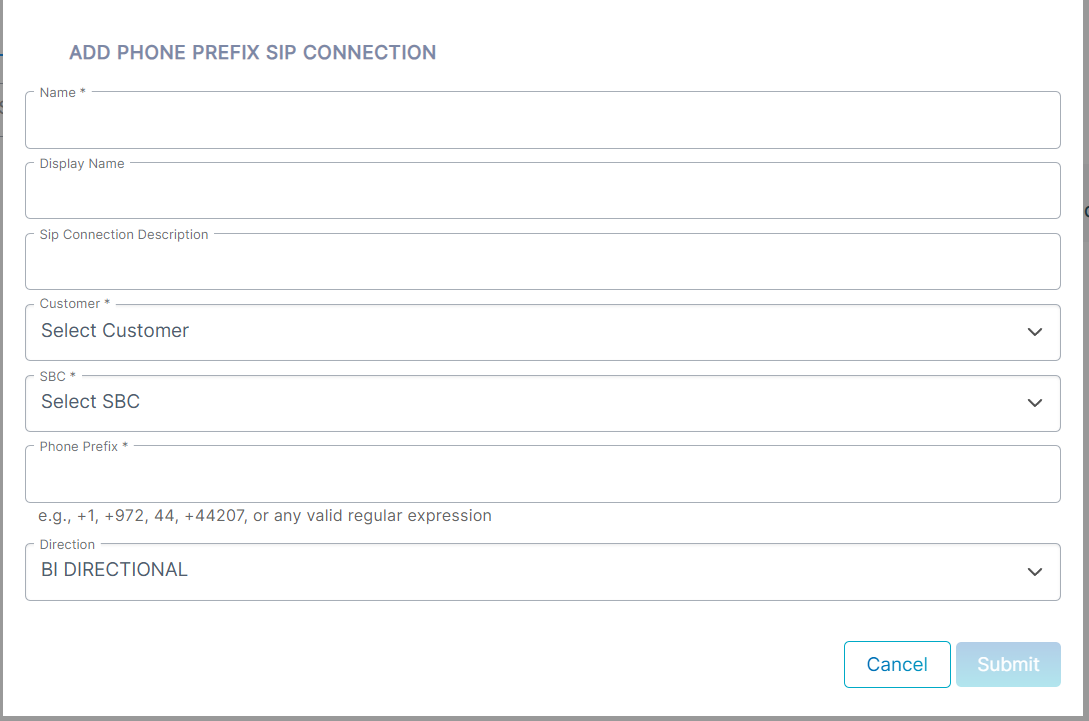

1. From the Add SIP Connection drop-down, choose Phone Prefix.

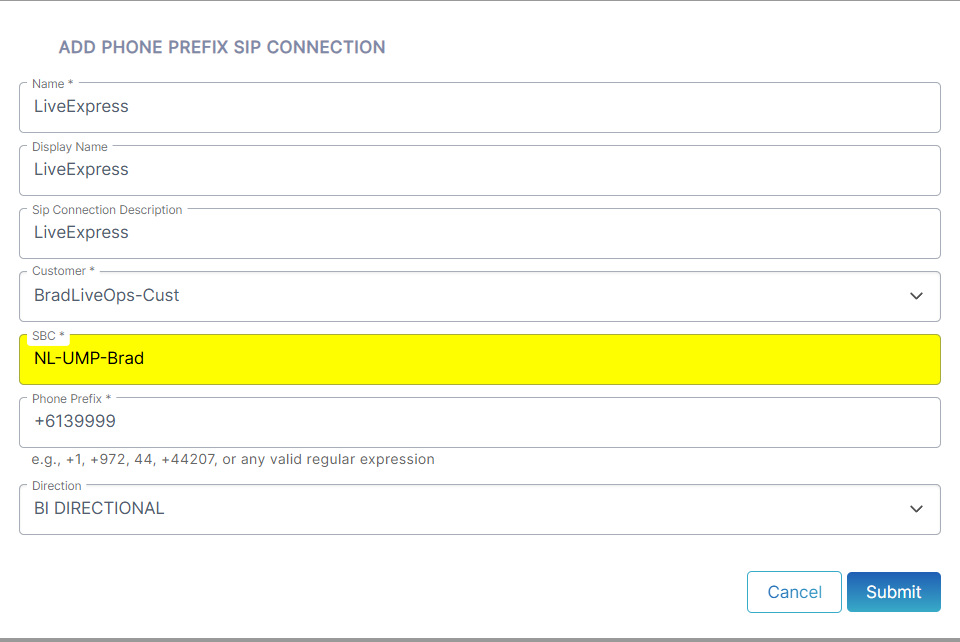

2. Configure parameters according to the table below and then click Submit.

Parameter

Description

Name

Name of the SIP connection.

Display Name

Display name when choosing the connection from the drop-down configuration .

SIP Connection Description

Brief description of the connection.

Customer

From the drop-down list, select the customer to attach to the connection.

SBC

From the drop-down list, select the SBC device to attach to the connection.

Phone Prefix

Enter the valid phone number, prefix or regular expression with comma separation. All full numbers should be configured in E.164 format with the following validation rules:

■ A + sign
■ Country calling code (international)
■ Local area code
■ Local telephone number or subscriber number.

The number has the following structure: [+][country code][area code][subscriber number].

Example United States Telephone number: +12127881500

■ Country code: 1
■ Area code: 212
■ Subscriber number: 7881500

Direction
■ Bi Directional
■ Ingress
■ Egress

A confirmation message is displayed upon successful creation of the service and the details of the new connection are displayed.
